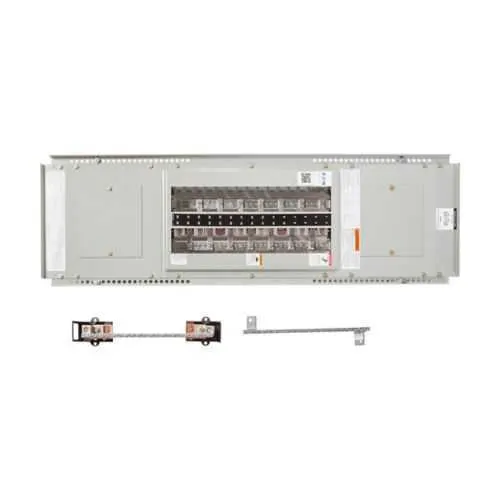

Eaton PRL1X3225X42AS Panelboard for Interior 225 A - UL 67

Interior panelboard design with 42 circuits and a 225 A rating delivers high-density low-voltage power distribution for control panels and machine rooms. The business impact is clear: you gain circuit density in a single enclosure, cutting the number of feed-throughs, reducing wiring complexity, and saving panel space on the shop floor. The PRL1X3225X42AS supports 120/208 V three-phase four-wire systems, enabling a flexible solution for mixed loads across equipment and instrumentation cabinets. This combination is well-suited to lean manufacturing environments where uptime and compact layouts are critical; it also simplifies future expansion without swapping larger gear. Aluminum bus construction lowers weight and improves field handling during installation and service. The aluminum bus carries current efficiently while resisting corrosion, contributing to longer life in indoor environments and reducing thermal stress during startup. UL 67 certification and NEMA compliance provide regulatory assurance for electrical installations, supporting safer operations and smoother audits. The panel's interior design promotes clean wiring practices, improved heat management, and reliable performance under peak loads. With a footprint of 43.75 in length, 6.5 in height, and 18.25 in width and a shipping weight of 29 lb, planning and mounting are straightforward in standard interior enclosures. The predictable dimensions simplify integration with existing equipment racks and reduce installation time. Procurement is accelerated by the Pow-R-Xpress stocking program, helping minimize downtime on critical lines. Combined with 225 A and 42 circuits, the PRL1X3225X42AS delivers scalable, compliant power distribution for evolving industrial facilities and commercial applications.
