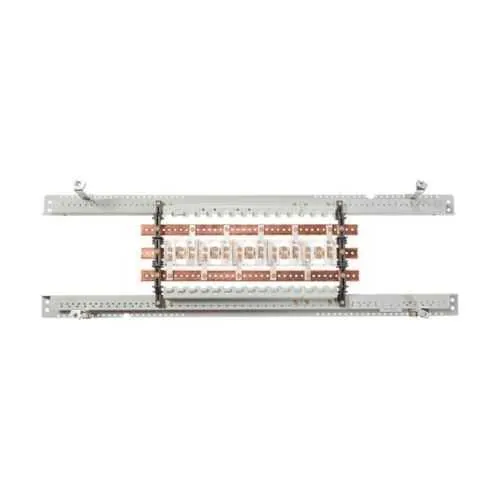

Eaton PRL1X3225X42C Panelboard - UL 67 Certified
Part Number: PRL1X3225X42C
Quick Summary
Eaton PRL1X3225X42C panelboard powers reliable interior distribution for 120/208V, 3P 4W applications. This solution addresses the common pain point of space constraints and wiring complexity during panel upgrades by delivering a compact footprint and streamlined field wiring. UL 67 certification, NEMA compliance, and the copper bus construction collectively enhance safety and reliability, while its 42-circuit capacity supports scalable control systems. As a Pow-R-Xpress interior panel, it delivers fast installation, predictable performance, and long-term value for machine builders and electrical distributors alike.
Product Information
Extended Description
PRL1X3225X42C Eaton: Eaton PRL1X INTERIOR 120/208 3P 4W 225A 42 CKT CU BUS
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL1X3225X42C
UPC
786689363178
Product Length/Depth
49 in
Product Height
6 in
Product Width
15 in
Product Weight
112 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Number of circuits
42
Type
PRL1X INTERIOR
Amperage Rating
225 A
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL1X3225X42C
Feature: Amperage Rating of 225 A → Business Impact: Supports heavy-load distribution with reduced feeder complexity, enabling reliable power for critical machinery. Application: Industrial automation panels and large machine controls. Feature: 42 circuits → Business Impact: High-density circuit capacity minimizes panel count and footprint, lowering installation time and space requirements. Application: Complex control panels and process lines. Feature: Copper bus material → Business Impact: Improves electrical conductivity, reduces voltage drop, and enhances reliability over the life of the panel. Application: Long run feeders and high-current applications. Feature: Interior 49 in length, 15 in width, 6 in height → Business Impact: Compact footprint supports tighter enclosures while maintaining accessibility for wiring and labeling. Application: Space-constrained electrical rooms and retrofit projects. Feature: Compliance and Certifications (NEMA Compliant, UL 67) → Business Impact: Ensures code compliance, safety, and market readiness across industrial environments. Application: Commercial and industrial installations requiring regulatory adherence. Feature: Pow-R-Xpress compatibility and 112 lb enclosure → Business Impact: Fast procurement via stocking program and robust, durable enclosure that withstands field service conditions. Application: Retail, distribution, and OEM panel assemblies.
Get a Quick Quote for a Eaton PRL1X3225X42C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL1X3225X42C?
Enquire Now
FAQs
PRL1X3225X42C is designed for interior panel installations in standard electrical enclosures used for 120/208V, 3P 4W systems. Its 49 in depth and 15 in width fit typical panel enclosures, and copper bus construction supports reliable, long-term performance with straightforward wiring and labeling.
The panelboard supports 42 circuits with a 225 A amperage rating, enabling dense, centralized distribution for complex control systems while maintaining compatibility with common feeder and protective device arrangements.
Yes. It is UL 67 certified and NEMA Compliant, ensuring alignment with safety and performance requirements for commercial and industrial panelboard installations.
It integrates with Eaton’s Pow-R-Xpress stocking program, promoting rapid procurement and faster commissioning. The interior design, copper bus, and documented dimensions simplify field wiring and reduce project lead times.
Its robust copper bus and solid UL 67/NEMA compliance deliver dependable operation with extended service life, reducing downtime. The compact footprint and high circuit density translate to lower enclosure footprint and potential cost savings on installation and future expansions.
