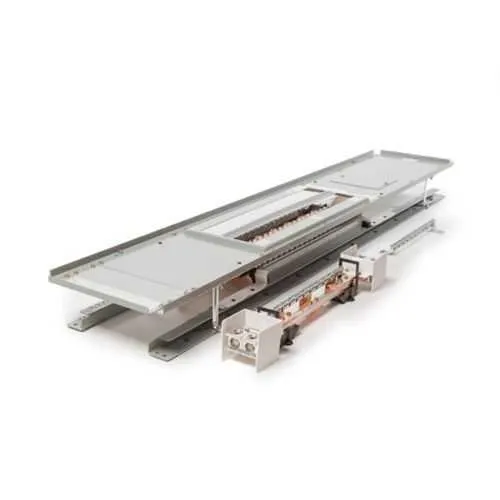

Eaton PRL1X3225X60AS Panelboard UL 67 Certified
Part Number: PRL1X3225X60AS
Quick Summary
The PRL1X3225X60AS panelboard delivers reliable power distribution for commercial and industrial electrical rooms. In space-constrained racks, wiring complexity and downtime can drive service delays and maintenance costs. UL 67 listed and NEMA compliant, it blends rugged aluminum bus with a proven interior design for safe, code-aligned installations. As part of Eaton's Pow-R-Xpress family, it offers a scalable, ready-to-assemble solution that reduces procurement time and supports common 120/208V loads while delivering long-term reliability.
Product Information
Extended Description
PRL1X3225X60AS Eaton: Eaton Pow-R-Xpress PRL1X INTERIOR, 120/208V, 3PH 4W, 225A, 60 CKT, AL BUS, SHORT INTERIOR
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL1X3225X60AS
UPC
786689671570
Product Length/Depth
49 in
Product Height
6.5 in
Product Width
8.5 in
Product Weight
77 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Type
PRL1X INTERIOR
Amperage Rating
225 A
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL1X3225X60AS
Interior PRL1X design provides a compact footprint that frees valuable wall space while maintaining full 60-circuit capacity. This enables faster installation and easier future expansion in data centers, manufacturing floors, and service rooms. The panel supports 225 A distribution, enabling efficient handling of larger loads without oversizing infrastructure. With 120/208V 3-phase 4-wire input, it accommodates a wide range of lighting, motor, and control gear common in commercial facilities. Aluminum bus material reduces weight and improves corrosion resistance, simplifying field modifications and long-term durability. The UL 67 listing and NEMA compliance deliver confidence in safety and regulatory alignment for critical installations. Dimensions of 49 in length, 8.5 in width, and 6.5 in height, at 77 lb, balance space efficiency with robust performance for retrofit projects and new builds. Official Pow-R-Xpress compatibility supports rapid procurement and streamlined stocking programs, lowering total cost of ownership in engineering projects.
Get a Quick Quote for a Eaton PRL1X3225X60AS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL1X3225X60AS?
Enquire Now
FAQs
The PRL1X3225X60AS is designed for interior power distribution in commercial and light-industrial spaces. It supports 120/208V, 3-phase, 4-wire systems and provides 60 circuit capacity with a 225 A rating. Its aluminum bus and compact interior form factor make it ideal for electrical rooms, service entrances, and equipment enclosures where space is at a premium.
Key specs include a 225 A amperage rating, 60 circuits, 120/208V input, and 3-phase 4-wire configuration. The unit uses an aluminum bus, measures 49 inches long, 8.5 inches wide, and 6.5 inches high, and weighs 77 pounds. It is UL 67 listed and NEMA compliant for safe, code-conforming operation.
Yes. Positioned within Eaton's Lighting & Emergency Systems category, this interior panelboard supports critical distribution for lighting and life-safety loads. Its UL 67 listing and NEMA compliance help ensure reliability and code compatibility for facility lighting, emergency circuits, and related control gear, while its 225 A capacity accommodates medium-scale systems.
The PRL1X3225X60AS carries UL 67 certification and is NEMA compliant. These certifications indicate adherence to established safety and performance standards for panelboards used in commercial and light-industrial facilities. This combination supports code compliance, safer field installations, and reduced risk during inspection processes.
Sourcing through the Pow-R-Xpress program can shorten lead times and simplify procurement through a standardized stock panelboard family. The interior design, 225 A capacity, and aluminum bus enable quicker installation, easier future expansion to 60 circuits, and reduced total cost of ownership due to fewer field modifications and improved reliability in critical electrical rooms.
