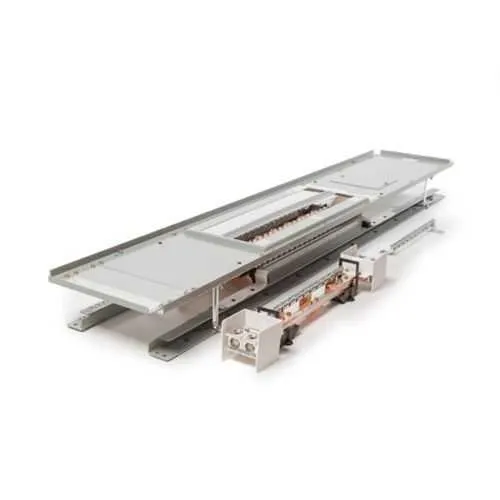

Eaton PRL1X3225X60CS Panelboard - UL 67, 225 A
Part Number: PRL1X3225X60CS
Quick Summary
The Eaton Pow-R-Xpress PRL1X3225X60CS panelboard is a compact interior distribution solution for 225 A, 3-phase 4-wire systems. Installers often face tight spaces, complex wiring, and long commissioning times that stall projects. UL 67 certification, NEMA compliance, and copper bus construction boost safety, reliability, and service life. This interior panelboard supports up to 60 circuits in a 120/208V, 3PH 4W setup, helping standardize installs and speed maintenance. By embracing proven Pow-R-Xpress design, it delivers predictable performance, simplifies procurement, and reduces total cost of ownership for commercial and light-industrial facilities. Its 49 inch length and copper bus architecture contribute to dependable distribution in constrained spaces.
Product Information
Extended Description
PRL1X3225X60CS Eaton: Eaton Pow-R-Xpress PRL1X INTERIOR, 120/208V, 3PH 4W, 225A, 60 CKT, CU BUS, SHORT INTERIOR
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL1X3225X60CS
UPC
786689671587
Product Length/Depth
49 in
Product Height
6.5 in
Product Width
8.5 in
Product Weight
87 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Type
PRL1X INTERIOR
Amperage Rating
225 A
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL1X3225X60CS
Feature: 225 A amperage rating matches typical feeder demands for mixed-use facilities. Business impact: minimizes the need for mid-cycle panel upgrades and reduces spare-part inventory while maintaining headroom for growth. Application: ideal for 120/208V, 3PH 4W distributions in commercial offices, light manufacturing floors, and data centers where reliability and future readiness matter. Feature: Interior PRL1X design configured for interior installation with compact footprint and 49 in length, 6.5 in height, and 8.5 in width. Business impact: streamlines installation and eases serviceability within constrained areas, reducing field labor and cabinet remodeling. Application: retrofit projects and new builds in spaces needing efficient use of space while maintaining scalable distribution. Feature: Copper bus material for low resistance and robust current sharing. Business impact: lowers heat rise, improves efficiency, and extends service life. Application: all interior distributions for 120/208V 3PH 4W loads that demand dependable performance. Feature: Compliance and certification highlights UL 67 and NEMA compliance. Business impact: supports code-adherent installations and reduces risk during inspections. Application: suitable for regulated facilities and environments emphasizing safety standards. Feature: Six-decade compatible footprint with 60 circuit capacity. Business impact: enables extensive circuit provisioning in a single cabinet, simplifying labeling and maintenance. Application: expanding commercial or light-industrial distribution without added enclosure complexity. Feature: Physical dimensions and weight provide a tangible footprint and weight for site planning. Business impact: aids floor loading calculations and transport logistics, ensuring proper siting. Application: installations where space planning and handling matter. Feature: Power distribution readiness with interior design and 120/208V 3PH 4W compatibility. Business impact: accelerates procurement and reduces risk by standardizing on a proven Eaton solution. Application: new builds and retrofit projects across diverse industrial and commercial settings.
Get a Quick Quote for a Eaton PRL1X3225X60CS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL1X3225X60CS?
Enquire Now
FAQs
This interior PRL1X panelboard is designed for 120/208V, 3PH 4W service with a 225 A rating and a 60-circuit capacity. It fits compact interior spaces and utilizes copper bus for efficient current distribution. When planning, account for its 49 in length, 8.5 in width, and 6.5 in height, along with a 87 lb weight for handling and mounting in standard enclosures.
Yes. The PRL1X3225X60CS is an interior 120/208V panelboard suitable for 3PH 4W service, making it compatible with common building loads including lighting and emergency circuits. Its UL 67 listing and NEMA-compliant enclosure help ensure safe integration with other power distribution components in retrofit or new-build projects.
The panelboard carries UL 67 certification, signaling compliance with safety requirements for interior power distribution. It is also NEMA compliant, ensuring the enclosure meets industry standards for protection and reliability. These certifications reduce risk during audits and inspections and help streamline procurement with confidence.
With a dense 60-circuit interior configuration and a copper bus design, the panelboard minimizes wiring complexity and voltage drop while enabling faster wiring and commissioning. The compact footprint supports easier routing in tight spaces, and its standardized Eaton Pow-R-Xpress lineage helps procurement teams source consistent, compatible components across projects.
Verify the amperage rating (225 A), circuit count (60), voltage (120/208V), phase/wiring (3PH 4W), bus material (copper), enclosure compliance (NEMA), and certification (UL 67). Confirm dimensions (49 in L, 8.5 in W, 6.5 in H) and weight (87 lb) to ensure proper fit and handling in the target space.
