Eaton PRL1X3400X42AD Pow-R-Xpress Panelboard - UL 67
Part Number: PRL1X3400X42AD
Quick Summary
Eaton Pow-R-Xpress PRL1X3400X42AD panelboard delivers compact, code-compliant power distribution for commercial and light industrial electrical rooms. Engineers often wrestle with space constraints, dense wiring, and field adaptation when upgrading legacy panels. UL 67 certification and NEMA compliance help streamline approvals, while the aluminum bus and 400 A capacity support robust, scalable performance. This design also integrates smoothly with Eaton’s Pow-R-Line Xpert family, enabling faster commissioning, reduced wiring length, and lower total installed cost through modular, density-optimized distribution.
Product Information
Extended Description

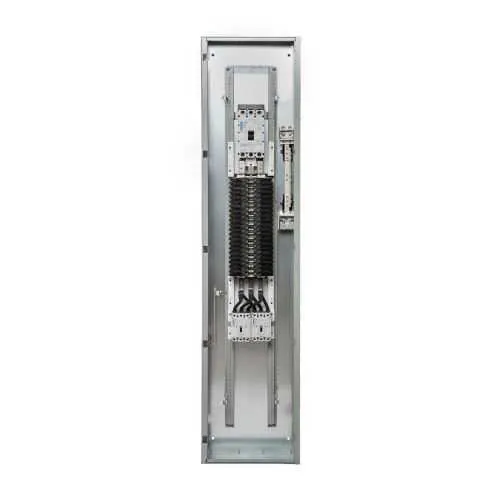

PRL1X3400X42AD Eaton: PRL1X 208/120 3P4W 400A 42CKT AL DENSITY RATED BUS WITH DUAL SFB PROVISION
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL1X3400X42AD
UPC
786689885533
Product Length/Depth
79 in
Product Height
3.75 in
Product Width
8.5 in
Product Weight
179.54 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Type
PRL1X INTERIOR
Amperage Rating
400A
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Line Xpert family overview
Feature: High-density interior with 42 circuits and a 208/120 V, 3P4W configuration. Business Impact: Maximizes panel footprint efficiency, enabling smaller electrical rooms and easier serviceability. Application: Ideal for commercial spaces and light industrial applications where space and ease of access matter. Feature: 400 A amperage rating with a 3P4W topology. Business Impact: Supports heavier load profiles and easier future expansion without swapping panels. Application: Suitable for main distribution and sub-feed scenarios in evolving facilities. Feature: Aluminum bus material and dense spacing with dual SFB provision. Business Impact: Improves durability, reduces weight, and enhances fault isolation and future expansion capability. Application: Fast-track installations with fewer hardware changes and scalable wiring layouts. Feature: NEMA Compliant and UL 67 certified. Business Impact: Simplifies regulatory approvals and customer acceptance, decreasing project risk. Application: Critical for code-compliant installations in the lighting and emergency systems sector. Feature: 79 in length, 8.5 in width, and 3.75 in height footprint with 42-circuit density. Business Impact: Predictable, standardized dimensions support modular layouts and faster commissioning. Application: Optimized for spaces requiring consistent enclosure planning and labeling efficiency.
Get a Quick Quote for a Eaton PRL1X3400X42AD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL1X3400X42AD?
Enquire Now
FAQs
Yes. The PRL1X3400X42AD is designed to fit within Eaton’s Pow-R-Xpress ecosystem and complements the Pow-R-Line Xpert family for fast commissioning. It supports standard 208/120 V 3P4W service, offers a dense 42-circuit interior, and leverages modular interior components, enabling seamless upgrades without replacing existing sub-feed arrangements. Ensure you verify enclosure dimensions and compatible bus kits during planning.
Key considerations include adequate enclosure space, mounting clearances, and proper wiring methods to handle 400 A service. The unit uses an aluminum bus for weight and durability advantages, so plan for compatible lugs, termination torque, and conductor sizing. The 79 in length and 8.5 in width define a standard footprint that supports predictable labeling and orderly cabling in commercial rooms.
With 42 circuits in a single interior, wiring density improves, reducing the number of enclosures required for a given load. This enables shorter feeder runs and simpler conductor routing. Labeling tasks are streamlined by consistent circuit arrangements and standardized documentation, which lowers commissioning time and minimizes field errors during testing and startup.
The PRL1X3400X42AD carries UL 67 certification for panelboard safety and is NEMA compliant, aligning with common electrical installation standards in commercial and industrial facilities. These certifications help simplify approvals with AHJs, support warranty validity, and reduce project risk by meeting recognized safety benchmarks.
The 400 A, 42-circuit interior panelboard delivers faster installation, reduced space, and scalable future expansion, which translates to lower labor costs and faster time-to-operation. Aluminum bus reduces weight and simplifies handling during installation. Ongoing maintenance is streamlined due to standardized components, clear labeling, and compatibility with Eaton’s quick-reference guides, helping facilities keep downtime to a minimum.
