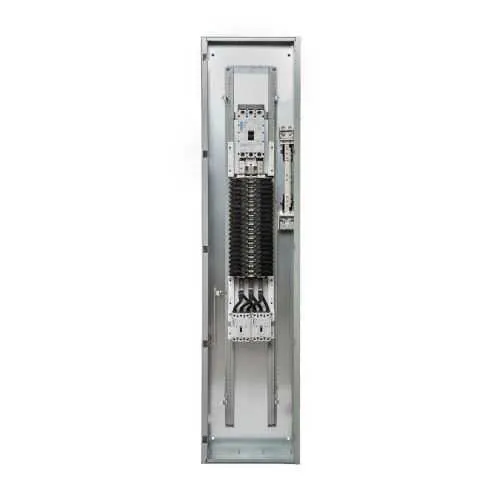

Eaton PRL1X3400X42CD Pow-R-Xpress Panelboard - UL 67 Certified
Part Number: PRL1X3400X42CD
Quick Summary
Eaton PRL1X3400X42CD Pow-R-Xpress panelboard distributes 208/120V, three-phase four-wire power for industrial and commercial applications. Facilities struggle with space, limited bus density, and upgrades during capacity expansion; this unit delivers 400A with 42 circuits in a compact footprint, reducing panel count and simplifying wiring. UL 67 listed and NEMA compliant support safety and code assurance, while copper bus minimizes resistance and enhances reliability under peak loads. Designed for quick installation in both retrofit and new-build projects, it enables scalable power distribution with predictable maintenance and lower lifecycle costs. This makes it well-suited for data centers, manufacturing floors, and large office campuses seeking dependable, space-efficient electrical infrastructure.
Product Information
Extended Description
PRL1X3400X42CD Eaton: PRL1X 208/120 3P4W 400A 42CKT CU DENSITY RATED BUS WITH DUAL SFB PROVISION
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL1X3400X42CD
UPC
786689885540
Product Length/Depth
79 in
Product Height
3.75 in
Product Width
8.5 in
Product Weight
184.54 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Type
PRL1X INTERIOR
Amperage Rating
400A
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Line Xpert family overview
Feature: 400A amperage rating and 42 circuit positions. Business Impact: Supports larger loads and reduces the number of feeders, lowering enclosure space needs and wiring complexity. Application: ideal for light industrial processes, data-center edge applications, and growing commercial facilities. Feature: Copper density-rated bus. Business Impact: Low resistance improves voltage regulation, fault-clearing performance, and overall efficiency. Application: critical loads and long feeder runs where low power loss matters. Feature: 208/120V, 3P4W configuration. Business Impact: Aligns with standard building power distributions, simplifying downstream device integration and panel-to-panel coordination. Application: commercial buildings and manufacturing floors. Feature: Dual SFB provision for future feeders. Business Impact: Enables scalable expansion without panel replacement, reducing future CAPEX. Application: facilities projecting capacity growth or phased build-outs. Feature: Compliance with UL 67 and NEMA standards. Business Impact: Ensures safety, regulatory alignment, and smoother inspections, minimizing project risk. Application: regulated environments and safety-conscious installations. Feature: Compact footprint with robust build (79 in L, 8.5 in W, 3.75 in H; 184.54 lb). Business Impact: Predictable mounting and stable support for heavy assemblies, aiding retrofit planning. Application: retrofit and new-construction projects where space is at a premium.
Get a Quick Quote for a Eaton PRL1X3400X42CD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL1X3400X42CD?
Enquire Now
FAQs
This panelboard occupies a compact footprint while delivering high circuit density—79 in length, 8.5 in width, and 3.75 in height—so planning for alignment with existing enclosures and proper clearance is essential. Its weight of approximately 184.54 lb means multiple installers or suitable lifting equipment may be required during retrofit or initial installation. Ensure downstream wiring paths are sized to support 400A service and that access for maintenance is preserved.
Yes. The PRL1X3400X42CD is designed for 208/120V, three-phase, four-wire applications and is rated for 400A with 42 circuit positions. This makes it well-suited for distributing power to commercial lighting, HVAC controls, and motor loads in mid-size facilities, while providing headroom for expansion and future feeders via the dual SFB provision.
The panelboard is UL 67 listed and NEMA compliant, providing safety assurances and alignment with standard electrical codes. These certifications simplify procurement for code-driven projects and support smoother regulatory inspections, reducing risk during commissioning and operation.
Yes. The design includes dual SFB provision, enabling future feeder additions without replacing the entire panelboard. This lowers lifecycle costs, supports phased capacity growth, and minimizes downtime during upgrades, which is especially beneficial for facilities planning multi-year expansion or modular expansions.
The copper bus provides lower electrical resistance, reducing voltage drop under heavy loads and improving fault current performance. This translates to improved reliability and efficiency, especially for dense circuit layouts and longer feeder runs, making it a durable choice for high-demand environments.
