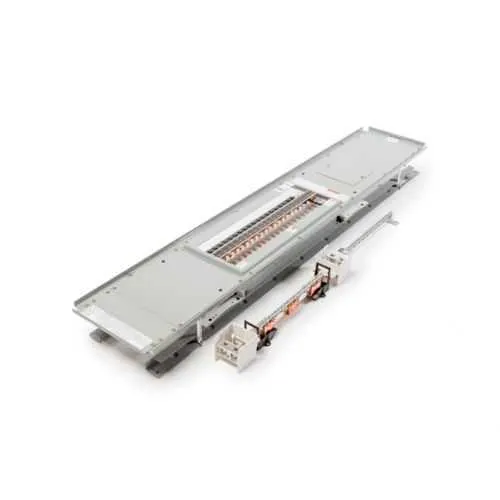

Eaton PRL1X3400X60AS Panelboard - UL 67
Part Number: PRL1X3400X60AS
Quick Summary
Eaton PRL1X3400X60AS panelboard is a compact interior power distributor designed for 120/208V, 3PH 4W systems. This solution addresses space constraints and wiring complexity common in electrical rooms, enabling faster installations and fewer field errors. With UL 67 certification and NEMA compliance, it meets essential safety and reliability standards for commercial and light-industrial applications. The design supports scalable circuit provisioning and efficient maintenance, delivering predictable performance while reducing total installed cost. Ideal for data centers, manufacturing floors, and campus facilities, it aligns with modern low-voltage distribution needs and procurement requirements.
Product Information
Extended Description
PRL1X3400X60AS Eaton: Eaton Pow-R-Xpress PRL1X INTERIOR, 120/208V, 3PH 4W, 400A, 60 CKT, AL BUS, SHORT INTERIOR
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL1X3400X60AS
UPC
786689671501
Product Length/Depth
61 in
Product Height
6.5 in
Product Width
8.5 in
Product Weight
98 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Type
PRL1X INTERIOR
Amperage Rating
400A
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL1X3400X60AS
Feature: 400A amperage rating and 60 circuits interior panelboard. Business Impact: Supports robust load distribution for mid-size facilities while preserving valuable floor space. Application: Commercial electrical rooms and light-industrial applications seeking scalable feeder capacity. The PRL1X3400X60AS enables efficient circuit provisioning and future expansion with minimal footprint. Feature: 120/208V, 3PH 4W configuration. Business Impact: Aligns with common facility architectures, reducing transformer requirements and wiring complexity. Application: Data centers, office campuses, and process lines that rely on standard low-voltage power profiles. This compatibility helps control costs and improve install times. Feature: Aluminum bus material. Business Impact: Lightweight yet durable bus systems improve handling during installation and service, lowering labor risk. Application: Environments where corrosion resistance and long service life are priorities, such as manufacturing floors and dusty spaces. Feature: Compact enclosure dimensions 61 in length, 8.5 in width, 6.5 in height with 98 lb weight. Business Impact: Easier manned access and improved room planning, enabling quicker retrofits and replacements. Application: Retrofit projects and new builds where footprint planning is critical. Feature: Compliance and Certification: UL 67 and NEMA compliance. Business Impact: Reduces regulatory risk, simplifies supplier audits, and accelerates project sign-offs. Application: Facilities subject to strict electrical safety standards and ongoing maintenance programs.
Get a Quick Quote for a Eaton PRL1X3400X60AS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL1X3400X60AS?
Enquire Now
FAQs
Plan for a dedicated interior enclosure space with 61 in L, 8.5 in W, and 6.5 in H to accommodate the 98 lb unit. Verify the 120/208V, 3PH 4W configuration and ensure proper clearances for service access. Use compatible lugs and bus connectors, and follow UL 67 mounting guidelines to ensure safe termination and compliant operation.
Key specs include 400A amperage rating, 60 circuits, 120/208V, 3-phase 4-wire, aluminum bus, 61 in length, 8.5 in width, 6.5 in height, and a weight of 98 lb. It is UL 67 certified and NEMA compliant, designed for interior low-voltage distribution in commercial and light-industrial environments.
Yes. The PRL1X3400X60AS is specifically configured for 120/208V, 3-phase, 4-wire systems, providing 400A distribution with an aluminum bus. Its interior design supports efficient wiring and scalable circuit count, making it appropriate for data centers, offices, and factory floors that rely on standard low-voltage distribution.
The panelboard carries UL 67 certification and is NEMA compliant. These certifications indicate tested electrical safety, reliability under load, and compatibility with standard industry practices, which simplifies compliance audits, reduces risk, and supports smoother project sign-offs in regulated environments.
The interior PRL1X3400X60AS reduces wiring complexity and speeds installation, which lowers labor costs and downtime during swaps or upgrades. Its durable aluminum bus and compliant construction help extend service life and reduce preventive maintenance, contributing to a favorable total cost of ownership in long-running facilities.
