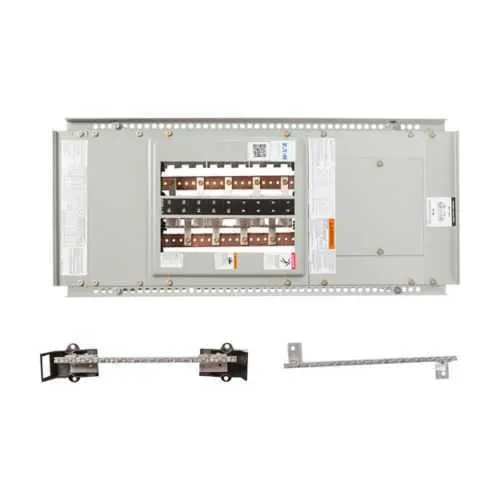

Eaton PRL2X3100X18C panelboard assembly - UL 67
Part Number: PRL2X3100X18C
Quick Summary
Eaton PRL2X3100X18C panelboard assembly is a compact interior distribution unit for 480/277V three-phase systems in commercial and light industrial facilities. Facilities often struggle with space constraints, complex wiring, and slow maintenance when upgrading distribution panels. This unit is UL 67 listed and NEMA-compliant, reinforcing safety and reliability, while copper bus and 18-circuit capacity support future expansion. As part of the Pow-R-Xpress family, it enables faster procurement and streamlined installation, delivering dependable performance with a clear return on investment for engineering and maintenance teams.
Product Information
Extended Description
PRL2X3100X18C Eaton: Eaton PRL2X INTERIOR 480/277 3P 4W 100A 18 CKT CU BUS
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3100X18C
UPC
786689363239
Product Length/Depth
32 in
Product Height
6.5 in
Product Width
18.5 in
Product Weight
21 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Number of circuits
18
Type
PRL2X INTERIOR
Amperage Rating
100A
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3100X18C
Feature: 480/277V, 3P, 4W interior panelboard with 100A rating and 18 circuits. Business Impact: Enables balanced load distribution and scalable distribution for equipment rooms and line-side distribution, reducing upgrade time and project risk. Application: Ideal for commercial spaces and light industrial facilities needing reliable 480/277V distribution without compromising space. Feature: Copper bus material. Business Impact: Lowers contact resistance, improves efficiency, and extends service life, reducing maintenance frequency and lifecycle costs. Application: Suitable for high-demand control panels and machine centers where conductivity matters. Feature: UL 67 listing and NEMA compliance. Business Impact: Supports code compliance during inspections and audits, minimizing rework and non-conformance penalties. Application: Required for regulated environments and new-build projects demanding established electrical standards. Feature: Compact footprint and measured dimensions. Business Impact: 32 in length, 18 in width, and 6.5 in height deliver a space-efficient solution that fits standard electrical rooms, speeding installation. Application: Retrofit or new installs where floor space and mounting clearances are tight. Feature: 18-circuit capacity with 21 lb weight. Business Impact: Provides room for expansion while keeping installation manageable, lowering handling risk on-site. Application: Ideal for scalable distribution in evolving facilities and equipment rooms. Feature: Pow-R-Xpress ecosystem compatibility. Business Impact: Facilitates fast procurement through stocking programs and access to related panelboard accessories, shortening project schedules. Application: Great for OEMs and service teams pursuing rapid deployment and standardized components.
Get a Quick Quote for a Eaton PRL2X3100X18C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3100X18C?
Enquire Now
FAQs
The PRL2X3100X18C is designed for interior mounting in typical electrical rooms with a 32 in length, 18 in width, and 6.5 in height footprint. It accepts standard interior panelboard practices and aligns with 480/277V 3P4W distribution requirements. Ensure adequate service clearance and access for wiring termination and routine maintenance, and verify compatibility with Pow-R-Xpress accessories for quick upgrades.
Key specs include 100A amperage rating, 480/277V operation, 3-phase 4-wire configuration, 18 circuits, and copper bus material. The unit is UL 67 listed and NEMA compliant, with dimensions of 32 in L x 18.5 in W x 6.5 in H and a weight of 21 lb, supporting reliable distribution in commercial environments.
Yes. The PRL2X3100X18C is designed for commercial and light industrial applications requiring efficient interior distribution of 480/277V three-phase power. Its 18-circuit capacity, copper bus, and UL/NEMA certifications make it well-suited for equipment rooms, switchgear upgrades, and new panel builds where space, reliability, and code compliance matter.
The panelboard carries UL 67 certification and is NEMA compliant, providing established safety and reliability benchmarks. These certifications support regulatory compliance, assist in passing audits, and minimize risk during commissioning and ongoing maintenance in regulated facilities.
With copper bus for lower resistance, a manageable 21 lb weight for easier handling, and compatibility with Pow-R-Xpress accessories, installation and future upgrades are faster and less labor-intensive. The 18 circuits allow staged expansion, reducing initial oversizing and supporting improved lifecycle cost of ownership through reliable performance and simplified maintenance.
