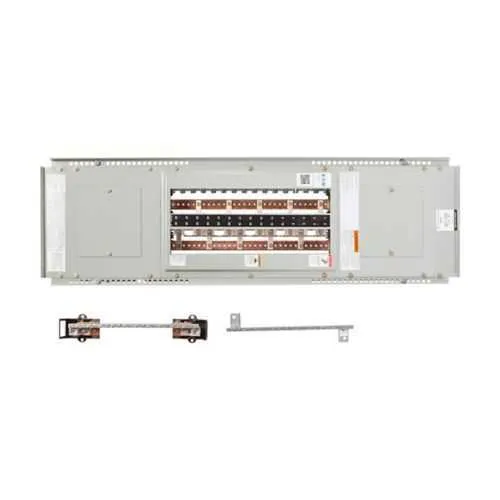

Eaton PRL2X3100X30C panelboard - UL 67
Part Number: PRL2X3100X30C
Quick Summary
The Eaton PRL2X3100X30C panelboard distributes 480/277 V power in commercial and light industrial spaces. It addresses the common challenge of fitting robust, code-compliant power distribution into limited electrical rooms without sacrificing access or safety. This solution carries UL 67 listing and NEMA compliance, underscoring reliability and protective performance. With a copper bus and a 30-circuit capacity, it aligns with Pow-R-Xpress stocking program availability, enabling faster turnarounds. For engineers and procurement teams, it combines space efficiency, clear labeling potential, and scalable distribution to support growing loads while controlling total installed cost.
Product Information
Extended Description
PRL2X3100X30C Eaton: Eaton PRL2X INTERIOR 480/277 3P 4W 100A 30 CKT CU BUS
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3100X30C
UPC
786689363253
Product Length/Depth
37 in
Product Height
6 in
Product Width
15 in
Product Weight
92 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Number of circuits
30
Type
PRL2X INTERIOR
Amperage Rating
100A
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3100X30C
Feature: 480/277 V interior panelboard with 3P 4W configuration. Benefit: Supports standard commercial and light industrial loads with a single distribution point, reducing wiring clutter and improving safety. Application: Office campuses, retail centers, and light manufacturing where reliable multi‑wire distribution is required. Feature: 100 A amperage rating with 30 circuits. Benefit: High-density circuit allocation enables precise protection and easier feeder planning, lowering panel count and improving maintenance planning. Application: Zone distribution for mechanical equipment rooms and electrical closets using copper bus for low resistance paths. Feature: Copper bus material. Benefit: Enhanced current carrying capacity and durability, minimizing voltage drop and thermal issues in dense configurations. Application: High-demand lighting and receptacle circuits in open-office or retail environments. Feature: Compact footprint with 37 in length, 15 in width, 6 in height. Benefit: Space-efficient installation in restricted electrical rooms, reducing enclosure footprint and permitting easier access. Application: Retrofit projects and new builds in constrained spaces. Feature: Compliance and certifications UL 67 and NEMA compliance. Benefit: Streamlined code approvals and safer operation with recognized industry standards. Application: Codes-driven installations in commercial facilities and light industrial sites. Feature: Pow-R-Xpress stocking program compatibility. Benefit: Faster sourcing and reduced lead times for project schedules. Application: Projects requiring rapid procurement and consistent parts availability.
Get a Quick Quote for a Eaton PRL2X3100X30C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3100X30C?
Enquire Now
FAQs
The PRL2X3100X30C is designed for interior use with 480/277 V, 3P4W service. Plan for a 37 in length by 15 in width footprint and 6 in height enclosure to optimize space. Copper bus provides low resistance paths, and UL 67 listing ensures compliance. Ensure adequate clearance for front access and conductor labeling, and verify local codes for NEMA compliance in your facility.
Yes. The PRL2X3100X30C is listed under Eaton’s Pow-R-Xpress stocking program, which supports faster procurement and reduced lead times. This helps projects stay on schedule, especially when you need to standardize panelboards across multiple sites and maintain consistent parts availability for maintenance and expansion.
Key specs include 100 A amperage rating, 30 circuits, 480/277 V 3P4W configuration, and copper bus. These determine feeder sizing, overcurrent protection requirements, and how you partition circuits within the interior. The copper bus improves current-carrying capacity and reduces heat buildup, which supports more reliable operation in dense layouts.
This panelboard is UL 67 listed and NEMA compliant. UL 67 confirms electrical safety and performance for panelboard assemblies, while NEMA compliance ensures suitability for general commercial environments. Together they simplify code documentation, installation approvals, and ongoing regulatory conformity across building projects.
The unit’s high circuit density reduces total panel count, saving space and potentially lowering enclosure costs. Copper bus offers durable, low-resistance performance with fewer thermal concerns, reducing thermal cycling wear. The compatibility with Pow-R-Xpress accelerates procurement, shortening project schedules and minimizing downtime during installations or retrofits.
