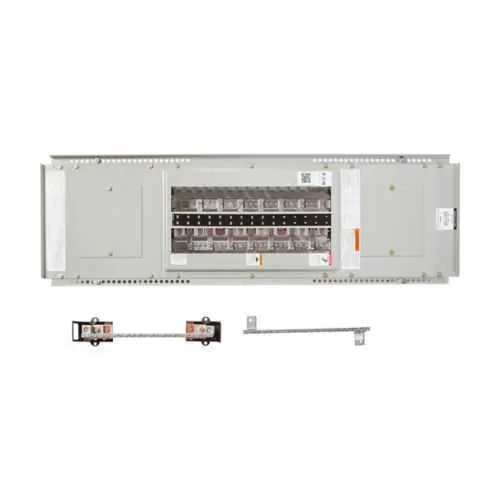

Eaton PRL2X3225L42AS Panelboard - UL 67 Certification
Part Number: PRL2X3225L42AS
Quick Summary
The Eaton PRL2X3225L42AS panelboard delivers compact, rapid-distribution power for 480/277 VAC industrial applications. Engineers often face long lead times and space constraints when upgrading electrical infrastructure, making quick, reliable panel deployment essential. This unit carries UL 67 certification and NEMA compliance, supporting safety and reliability in demanding environments. With a 225 A amperage rating and 42 circuits, it scales to growing load profiles without sacrificing footprint. The MLO interior design simplifies field wiring, while the aluminum bus reduces weight and improves thermal performance. Together, these features translate into faster installations, lower installation costs, and better overall system uptime for modern manufacturing and processing facilities.
Product Information
Extended Description
PRL2X3225L42AS Eaton: Eaton PRL2X INT 480/277 3P 4W 225A 42 CKT AL BUS, MLO Only
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3225L42AS
UPC
786689363307
Product Length/Depth
31 in
Product Height
6 in
Product Width
15 in
Product Weight
60 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Number of circuits
42
Type
PRL2X INTERIOR
Amperage Rating
225 A
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3225L42AS
Selling Policy 25-000 - Distribution and Control Products and Services
42 circuits and a 225 A rating provide substantial capacity within a single enclosure, reducing the number of panelboards required on the line. In 480/277 VAC three-phase four-wire service, this panelboard supports multi-motor drives and distributed load without compromising protection. Compact footprint (31 in L × 15 in W × 6 in H) and a 60 lb weight streamline mounting and retrofits in tight spaces, while simplifying serviceability. Aluminum bus construction lowers weight and enhances heat dissipation, enabling easier handling during installation and ongoing maintenance with 42 circuits available for scalable expansion. UL 67 certification and NEMA compliance ensure safety and regulatory alignment for harsh industrial environments. Pow-R-Xpress interior design and quick selector guides boost configuration speed, reducing commissioning time and field wiring complexity. This interior design supports easy future upgrades and straightforward compatibility with other Pow-R-Xpress components, delivering faster ROI for high-uptime processes.
Get a Quick Quote for a Eaton PRL2X3225L42AS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3225L42AS?
Enquire Now
FAQs
Follow Eaton’s installation guidelines for the PRL2X3225L42AS, including proper mounting with its MLO interior and wiring plan for 42 circuits. Use the Pow-R-Xpress quick selector guides to select compatible accessories, and verify the enclosure fits the 31 in L × 15 in W × 6 in H footprint. The aluminum bus simplifies handling and improves thermal performance during commissioning.
The panelboard is rated for 225 A and provides 42 circuits. It operates on 480/277 VAC in a 3P 4W configuration, with an MLO interior layout and a compact footprint designed to streamline installation and future expansions while maintaining safety and reliability per UL 67 standards.
Yes. It carries UL 67 certification and is NEMA compliant, supporting safety and reliability in demanding environments. The aluminum bus reduces weight and improves thermal performance, while the MLO interior simplifies field wiring and maintenance—beneficial for continuous-operation facilities and scheduled downtime reduction.
The PRL2X3225L42AS meets UL 67 for panelboards and is NEMA compliant, aligning with common industrial safety and performance standards. These certifications help ensure compliance with regulatory requirements and facilitate procurement in regulated facilities and data centers.
Key resources include Eaton’s specification sheet, quick selector reference guides, and the Pow-R-Xpress program brochures. The availability of a comprehensive warranty policy ( Selling Policy 25-000 ) and compatible accessories accelerates commissioning, reduces wiring complexity, and delivers measurable ROI through faster deployments and lower ongoing maintenance costs.
