Eaton PRL2X3225X18CS Panelboard - UL 67
Part Number: PRL2X3225X18CS
Quick Summary
The Eaton Pow-R-Xpress PRL2X3225X18CS panelboard is a compact interior power distribution solution for 480/277V three‑phase, four‑wire systems. For engineers facing space constraints and complex wiring, this unit delivers a streamlined footprint and straightforward copper bus connections. The UL 67 listing and NEMA compliance address essential safety and installation standards, reducing project risk and approvals. With 18 circuits and a 255 A bus rating, it supports evolving workloads without expanding enclosure footprints. Built for fast commissioning and reliable operation, it pairs with Pow-R-Xpress accessories and standard Eaton cabinet architectures, enabling quicker time‑to‑value in industrial facilities and control rooms.
Product Information
Extended Description

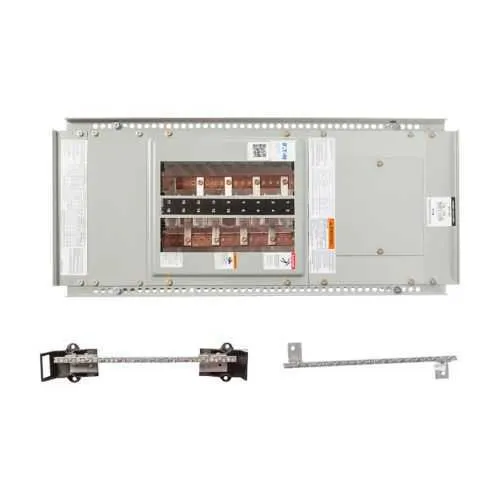

PRL2X3225X18CS Eaton: EATON POW-R-XPRESS PRL2X INTERIOR 480/277 3P 4W 225A 18 CKT CU BUS NO SFD
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3225X18CS
UPC
786689877088
Product Length/Depth
25 in
Product Height
5.75 in
Product Width
8 in
Product Weight
19 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Number of circuits
18
Phase
Three-phase
Type
PRL2X INTERIOR
Bus Rating
255 A
Voltage - max
480 V
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Feature: 18 circuits with copper bus. Business impact: high-density power distribution with low impedance, reducing voltage drop and thermal stress in multi‑load panels. Application: ideal for machine control panels and compact switchgear in manufacturing lines. Feature: 255 A bus rating. Business impact: supports larger feeder needs and safer short‑circuit margins, enabling scalable design without negative performance trade‑offs. Application: suitable for mid‑size industrial panels serving multiple loads. Feature: 480/277V three‑phase four‑wire capability. Business impact: broad compatibility with motors, drives, and control circuits while maintaining consistent monitoring and protection. Application: common in plant power distribution and machine centers. Feature: NEMA compliant and UL 67 listed. Business impact: simplifies regulatory approvals and installation qualification, reducing project delays. Application: interior panelboards in harsh industrial environments. Feature: compact dimensions (25 in L × 8 in W × 5.75 in H) and 19 lb weight. Business impact: easy handling, faster site installation, and reduced wall or cabinet footprint. Application: retrofit projects and new builds with tight space constraints. Feature: copper bus material. Business impact: enhanced conductivity and durability, supporting lower heat rise and longer service life. Application: critical for continuous operation in demanding facilities.
Get a Quick Quote for a Eaton PRL2X3225X18CS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3225X18CS?
Enquire Now
FAQs
To install the PRL2X3225X18CS panelboard in a 480V system, first verify enclosure suitability and mounting clearance. Secure the panel to a stable surface or rack, then connect the copper BUS bars per Eaton wiring diagrams. Terminate feeders to the 18 circuits, assign the neutral and grounding conductors, and torque connections to specification. Ensure all work complies with NEC and UL 67 requirements and verify labeling for safe operation.
Key specifications include 18 circuits, a 255 A bus rating, and a maximum voltage of 480 V. It is a three‑phase, four‑wire interior panelboard with copper bus bars, designed for interior distribution. It carries UL 67 certification and is NEMA compliant, making it suitable for industrial environments. The unit measures 25 in length, 8 in width, and 5.75 in height, with a weight around 19 lb.
Yes, the PRL2X3225X18CS is well suited for machine control panels. Its 18 circuits support multiple feeders within a compact 25 in × 8 in × 5.75 in footprint, and the copper bus provides low resistance for reliable operation in 480V three‑phase systems. Its UL 67 listing and NEMA compliance further streamline integration into industrial control architectures.
The PRL2X3225X18CS carries UL 67 certification and is NEMA compliant, confirming it meets established safety and performance standards for interior panelboard installations. These certifications facilitate regulatory approvals, guide procurement decisions, and reduce design risk when specifying low‑voltage distribution equipment for industrial facilities.
Technical literature for PRL2X3225X18CS is available through Eaton’s download resources. You can access the Pow-R-Xpress stocking program flyer, the Pow-R-Xpress panelboard ref guide, the program brochure, and the Pow-R-Line Xpert family overview video. Links include https://www.eaton.com/content/dam/eaton/products/low-voltage-power-distribution-controls-systems/eaton-pow-r-xpress-flyer-mz083093en-en-us.pdf, https://www.eaton.com/content/dam/eaton/products/low-voltage-power-distribution-controls-systems/panelboards/eaton-pow-r-xpress-panelboard-ref-guide-mz083092en-en-us.pdf, https://www.eaton.com/content/dam/eaton/products/low-voltage-power-distribution-controls-systems/eaton-pow-r-xpress-program-guide-brochure-mz083088en-en-us.pdf, and https://www.youtube.com/watch?v=qhUrk2jFpyw.
