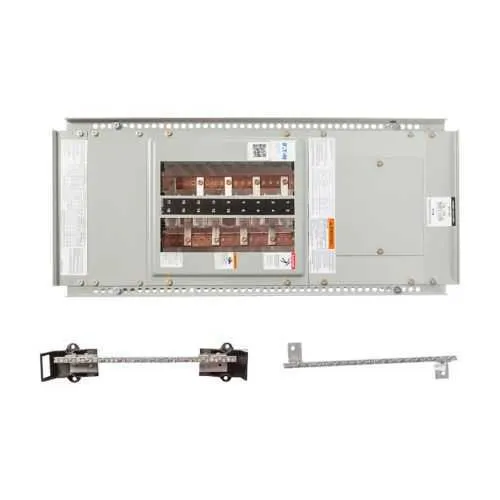

Eaton PRL2X3225X18CS1 Pow-R-Xpress Panelboard - UL 67
Part Number: PRL2X3225X18CS1
Quick Summary
Pow-R-Xpress panelboards provide compact, code-compliant distribution for commercial electrical rooms. Engineers often confront cramped spaces, dense wiring, and the challenge of rapid, code-ready installation. This Eaton interior panelboard is UL 67 listed and aligned with NEMA compliance, helping you meet safety and inspection requirements. By integrating a copper bus and a 225 A bus rating into a 208/120 V three-phase four-wire design, it supports scalable power distribution while reducing footprint and installation time. Manufacturers benefit from easier stocking programs and faster changeouts in panelrooms. End users gain improved reliability, easier maintenance, and safer, code-compliant operation. Designed for compatibility with existing Eaton Pow-R-Xpress accessories and standard panelboard footprints.
Product Information
Extended Description
PRL2X3225X18CS1 Eaton: EATON POW-R-XPRESS PRL2X INTERIOR 208/120 3P 4W 65k 225A 18 CKT CU BUS NO SFD
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3225X18CS1
UPC
786689877101
Product Length/Depth
25 in
Product Height
5.75 in
Product Width
8 in
Product Weight
19 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Number of circuits
18
Phase
Three-phase
Type
PRL2X INTERIOR
Bus Rating
255 A
Voltage - max
240 V
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Feature: 208/120 V interior, three-phase, four-wire configuration supports dense, multi-circuit distribution within a single enclosure. Business Impact: reduces panel count, saves space, and accelerates commissioning in commercial power rooms. Application: ideal for light industrial equipment rooms and data-center peripheral areas where footprint matters. Feature: 18 circuits with a copper bus and a 255 A bus rating deliver robust load capacity. Business Impact: improves fault tolerance and allows scalable feeder layouts without upgrading the enclosure. Application: suitable for evolving power needs in manufacturing lines and office/commercial facilities. Feature: UL 67 listing and NEMA alignment provide certified safety and inspector confidence. Business Impact: lowers risk of nonconformance and speeds project approvals. Application: essential for regulated facilities and new constructions. Feature: compact footprint (25 in L, 8 in W, 5.75 in H) with a 19 lb form factor. Business Impact: simple transport, easier wall mounting, and faster on-site installation. Application: convenient for retrofit installs and modular power distribution. Feature: copper bus material, 240 V max, and 18 circuits ensure reliable performance. Business Impact: minimizes voltage drop and supports precise distribution planning. Application: suitable for critical loads and sensitive equipment in industrial environments.
Get a Quick Quote for a Eaton PRL2X3225X18CS1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3225X18CS1?
Enquire Now
FAQs
Plan for a compact footprint in the existing room layout, ensuring adequate clearances per NEMA guidelines. The unit is designed for surface or recessed mounting in standard panel enclosures, with a 25 inch depth, 8 inch width, and 5.75 inch height footprint. Verify 208/120 V three-phase four-wire supply, up to 255 A bus rating, and copper bus connections to ensure seamless integration with nearby feeders and breakers.
Confirm 208/120 V operation, three-phase four-wire configuration, 18 circuit capacity, copper bus material, and a 255 A bus rating. Check max voltage rating of 240 V, UL 67 listing, and NEMA compliance to ensure the unit meets local code requirements. Also verify the UPC and catalog number PRL2X3225X18CS1 for correct ordering.
Yes. The interior PRL2X3225X18CS1 supports 208/120 V three-phase distribution with 18 circuits, which aligns well with machine control panels that require reliable, compact power distribution. The copper bus and robust bus rating support sudden load changes, while UL 67 and NEMA compliance provide the safety and regulatory assurances needed in industrial settings.
The panelboard is UL 67 listed and NEMA compliant, signaling adherence to recognized safety and performance standards for low voltage panelboards. These certifications simplify code compliance reviews, improve inspection outcomes, and reduce project risk when specifying equipment for commercial and light industrial applications.
Pow-R-Xpress products are designed for faster stocking and quicker installations, which lowers labor costs and project timelines. The 208/120 V three-phase configuration, copper bus, and compact footprint reduce wiring complexity and spare parts needs. Long-term, this translates to easier maintenance, fewer field faults, and improved system reliability for distributed power in facilities.
