Eaton PRL2X3225X30A Panelboard - UL 67 Compliance
Part Number: PRL2X3225X30A
Quick Summary

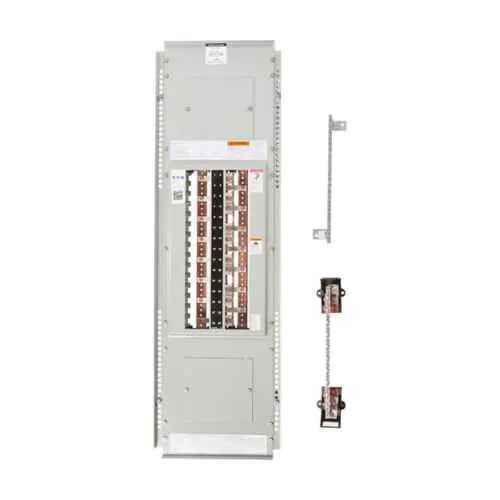

The Eaton PRL2X3225X30A panelboard is a Pow-R-Xpress interior solution for 480/277 V three-phase four-wire distribution. That ease is critical when upgrading in tight spaces or retrofit projects, where time costs and downtime matter. It carries UL 67 certification and is NEMA compliant, reinforcing safety and regulatory alignment for indoor power distribution. With an aluminum bus and a 225 A rating, plus 30 circuits, it delivers scalable power for lighting, emergency systems, and general electrical distribution in commercial facilities. This design supports streamlined procurement and reliable performance across industrial applications while helping teams stay on schedule and within budget.
Product Information
Extended Description
PRL2X3225X30A Eaton: Eaton PRL2X INTERIOR 480/277 3P 4W 225A 30 CKT AL BUS
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3225X30A
UPC
786689363284
Product Length/Depth
37 in
Product Height
6 in
Product Width
15 in
Product Weight
29 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Number of circuits
30
Type
PRL2X INTERIOR
Amperage Rating
225 A
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3225X30A
Selling Policy 25-000 - Distribution and Control Products and Services
Feature 225 A amperage rating → Business Impact Enables robust feeder capability for demanding loads and headroom for future expansion; Application Ideal for 480/277 V three-phase four-wire distribution in commercial facilities, hospitals, and manufacturing plants. Feature 30 circuits → Business Impact Reduces panel count and simplifies wiring, improving installation speed and maintenance planning; Application Suited for mid-to-large lighting and power distribution where circuit density matters. Feature Aluminum bus → Business Impact Lighter weight with corrosion resistance improves handling, reduces installation effort, and lowers overall structural load; Application Beneficial for retrofit projects and spaces with restricted lifting capacity. Feature UL 67 listing and NEMA compliance → Business Impact Strengthens regulatory alignment and reduces inspection risk, accelerating project sign-off; Application Critical for indoor power distribution in code-driven environments. Feature Compact interior design (37 in L, 15 in W, 6 in H) and 29 lb weight → Business Impact Facilitates easier installation in tight mechanical rooms and during relocations; Application Ideal for space-constrained commercial and industrial applications. Feature 480/277 V, 3P 4W compatibility → Business Impact Aligns with common facility power systems, reducing adapters and external equipment; Application Suitable for lighting, emergency, and general distribution in office complexes, schools, and manufacturing plants.
Get a Quick Quote for a Eaton PRL2X3225X30A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3225X30A?
Enquire Now
FAQs
The PRL2X3225X30A is designed as an interior panelboard for 480/277 V three-phase four-wire systems in commercial and light industrial settings. It aligns with Pow-R-Xpress installations and is compatible with aluminum-bus interior assemblies, UL 67 listings, and NEMA-compliant applications, making it suitable for new builds or retrofit projects where space and weight considerations matter.
Key specs include a 225 A amperage rating, 30 circuit capacity, aluminum bus material, and physical footprint of 37 inches long, 15 inches wide, and 6 inches high, with an approximate weight of 29 lb. It is UL 67 listed and NEMA compliant, designed for 480/277 V operation in a three-phase four-wire configuration.
Yes. The panelboard is categorized under Lighting & Emergency Systems, supporting critical branch circuits and control power in commercial facilities. Its 30 circuits and 225 A rating provide ample expansion, while the aluminum bus offers easier handling during installation and maintenance in lighting and emergency distribution.
The PRL2X3225X30A carries UL 67 certification and is NEMA compliant, ensuring safety and code alignment for indoor electrical distribution. These certifications help with regulatory approvals, reduce inspection time, and support safer, more reliable operation in commercial and industrial environments.
The combination of a lightweight aluminum bus, 225 A capacity, and 30 circuits reduces installation manpower and time, lowers structural load, and simplifies future changes. Centralizing power distribution with UL 67 and NEMA-compliant hardware also lowers maintenance costs by improving reliability and reducing the need for frequent field modifications.
