Eaton PRL2X3225X30AS Panelboard for 480V/277V - UL 67
Part Number: PRL2X3225X30AS
Quick Summary
The Eaton Pow-R-Xpress PRL2X3225X30AS panelboard is a compact interior power distribution solution for 480/277V three-phase systems in commercial and light-industrial facilities. Engineers often confront tight electrical spaces, complex wiring, and the need to maintain regulatory compliance during upgrades or new installs. This panelboard delivers UL 67 certification and NEMA compliance to help you meet safety and performance standards with confidence. Designed for scalable 30-circuit layouts and a robust 255 A bus, it aligns with Eaton’s Pow-R-Xpress stocking program to streamline procurement, installation, and future expansion while reducing total installed cost.
Product Information
Extended Description

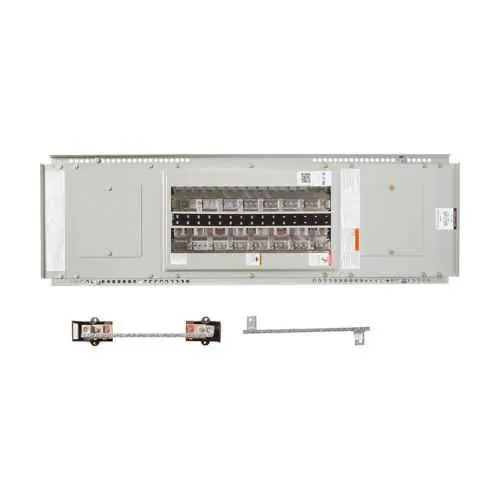

PRL2X3225X30AS Eaton: EATON POW-R-XPRESS PRL2X INTERIOR 480/277 3P 4W 225A 30 CKT AL BUS NO SFD
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3225X30AS
UPC
786689877156
Product Length/Depth
31 in
Product Height
5.75 in
Product Width
8 in
Product Weight
59 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Number of circuits
30
Phase
Three-phase
Type
PRL2X INTERIOR
Bus Rating
255 A
Voltage - max
480 V
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Feature → Business Impact → Application: The PRL2X3225X30AS uses an aluminum bus, offering robust conductivity and corrosion resistance while supporting a 30-circuit interior layout, enabling efficient, space-saving power distribution in compact electrical rooms. This translates to faster installation, lower weight handling during mounting, and easier maintenance checks in commercial facilities that require reliable UL 67 certified panelboards for 480V/277V service. Application: interior panels in offices, data centers, or light-industrial spaces where limited footprint and dependable performance are critical. Feature → Business Impact → Application: A three-phase, four-wire configuration matches common industrial loads and protects against miswiring during upgrades, reducing commissioning time and risk. Application: upgrade projects where existing infrastructure demands modern, safe distribution with NEMA compliance. Feature → Business Impact → Application: A 31-inch depth, 8-inch width, and 5.75-inch height footprint provides a predictable, compatible installation envelope in retrofit or new builds, helping electricians plan routing and enclosure space with confidence. Application: retrofit installations in existing electrical rooms seeking minimal disruption. Feature → Business Impact → Application: 255 A bus rating combined with 480 V maximum supports scalable load growth and allows safe headroom for future equipment without over-sizing the panel. Application: facilities planning capacity for future line upgrades or added machinery. Feature → Business Impact → Application: UL 67 certification and NEMA compliance provide regulatory alignment and enhanced safety margins, reducing documentation time during audits. Application: projects subject to strict electrical and safety standards. Feature → Business Impact → Application: The option to integrate with Eaton’s Pow-R-Xpress stocking program accelerates procurement, reducing lead times and enabling faster project execution. Application: manufacturing or facilities teams pursuing just-in-time customization and reduced downtime during panel replacements.
Get a Quick Quote for a Eaton PRL2X3225X30AS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3225X30AS?
Enquire Now
FAQs
Begin by verifying UL 67 certification and NEMA compliance for your environment. Confirm enclosure space matches the 31 in depth, 8 in width, and 5.75 in height footprint. Mount the interior panelboard with the aluminum bus in a suitable electrical room, connect the 3P4W 480V/277V feeders, and branch to the 30 circuits, ensuring proper labeling and load balancing.
It supports three-phase, four-wire 480V/277V systems with a 255 A bus rating and up to 30 circuits. The bus is aluminum for robust conductivity, and the unit is UL 67 certified with NEMA compliance, suitable for interior distribution. Maximum line voltage is 480 V, making it a strong fit for many commercial loads.
It is designed for both new installations and interior upgrades. Its compact interior design and 30-circuit capacity support scalable projects, while UL 67 and NEMA compliance ensure it meets modern safety standards. The panel’s dimensions and aluminum bus enable straightforward integration into new builds and efficient replacement in existing rooms.
The PRL2X3225X30AS carries UL 67 certification for panelboards and is NEMA compliant for interior use. These certifications ensure safety, reliability, and regulatory alignment for commercial and light-industrial electrical installations, reducing audit friction and supporting long-term operation.
Key benefits include faster procurement through Eaton’s Pow-R-Xpress stocking program, and a lightweight aluminum bus that simplifies handling. With 30 circuits and a 255 A bus, it delivers scalable capacity for future loads, reducing the need for early full-panel upgrades and lowering total cost of ownership over time.
