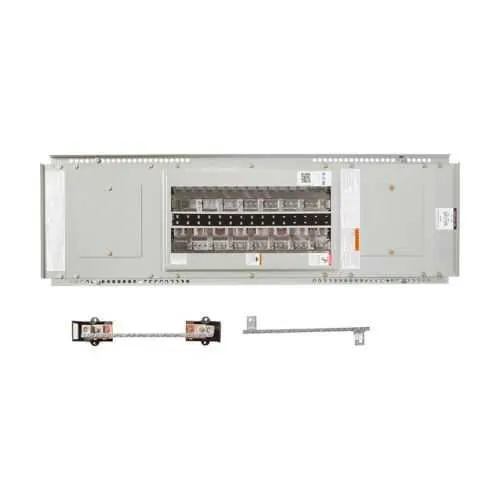

Eaton PRL2X3225X30AS1 Panelboard - UL 67, 255 A Bus
Part Number: PRL2X3225X30AS1
Quick Summary
The Eaton Pow-R-Xpress PRL2X panelboard provides compact, ready-to-wire power distribution for commercial and light industrial electrical rooms. Designers frequently wrestle with space constraints, complex wiring, and the risk of non-compliance during panel retrofits. UL 67 listing and NEMA compliance provide safety and reliability, while its interior 208/120 V three-phase design matches common facility infrastructure. With a space-efficient footprint and robust bus capability, it speeds installation and reduces long-term operating costs, making it a dependable choice for Pow-R-Xpress projects and ongoing electrical system maintenance.
Product Information
Extended Description
PRL2X3225X30AS1 Eaton: EATON POW-R-XPRESS PRL2X INTERIOR 208/120 3P 4W 65k 225A 30 CKT AL BUS NO SFD
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3225X30AS1
UPC
786689877170
Product Length/Depth
31 in
Product Height
5.75 in
Product Width
8 in
Product Weight
59 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Number of circuits
30
Phase
Three-phase
Type
PRL2X INTERIOR
Bus Rating
255 A
Voltage - max
240 V
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Three-phase interior design supports efficient power distribution for commercial and light industrial loads, with a 255 A bus rating that accommodates balanced and peak loads while minimizing voltage drop. This translates to improved reliability for lighting, motors, and control gear, and reduces the risk of nuisance tripping during startup. The aluminum bus construction delivers excellent conductivity with lightweight handling, facilitating easier field wiring and fault isolation, and enabling faster commissioning in constrained spaces. The 30-circuit configuration in a compact footprint suits remodels and space-limited electrical rooms, enabling scalable expansion without sacrificing safety or access. UL 67 certification and NEMA compliance underpin regulatory alignment and insurance-grade reliability, simplifying procurement and project approvals. Compatibility with 208/120 V systems and three-phase infrastructure supports integration with existing plant power networks, while the Pow-R-Xpress ecosystem enables faster stocking and serviceability for ongoing maintenance and upgrades.
Get a Quick Quote for a Eaton PRL2X3225X30AS1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3225X30AS1?
Enquire Now
FAQs
The PRL2X3225X30AS1 is a three-phase interior panelboard designed for 208/120 V systems with a 255 A bus rating. It requires mounting in a suitable electrical room, access to a grounded enclosure, and proper conduit routing for 30 circuits. Ensure compliance with UL 67 and local codes, and verify compatibility with existing Pow-R-Xpress accessories to streamline wiring and future expansion.
Yes, the PRL2X3225X30AS1 is specified for 208/120 V systems, supporting three-phase, four-wire configurations. Its maximum voltage rating is 240 V, which aligns with common commercial distribution practices. This makes it suitable for lighting, motors, and control gear in light industrial environments, while maintaining safe and reliable operation.
The panelboard is UL 67 listed and NEMA compliant. UL 67 ensures electrical safety for panelboards used in commercial and industrial settings, while NEMA compliance confirms compatibility with standard enclosure and environmental requirements. These certifications support regulatory approvals, reduced risk during audits, and enhanced product reliability in demanding installation environments.
The panelboard supports 30 circuits and features a 255 A bus rating. This combination allows reliable distribution for common commercial loads and light industrial equipment, with capacity for balanced loading and future expansion within a compact footprint. The aluminum bus further aids in efficient current transfer and easier field wiring.
Pow-R-Xpress streamlines procurement with standardized stocking and quick lead times, reducing project delays. The PRL2X interior design simplifies wiring and installation, enabling faster commissioning and easier maintenance. This translates to lower total cost of ownership, improved system uptime, and a smoother path to code-compliant power distribution in commercial and light industrial facilities.
