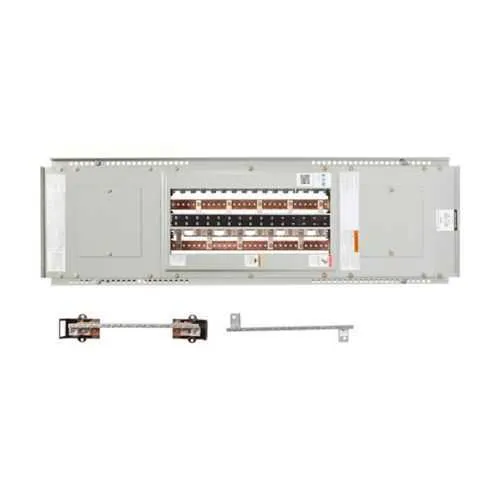

Eaton PRL2X3225X30C Panelboard - UL 67 Certified
Part Number: PRL2X3225X30C
Quick Summary
Eaton PRL2X3225X30C panelboard delivers reliable power distribution for industrial electrical rooms. Designers commonly confront tight spaces, complex wiring, and long lead times when upgrading or expanding panels. UL 67 listing, NEMA compliance, and copper bus construction provide strong safety, durability, and fault tolerance in harsh environments. This interior, 480/277 V, 3P4W panel supports 225 A across 30 circuits, enabling a compact footprint without sacrificing future expandability. Leveraging the Pow-R-Xpress ecosystem, it speeds installation, simplifies maintenance, and reduces total cost of ownership for facilities engineering teams. Its standard dimensions fit typical layouts, aiding upfront planning and procurement.
Product Information
Extended Description
PRL2X3225X30C Eaton: Eaton PRL2X INTERIOR 480/277 3P 4W 225A 30 CKT CU BUS
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3225X30C
UPC
786689363291
Product Length/Depth
37 in
Product Height
6 in
Product Width
15 in
Product Weight
30 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Number of circuits
30
Type
PRL2X INTERIOR
Amperage Rating
225 A
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3225X30C
225 A amperage rating with 30 circuits enables efficient load distribution for mid-size facilities, reducing the need for multiple enclosures and cutting wiring complexity. Business impact includes lower space requirements, faster installations, and reduced lifecycle costs, especially when coordinating with utility feeds and safety margins for 480/277 V systems. This panel uses copper bus material to deliver improved conductivity and reliability, supporting high-load applications and longer interval between maintenance cycles in harsh environments. UL 67 listing and NEMA compliance provide regulatory assurance and safer operation, reducing procurement risk and easing integration with existing control architectures. The interior PRL2X INTERIOR design with a 37 in depth footprint fits standard electrical rooms, allowing straightforward replacement or expansion within existing racks and layouts. The 30-circuit capability supports scalable distribution for growing lines and equipment clusters, while the Pow-R-Xpress ecosystem enables quick selector reference and streamlined procurement. Availability of official Eaton guides aids engineers in accurate sizing and BOM creation, helping procurement teams shorten lead times and improve project predictability.
Get a Quick Quote for a Eaton PRL2X3225X30C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3225X30C?
Enquire Now
FAQs
The PRL2X3225X30C is designed for 480/277 V, 3-phase, 4-wire systems (3P 4W) with a 225 A rating and 30 circuits. This interior panelboard is suited for mid-size facilities needing reliable distribution within a compact footprint.
Key specs include 225 A amperage, 30 circuits, copper bus material, UL 67 certification, and NEMA compliance. Dimensions are 37 in long, 15 in wide, and 6 in tall, supporting a space-efficient installation plan.
Yes. With 480/277 V operation, 30 circuits, and compatibility with the Pow-R-Xpress program, the PRL2X3225X30C is well-suited for industrial control rooms, manufacturing floors, and distributed equipment panels requiring scalable, reliable power.
This panelboard is UL 67 listed and NEMA compliant, providing certification-backed safety and performance for commercial and industrial applications, reducing compliance risk on audits and job sites.
Pow-R-Xpress provides quick selector references and program guides to accelerate specification, procurement, and commissioning. Combined with copper bus and a compact interior design, it minimizes installation time and long-term maintenance.
