Eaton PRL2X3225X30CS Panelboard - 480/277V Three-Phase UL 67
Part Number: PRL2X3225X30CS
Quick Summary
Eaton PRL2X3225X30CS panelboard provides compact, high-capacity power distribution for 480/277V systems. Facilities and OEMs often struggle with limited space, complex wiring, and meeting evolving electrical codes. UL 67 certification, NEMA compliance, and rugged copper bus support safe, reliable performance in demanding environments. With 30 circuits and a 255 A bus rating, this interior panelboard minimizes footprint while supporting future expansion and dependable operation. Its 31 inch length and 8 inch width, along with a 59 lb weight, enable flexible mounting in standard enclosures, reducing field challenges. Designed to streamline installation for data centers, industrial facilities, and service panels, it helps teams shorten project schedules and lower total cost of ownership.
Product Information
Extended Description
PRL2X3225X30CS Eaton: EATON POW-R-XPRESS PRL2X INTERIOR 480/277 3P 4W 225A 30 CKT CU BUS NO SFD
Product Name

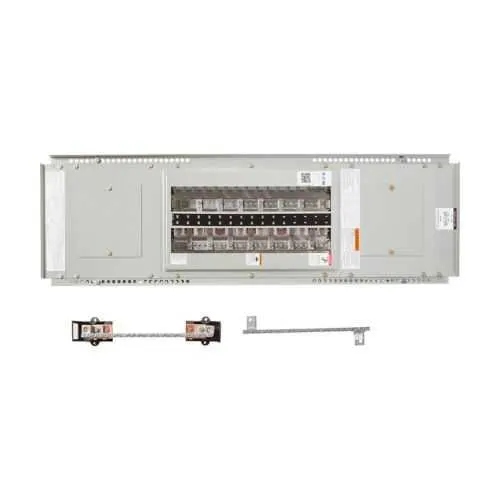

Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3225X30CS
UPC
786689877163
Product Length/Depth
31 in
Product Height
5.75 in
Product Width
8 in
Product Weight
59 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Number of circuits
30
Phase
Three-phase
Type
PRL2X INTERIOR
Bus Rating
255 A
Voltage - max
480 V
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Feature: 30 circuits and a 225 A rating with a 255 A bus enable substantial headroom in a compact footprint. Business Impact: reduces the need for larger upstream feeders and simplifies load planning, cutting upfront costs and ongoing energy losses. Application: suitable for 480/277V three-phase motor loads and lighting in industrial facilities. | Feature: Copper bus material provides low electrical resistance and reliable current sharing. Business Impact: improves efficiency, minimizes voltage drop, and enhances long-term reliability in high-usage environments. Application: preferred in critical machinery rooms and data centers where uptime matters. | Feature: UL 67 listing and NEMA compliance deliver formal safety and performance validation. Business Impact: lowers procurement risk, speeds regulatory approvals, and supports compliance reporting. Application: construction projects, OEM panel assemblies, and service entrances that demand verified protection. | Feature: Dimensions 31 in long, 8 in wide, 5.75 in high with a 59 lb weight. Business Impact: compact dimensions enable easier fit in tight spaces and faster field installation, reducing labor time. Application: wall-routed or enclosure-mounted distributions in space-constrained facilities. | Feature: Pow-R-Xpress interior design offers straightforward wiring paths and accessible terminations. Business Impact: speeds stocking and minimizes field errors, cutting commissioning time. Application: maintenance teams and OEMs seeking modular, scalable distribution in busy facilities.
Get a Quick Quote for a Eaton PRL2X3225X30CS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3225X30CS?
Enquire Now
FAQs
For proper installation, mount the PRL2X3225X30CS within a compatible enclosure that accommodates its 31 inch length, 8 inch width, and 5.75 inch height. Ensure adequate clearance for access to terminations and serviceability, and verify enclosure rating meets site environmental conditions. The panelboard is designed for interior use and should be installed per NFPA 70/NEMA guidelines to preserve UL 67 compliance.
Key specs include 480/277V operation, three-phase four-wire configuration, 30 circuits, a 225 A nominal rating with a 255 A bus rating, and copper bus material. It is UL 67 listed and NEMA compliant, with a product footprint of 31 in L x 8 in W x 5.75 in H and a weight of about 59 lb. The unit supports up to 30 circuits at 480 V, suitable for demanding loads.
Yes. The panelboard is designed for 480/277V three-phase distributions, making it appropriate for motor control, lighting, and essential power paths in both industrial facilities and data centers. Its copper bus and UL 67/NEMA compliance support reliable performance and regulatory alignment, while the compact form factor helps minimize space requirements in cabinet or rack enclosures.
Key certifications include UL 67 listing, confirming panelboard safety for low-voltage distribution, and NEMA compliance, which supports installation in standard electrical environments. These certifications streamline procurement, supplier qualification, and regulatory submissions, reducing project delays and ensuring consistent performance in critical facilities.
Plan for modular stocking with compatible Pow-R-Xpress components to simplify upgrades and maintenance. Use the interior design to minimize wiring complexity and enable faster field terminations. Regular inspection of copper bus connections, adherence to torque specifications, and keeping spare subassemblies on hand help reduce downtime and extend panelboard life, delivering lower total cost of ownership over the system lifecycle.
