Eaton PRL2X3225X42A Panelboard for 480/277V - UL 67
Part Number: PRL2X3225X42A
Quick Summary
Eaton PRL2X3225X42A panelboard is a compact interior low-voltage distribution solution designed for 480/277V systems. It helps engineers and electricians address space constraints and complex wiring in manufacturing lines and plant power distribution. UL 67 listed and NEMA compliant, with an aluminum bus and a 225 A rating, this panelboard delivers durable, scalable performance. The Pow-R-Xpress line integration supports faster installation and simplified maintenance, enabling cost-effective power distribution across industrial facilities while meeting demanding industry standards and installation timelines.
Product Information
Extended Description

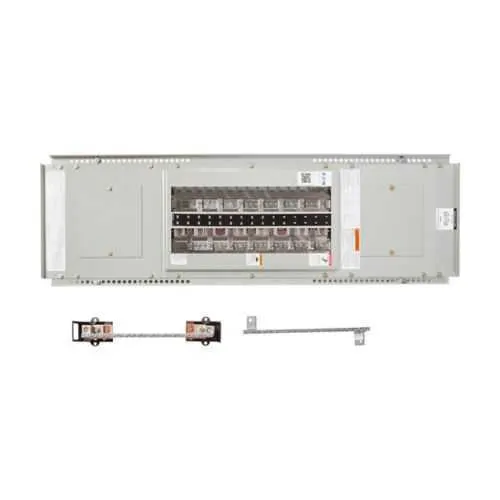

PRL2X3225X42A Eaton: Eaton PRL2X INTERIOR 480/277 3P 4W 225A 42 CKT AL BUS
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3225X42A
UPC
786689363345
Product Length/Depth
49 in
Product Height
6 in
Product Width
15 in
Product Weight
34 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Number of circuits
42
Type
PRL2X INTERIOR
Amperage Rating
225 A
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3225X42A
Feature → Business Impact → Application. The PRL2X3225X42A uses an aluminum bus to deliver durable, corrosion-resistant power paths, reducing maintenance costs and extending service life in harsh plant environments. This translates to lower total cost of ownership and fewer unplanned downtimes in critical manufacturing lines that rely on reliable low-voltage distribution. The interior PRL2X INTERIOR design supports easy wiring and modular expansion, enabling faster retrofit projects and scalable capacity for evolving plant needs, including upgrades to 480/277V systems with 3P 4W configurations. With a 225 A amperage rating and 42 circuits, the panelboard provides robust distribution for mid-size facilities, improving service continuity and energy management while remaining compatible with Pow-R-Xpress accessories for streamlined installation. Its 49 in length, 15 in width, and 6 in height footprint supports space-constrained electrical rooms, enhancing overall plant efficiency and footprint utilization. NEMA compliance and UL 67 certification remove regulatory risk, helping procurement teams justify value while maintaining safety standards. This combination of compact form factor, strong specs, and Eaton support reduces installation time and equipment footprint without compromising reliability, a critical balance for industrial automation projects and facility upgrades.
