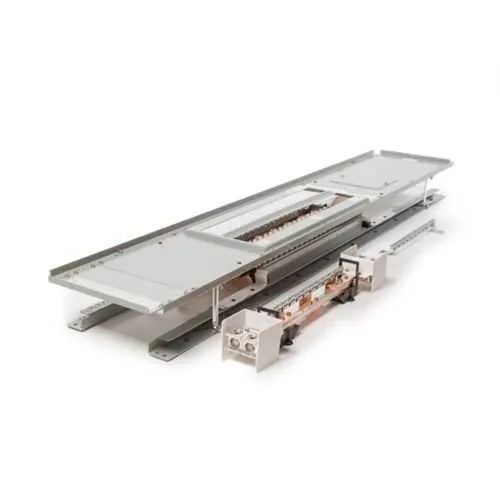

Eaton PRL2X3225X42A1 panelboard - UL 67, 225 A
Part Number: PRL2X3225X42A1
Quick Summary
Eaton Pow-R-Xpress PRL2X panelboard is a compact interior power distribution solution for 120/208V, 3-phase, 4-wire systems in commercial and light-industrial facilities. Engineers often struggle with large, slow-to-install panels that complicate commissioning, maintenance scheduling, and space planning in busy electrical rooms. UL 67 safety certification and NEMA compliance provide robust protection and industry acceptance for interior panelboards in modern installations. This PRL2X model combines high circuit density with a durable aluminum bus, delivering faster installation, easier wiring, and safer operation—helping projects meet timelines and budgets. In addition, the 42-circuit, 225A rating supports scalable upgrades without changing hardware.
Product Information
Extended Description
PRL2X3225X42A1 Eaton: Eaton Pow-R-Xpress PRL2X INTERIOR, 120/208V, 3PH 4W, 65K, 225A, 42 CKT, AL BUS, LONG INTERIOR
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3225X42A1
UPC
786689671389
Product Length/Depth
49 in
Product Height
6.5 in
Product Width
8.5 in
Product Weight
33 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Number of circuits
42
Type
PRL2X INTERIOR
Amperage Rating
225 A
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3225X42A1
Feature aluminum bus construction reduces weight and improves heat dissipation, enabling easier handling during installation. Business impact lower labor costs and safer mounting, especially in constrained spaces; Application interior panelboards in commercial and light-industrial environments benefit from easier service and maintenance. Feature 42 circuits with a 225 A rating provides high-density distribution for lighting and small motor loads, supporting scalable growth in growing facilities; Application suitable for busy office complexes and retail or light industrial spaces that require reliable power without expanding footprint. Feature compact dimensions—49 in depth, 8.5 in width, 6.5 in height—and a 33 lb weight improve space planning and ease on-site handling; Application ideal for retrofit or new-build projects with space constraints. Feature UL 67 certification and NEMA compliance reinforce code conformance and safety, reducing risk during inspections and project delays; Application critical for regulated environments and building automation integrations. Feature 120/208V, 3PH 4W compatibility ensures standard distribution for lighting, HVAC, and emergency systems; Application suits typical commercial electrical rooms and load centers. Feature availability through Pow-R-Xpress stocking program supports faster procurement and reduced downtime; Application enables quicker project startup and maintenance planning.
Get a Quick Quote for a Eaton PRL2X3225X42A1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3225X42A1?
Enquire Now
FAQs
The PRL2X3225X42A1 is designed for interior power distribution in 120/208V, 3-phase, 4-wire systems. It supports 42 circuits and 225 A, making it well-suited for lighting and small motor loads in commercial buildings and light-industrial facilities. Its aluminum bus and UL 67/NEMA compliance help ensure code-ready performance in demanding environments.
This panelboard carries UL 67 certification and is noted as NEMA compliant. These certifications provide proven safety and build-quality benchmarks, streamlining approvals during inspections and ensuring compatibility with standard electrical codes for interior panelboard installations.
The panelboard measures 49 inches in depth, 8.5 inches in width, and 6.5 inches in height, with an approximate weight of 33 pounds. These dimensions and weight support straightforward handling, mounting in standard electrical rooms, and easier service access during maintenance.
Yes. The unit supports 42 circuits with an amperage rating of 225 A. This combination enables high circuit density for efficient power distribution in larger lighting, emergency, and small-load scenarios without needing a larger enclosure layout.
Absolutely. The PRL2X3225X42A1 is designed for 120/208V, 3-phase, 4-wire installations and uses an aluminum bus. This combination supports reliable distribution, reduced weight during installation, and long-term performance suitable for commercial electrical rooms and service entrances.
