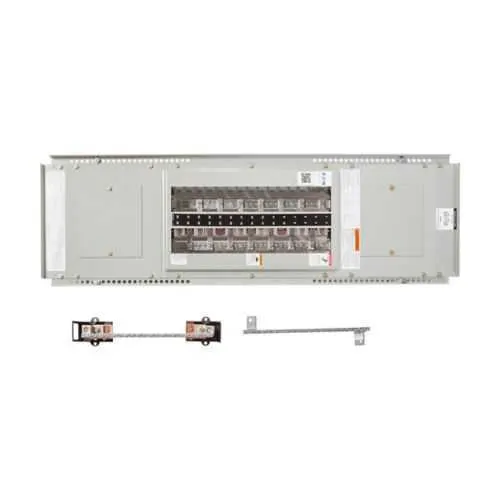

Eaton PRL2X3225X42AS Panelboard - UL 67, 225 A
Part Number: PRL2X3225X42AS
Quick Summary
Eaton PRL2X3225X42AS panelboard delivers scalable low-voltage power distribution for industrial and commercial control panels. This solution helps engineers reduce field wiring and on-site assembly time by delivering a factory-assembled interior with robust components. The unit carries UL 67 certification and NEMA compliance, underscoring safety and reliability in demanding environments. By integrating an aluminum bus and a compact footprint, it supports efficient installation, easier maintenance, and long-term cost savings. Ideal for power distribution in manufacturing facilities, data centers, and large facilities seeking a Pow-R-Xpress approach to panelboard design and installation.
Product Information
Extended Description
PRL2X3225X42AS Eaton: Eaton PRL2X INT. 480/277 3P 4W 225A 42 CKT AL BUS
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3225X42AS
UPC
786689363338
Product Length/Depth
43.75 in
Product Height
6.5 in
Product Width
18.25 in
Product Weight
28 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Number of circuits
42
Type
PRL2X INTERIOR
Amperage Rating
225 A
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3225X42AS
Feature 480/277 V operation (3P 4W) inside a PRL2X interior panelboard → Business Impact enables safe, standard-high-voltage distribution with fewer field modifications → Application suitable for commercial and light-industrial electrical rooms. Feature 225 A amperage rating and 42 circuits → Business Impact supports scalable load distribution with room to expand without re-sizing feeders → Application ideal for mid-size facilities and growing electrical systems. Feature Aluminum bus material → Business Impact reduces weight and improves ease of handling during installation and maintenance → Application facilitates faster assembly in constrained spaces and improves overall reliability. Feature 43.75 in length, 18.25 in width, 6.5 in height and 28 lb weight → Business Impact delivers a compact, space-efficient footprint suitable for restricted areas → Application fits into standard electrical closets and equipment rooms while preserving capacity. Feature NEMA compliant and UL 67 certified → Business Impact ensures regulatory compliance and safety for critical equipment installations → Application meets industry standards for panelboards in harsh environments and regulated facilities. Feature Pow-R-Xpress interior design → Business Impact accelerates procurement-to-commissioning timelines and reduces total cost of ownership → Application supports rapid deployment in new builds and refurbishments, aligning with modern modular distribution strategies.
Get a Quick Quote for a Eaton PRL2X3225X42AS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3225X42AS?
Enquire Now
FAQs
The PRL2X3225X42AS is designed for 480/277 V AC, 3-phase, 4-wire service with 42 circuits and a 225 A rating. Its interior design and aluminum bus support quick installation in electrical rooms of manufacturing facilities, warehouses, and commercial buildings while meeting NEMA compliance and UL 67 standards.
Important specs include a 225 A amperage rating, 42 circuits, aluminum bus material, and interior dimensions of 43.75 in (length) x 18.25 in (width) x 6.5 in (height). Weight is 28 lb. It is UL 67 certified and NEMA compliant, with operating voltage of 480/277 V.
Yes. The panelboard is explicitly designed for 480/277 V, 3-phase, 4-wire systems, making it appropriate for industrial control panels and facilities requiring reliable low-voltage distribution with a robust UL 67 certification.
This Eaton PRL2X3225X42AS panelboard carries UL 67 certification and is NEMA compliant, signaling adherence to recognized safety and performance standards for low-voltage panelboards used in industrial and commercial settings.
Pow-R-Xpress interior design provides a factory-assembled solution that reduces field wiring and installation time, lowering labor costs and project risk. The aluminum bus reduces weight and simplifies handling, while UL/NEMA compliance supports ongoing reliability and lower maintenance costs over the panelboard's life cycle.
