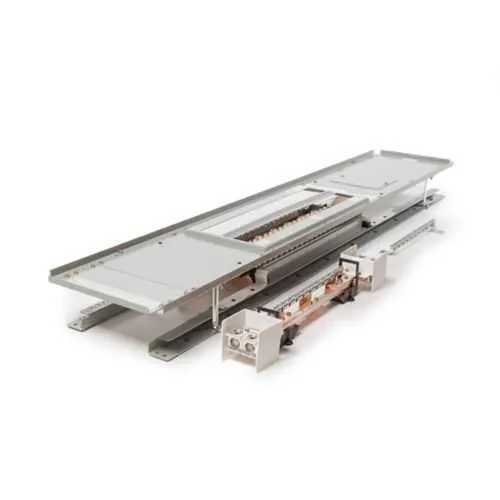

Eaton Pow-R-Xpress PRL2X3225X42C1 Panelboard - UL 67 Certification
Part Number: PRL2X3225X42C1
Quick Summary
Eaton Pow-R-Xpress PRL2X3225X42C1 panelboard is a compact interior power distribution solution for 120/208V, 3-phase systems. The challenge of crowded electrical rooms, space constraints, and the need for scalable, compliant distribution is common across installations. This unit carries UL 67 certification and is NEMA compliant, reinforcing safety and reliability in demanding environments. Its 49 inch long interior supports future circuit additions, while copper bus construction enhances conductivity. For procurement teams and engineers, the combination of a 225 A rating and 42 available circuits translates to lower lifecycle costs, predictable installation timelines, and a cleaner, more maintainable power distribution footprint in busy facilities.
Product Information
Extended Description
PRL2X3225X42C1 Eaton: Eaton Pow-R-Xpress PRL2X INTERIOR, 120/208V, 3PH 4W, 65K, 225A, 42 CKT, CU BUS, LONG INTERIOR
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3225X42C1
UPC
786689671396
Product Length/Depth
49 in
Product Height
6.5 in
Product Width
8.5 in
Product Weight
38 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Number of circuits
42
Type
PRL2X INTERIOR
Amperage Rating
225 A
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3225X42C1
Feature: 42 circuits and 225 A amperage. Business impact: enables high-density distribution in a compact footprint, reducing panel count and simplifying feeder design. Application: ideal for machine rooms and electrical closets in manufacturing facilities. Feature: 120/208V, 3PH 4W interior with copper bus. Business impact: improves electrical efficiency and reduces heat buildup under load, supporting longer-term reliability. Application: suitable for control panels and distributed power in commercial spaces. Feature: UL 67 certification and NEMA compliance. Business impact: regulatory confidence and safer commissioning, lowering risk during inspections and handovers. Application: code-compliant installations in industrial environments. Feature: 49 inch interior length (LONG INTERIOR). Business impact: expandable capacity and easier cable management for future circuit additions. Application: design for growth in evolving facilities. Feature: 42 circuit count in a robust interior enclosure. Business impact: optimized space with scalable protection and simplified wiring layouts. Application: dense power distribution zones in production lines and distribution centers.
Get a Quick Quote for a Eaton PRL2X3225X42C1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3225X42C1?
Enquire Now
FAQs
The PRL2X3225X42C1 is designed for interior installations at 120/208V, 3-phase, 4-wire systems and uses copper bus for low impedance paths. Plan for the 49 in depth interior to accommodate future cables and feeders, ensure access for service, and verify UL 67/NEMA compliance during final inspections. The unit’s 42 circuits and 225 A rating provide capacity for staged expansions without complete panel replacement.
Key specifications include amperage rating (225 A), number of circuits (42), voltage (120/208V), phase configuration (3PH 4W), and bus material (copper). UL 67 certification and NEMA compliance are essential for safety and code alignment. Understanding these helps ensure adequate headroom for future loads and compatibility with existing distribution gear.
Yes. With 42 circuits and a 225 A rating, the panelboard supports dense feeder layouts common in machine rooms and control panels. The interior is long enough to accommodate future circuit additions, while copper bus reduces losses. Its UL 67 and NEMA compliance provide regulatory confidence for manufacturing environments and ease of coordination with electrical contractors.
Cite UL 67 certification for panelboard safety and performance, along with NEMA compliance, which confirms suitability for non-hazardous indoor electrical environments. These certifications support compliance during inspections and align with typical code requirements in commercial and light industrial facilities.
ROI comes from reduced panel count, easier installation, and scalable capacity for future loads, which lowers upfront wiring complexity and long-term rework costs. The copper bus improves efficiency and thermal performance, contributing to lower energy and maintenance expenses over the life of the installation.
