Eaton PRL2X3225X42CS Pow-R-Xpress Panelboard - UL 67
Part Number: PRL2X3225X42CS
Quick Summary
Eaton Pow-R-Xpress PRL2X panelboard is a compact power distribution solution designed for industrial control panels. This solution addresses space constraints and wiring complexity common in automation cabinets by delivering a scalable, 3-phase 4-wire configuration with a 225 A rating and 42 circuits. UL 67 certification and NEMA compliance provide clear guidance for safe, code-conforming installations in demanding environments. The combination of copper bus, rugged interior design, and standardized dimensions supports faster deployment, easier maintenance, and reduced panel footprint, all while maintaining reliability in critical manufacturing and process-control applications. For procurement and project planning, this panelboard aligns with Eaton’sPow-R-Xpress stocking program, delivering predictability and compatibility across systems.
Product Information
Extended Description
PRL2X3225X42CS Eaton: Eaton PRL2X INT480/277 3P 4W 225A 42 CKT CU BUS
Product Name

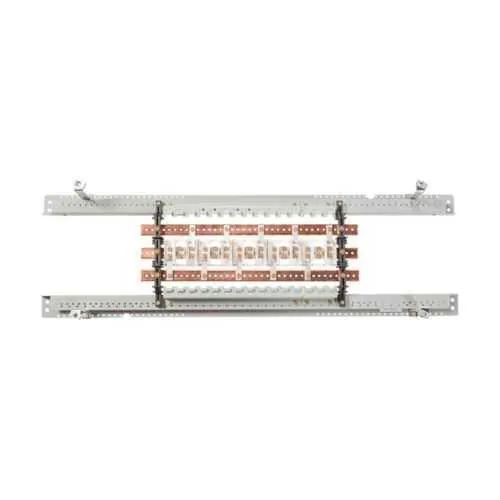

Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3225X42CS
UPC
786689363321
Product Length/Depth
43.75 in
Product Height
6.5 in
Product Width
18.25 in
Product Weight
31 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Number of circuits
42
Type
PRL2X INTERIOR
Amperage Rating
225 A
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3225X42CS
Feature → Business Impact → Application: The PRL2X3225X42CS uses a copper bus to minimize electrical resistance, improving overall distribution efficiency and reducing heat buildup in high-load automation panels. This translates into lower energy losses, enhanced fault tolerance, and longer component life in 480/277 VAC 3P4W installations such as machine controls and process lines. Application-wise, the panelboard is well-suited for factory automation racks where space is at a premium and reliable power distribution is essential. Feature → Business Impact → Application: With 42 circuits and 225 A amperage rating, this interior supports scalable configurations for growing control systems, enabling easy phase balancing and future expansion without rework. Application: control cabinets for packaging lines and assembly cells that require robust, high-capacity distribution. Feature → Business Impact → Application: UL 67 certification and NEMA compliance provide code assurance and expedited inspection readiness, reducing commissioning time and risk in regulated environments. Application: industrial equipment rooms and panel installations subject to strict standards. Feature → Business Impact → Application: The compact footprint (43.75 in length, 6.5 in height, 18.25 in width) simplifies enclosure planning and enables modular layouts, improving install speed and reducing field labor costs. Application: new machine builds and retrofit projects where space utilization matters. Feature → Business Impact → Application: Copper bus and PRL2X interior construction support reliable grounding and consistent conductor performance, delivering repeatable results in high-vibration environments typical of packaging and material handling lines. Application: harsh manufacturing floors where durability and maintenance predictability drive uptime. Feature → Business Impact → Application: Accessory compatibility and a standard 42-circuit configuration ease procurement of spares and upgrades, shortening lead times and improving project scheduling for panel rebuilds and expansions. Application: OEMs and integrators who standardize on Eaton components for faster sourcing and predictable lifecycle costs.
