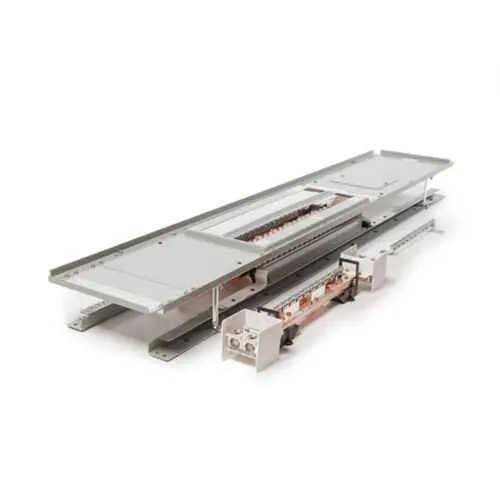

Eaton PRL2X3225X60A1 Panelboard - UL 67
Part Number: PRL2X3225X60A1
Quick Summary
Pow-R-Xpress PRL2X3225X60A1 panelboard delivers interior power distribution for 120/208V, 3-phase systems in commercial and light industrial facilities. This design helps combat common installation delays, wiring complexity, and space constraints by providing a 225 A, 60-circuit interior layout in a compact footprint. UL 67 listing and NEMA compliance support safe, code-ready installations, while aluminum bus and modular construction promote long-term reliability. Leveraging Eaton’s Pow-R-Xpress stocking program, customers gain faster procurement, predictable lead times, and scalable capacity for growing electrical loads.
Product Information
Extended Description
PRL2X3225X60A1 Eaton: Eaton Pow-R-Xpress PRL2X INTERIOR, 120/208V, 3PH 4W, 65K, 225A, 60 CKT, AL BUS, LONG INTERIOR
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3225X60A1
UPC
786689671464
Product Length/Depth
61 in
Product Height
6.5 in
Product Width
8.5 in
Product Weight
85 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Type
PRL2X INTERIOR
Amperage Rating
225 A
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3225X60A1
Feature → Business Impact → Application: 225 A amperage rating provides ample headroom for typical commercial loads, reducing the need for early panel replacements and enabling smoother load profiling in mid-size facilities. Application: retail centers, office buildings, light manufacturing. Feature → Business Impact → Application: 120/208 V, 3PH 4W configuration ensures compatibility with standard commercial distribution schemes, simplifying electrical planning and reducing field wiring errors. Application: interior electrical rooms and service entrances. Feature → Business Impact → Application: Aluminum bus material offers lighter weight, corrosion resistance, and easier field modifications, shortening installation times and lowering handling risk. Application: new builds and retrofit projects with space constraints. Feature → Business Impact → Application: UL 67 and NEMA compliance provide verified safety and performance benchmarks, speeding approvals and code adherence. Application: regulated environments and facilities with strict electrical standards. Feature → Business Impact → Application: 61 in length, 6.5 in height, 8.5 in width with 60 circuits delivers dense, scalable distribution in a compact footprint. Application: data centers, schools, and healthcare facilities. Feature → Business Impact → Application: Pow-R-Xpress stocking program compatibility enables faster procurement, reduced downtime, and more predictable maintenance cycles. Application: procurement teams pursuing standardization and quick replacements.
Get a Quick Quote for a Eaton PRL2X3225X60A1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3225X60A1?
Enquire Now
FAQs
The PRL2X3225X60A1 supports 120/208 V, 3-phase, 4-wire (3P4W) distribution with a 225 A amperage rating across up to 60 circuits. This configuration aligns with common commercial and light-industrial electrical systems, enabling straightforward integration into existing distribution schemes and reducing the need for early panel upgrades.
This panelboard leverages Eaton's Pow-R-Xpress stocking program for faster procurement, reducing lead times and project delays. Its aluminum bus construction aids field wiring and modular assembly, while UL 67/NEMA compliance streamlines approvals. The 61 inch length and compact footprint support tight electrical rooms and easier future upgrades without major rework.
Yes. The PRL2X3225X60A1 is UL 67 listed and NEMA compliant, providing recognized safety and performance standards for panelboard installations. This compliance helps with regulatory approvals, insurance considerations, and long-term reliability in both new builds and retrofit projects.
The panelboard measures 61 inches in length (depth), 6.5 inches in height, and 8.5 inches in width, with an approximate weight of 85 pounds. These dimensions support a practical balance between circuit density and serviceability in typical electrical rooms.
This interior panelboard is well-suited for commercial and light-industrial facilities requiring reliable 120/208 V distribution across 60 circuits. Typical applications include offices, retail spaces, data centers, healthcare facilities, and manufacturing plants where code-compliant, scalable power distribution and quick stocking are priorities.
