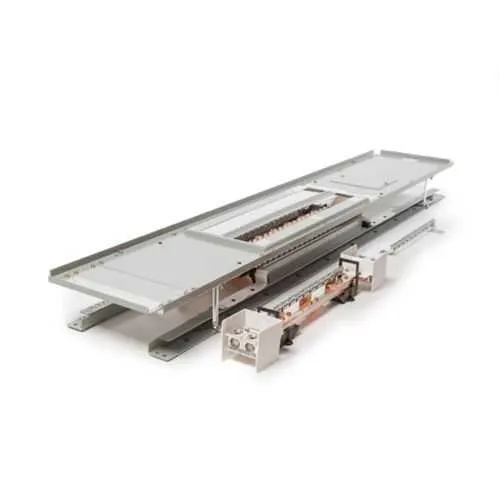

Eaton Pow-R-Xpress PRL2X3225X60CS Panelboard - UL 67
Part Number: PRL2X3225X60CS
Quick Summary
The Eaton Pow-R-Xpress PRL2X3225X60CS panelboard delivers compact, reliable power distribution for commercial and industrial panels. Installers face space constraints and long lead times; this interior design simplifies wiring and reduces installation risk. UL 67 listing and NEMA compliance ensure safety and readiness for interior electrical installations. Powered for 480/277V, 3-phase, 4-wire systems with a copper bus and a 225 A rating, it enables scalable, code-compliant expansion. Its compact 49-inch depth and 8.5 by 6.5 inch footprint simplify enclosure layouts, speeding installation and commissioning. This makes it a practical choice for OEMs, facilities upgrades, and service contractors aiming to streamline procurement and installation.
Product Information
Extended Description
PRL2X3225X60CS Eaton: Eaton Pow-R-Xpress PRL2X INTERIOR, 480/277V, 3PH 4W, 225A, 60 CKT, CU BUS, SHORT INTERIOR
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3225X60CS
UPC
786689671624
Product Length/Depth
49 in
Product Height
6.5 in
Product Width
8.5 in
Product Weight
87 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Type
PRL2X INTERIOR
Amperage Rating
225 A
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3225X60CS
The interior Pow-R-Xpress design streamlines wiring, enabling faster assembly and fewer field errors, which translates to shorter project timelines and lower labor costs. The copper bus reduces contact resistance, improving current carrying capacity and reliability in dense power-distribution racks. With a 225 A amperage rating and 60-circuit capacity, it supports mid-range loads without requiring oversized gear, cutting equipment footprints and total system cost. The 480/277V, 3PH 4W configuration matches common industrial and commercial power rails, enabling straightforward integration with existing feeders and switchgear. UL 67 certification and NEMA compliance provide regulatory confidence and safer installation in interior panels. The unit’s 49-inch length and 8.5 by 6.5 inch footprint help optimize panel space in constrained enclosures, reducing retrofit complexity and downtime. In practice, maintenance and future expansions become more predictable due to standardized components and a proven stocking program that improves lead times for critical parts.
Get a Quick Quote for a Eaton PRL2X3225X60CS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3225X60CS?
Enquire Now
FAQs
PRL2X3225X60CS is an interior panelboard designed for 480/277V, 3PH 4W systems with a 225 A rating and 60 circuit capacity. It uses copper bus for low impedance connections and UL 67 compliance, making it suitable for retrofit and new installs in commercial or light industrial panels. Ensure enclosure dimensions and mounting provisions meet the 49 in length and 8.5 x 6.5 in footprint.
Key specifications include 225 A amperage rating, 480/277V operation, 3-phase, 4-wire configuration, 60 circuit capacity, copper bus construction, and UL 67 certification with NEMA compliance. The unit is designed for interior use and aligns with common low-voltage distribution practices, enabling reliable power distribution in mid-size commercial and light industrial applications.
This panelboard excels in commercial buildings, manufacturing facilities, and service environments requiring reliable interior power distribution. Ideal for lighting and motor control panels, machine controls, and upgrade projects where space is constrained and quick installation is valued. Its 225 A rating and 60 circuits support medium-demand circuits while staying within standard enclosure footprints.
PRL2X3225X60CS is UL 67 listed and NEMA compliant, ensuring safety, electrical integrity, and compatibility with interior installations. These certifications simplify code compliance during inspections and streamline procurement for regulated environments, including commercial facilities and light industrial settings where interior panelboards must meet stringent safety and performance criteria.
The stock-optimized Pow-R-Xpress family and standard interior design translate to faster procurement and reduced lead times, lowering project schedules and downtime. The copper bus and robust 225 A/60-circuit capacity improve reliability, reducing maintenance costs. Eaton’s documentation and specification resources—plus compatible accessories—support easier maintenance, future upgrades, and retrofit ROI for mid-size facilities.
