Eaton PRL2X3225X60CS1 Panelboard - 225 A UL 67
Part Number: PRL2X3225X60CS1
Quick Summary
The Eaton Pow-R-Xpress PRL2X panelboard is a compact interior low-voltage distribution solution for commercial and light-industrial applications. Project delays often stem from lengthy installation, uncertain code compliance, and limited space for switchgear. UL 67 certification and NEMA-compliant construction support safety and regulatory adherence, while copper bus design ensures reliability. This interior panelboard delivers faster installation and predictable performance for utility and OEM projects, with Pow-R-Xpress compatibility and streamlined procurement workflows. For procurement teams, it translates to reduced field labor, standardized spares, and simplified maintenance planning. Engineers value documented specifications and access to Eaton brochures for design validation.
Product Information
Extended Description

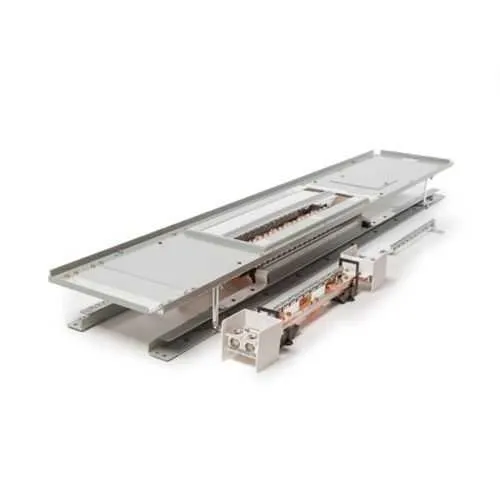

PRL2X3225X60CS1 Eaton: Eaton Pow-R-Xpress PRL2X INTERIOR, 120/208V, 3PH 4W, 65K, 225A, 60 CKT, CU BUS, SHORT INTERIOR
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3225X60CS1
UPC
786689671600
Product Length/Depth
49 in
Product Height
6.5 in
Product Width
8.5 in
Product Weight
87 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Type
PRL2X INTERIOR
Amperage Rating
225 A
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3225X60CS1
Feature: The Pow-R-Xpress interior layout minimizes the panel footprint, enabling a smaller enclosure and easier routing. Impact: A reduced cabinet size translates to lower enclosure costs, less material handling, and faster wiring, which directly cuts project lead times. Application: Ideal for interior power-distribution applications in commercial spaces, retail, and light-industrial facilities where floor space is at a premium and installation windows are tight. In practice, engineers appreciate consistent component footprints that support standardized spares across sites. Feature: 120/208V, 3PH 4W, 225 A ratings provide versatile feeding for typical building loads. Impact: This rating ensures headroom for lighting and motor circuits while enabling simpler calculation of feeder sizes and protective devices. Application: Suitable for service distribution in offices, assembly lines, and data-communication rooms that require reliable power with straightforward wiring. The specification aligns with common OEM interfaces for rapid project scoping. Feature: Copper bus material delivers high conductivity and robust current sharing. Impact: Improves voltage regulation, reduces heat rise, and enhances long-term reliability under dynamic loads. Application: Especially beneficial for critical lighting, HVAC controllers, and emergency systems in production environments. Feature: NEMA compliant and UL 67 certified construction. Impact: Eases regulatory approvals, simplifies inspections, and strengthens safety compliance. Application: Ideal for commercial buildings, data centers, and process facilities with strict electrical standards. Feature: 60 circuits in a compact interior with a 49 in depth. Impact: Increases circuit density while maintaining serviceability and standard wiring practices. Application: Suited for panel upgrades and modernization projects where space is constrained but capacity is required. This design is compatible with Eaton’s stocking program and supported by available brochures to streamline procurement and installation.
Get a Quick Quote for a Eaton PRL2X3225X60CS1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3225X60CS1?
Enquire Now
FAQs
Begin with the 49 in depth, 8.5 in width, and 6.5 in height footprint to ensure a compatible enclosure. Verify the 225 A rating against feeder calculations for 120/208V, 3PH 4W circuits and confirm copper bus routing fits the planned cable tray layout. Leverage Eaton's installation guides and the Pow-R-Xpress program brochures for step-by-step wiring and field-assembly best practices.
Yes. The panelboard is designed for 120/208V, 3PH 4W service, with a 225 A rating and copper bus. It fits interior distribution needs in commercial spaces and light-industrial environments, providing robust circuit capacity while maintaining a compact cabinet footprint and straightforward wiring.
The PRL2X3225X60CS1 carries UL 67 certification and is NEMA compliant, signaling adherence to essential safety and performance standards for interior panelboards used in regulated facilities and commercial installations.
Key benefits include a copper bus for low resistance and reliable current sharing, a compact interior footprint that reduces enclosure size, and a 225 A rating that supports common loads. The design simplifies wiring and maintenance planning, while Eaton’s brochures and spec sheets support ongoing design validation and parts provisioning.
Download the Eaton specification sheet and brochures listed in the product downloads. These resources include the Pow-R-Xpress stocking program flyers and the PRL2X3225X60CS1 datasheet, providing installation guidance, wiring diagrams, and part compatibility information.
