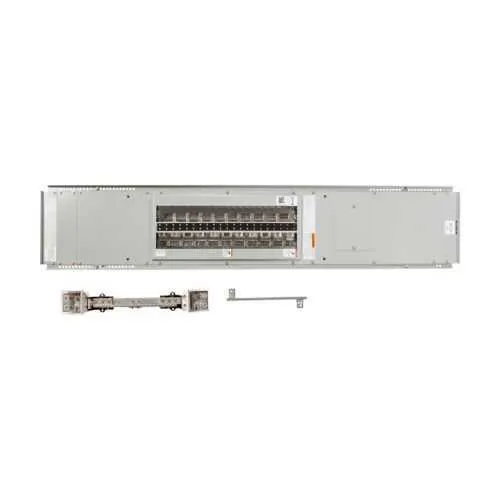

Eaton PRL2X3400B42A Panelboard - UL 67, 400A MCB & SFB
Part Number: PRL2X3400B42A
Quick Summary
Eaton Pow-R-Xpress PRL2X panelboard delivers compact, ready-to-install power distribution for 480/277V 3P 4W systems in industrial facilities. Operators wrestle with space constraints and lengthy wiring, and this interior panelboard helps reduce field labor by integrating 42 circuits with MCBs and SFBs for faster setup. UL 67 certification plus an aluminum bus support reliable operation, while the 400A rating and 72-inch length enable scalable growth. By aligning with Pow-R-Xpress stocking programs, it delivers predictable lead times and procurement consistency. In short, this solution supports fast installation, dependable performance, and future-ready distribution for demanding industrial environments.
Product Information
Extended Description
PRL2X3400B42A Eaton: EATON PRL2X INTERIOR 480/277 3P 4W 400A MCB & SFB 42 CKT AL
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL2X3400B42A
UPC
786689770808
Product Length/Depth
72 in
Product Height
4.25 in
Product Width
8 in
Product Weight
51 lb
Certifications
UL 67
Bus material
Aluminum
Type
PRL2X INTERIOR
Amperage Rating
400A
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3400B42A
Feature: Interior PRL2X design with 72 in length and 42 circuits. Business Impact: Maximizes circuit density in a compact footprint, reducing enclosure footprint and wiring complexity. Application: Ideal for manufacturing lines and process equipment where space is at a premium and high circuit count is required. Feature: 400A amperage rating. Business Impact: Provides headroom for peak loads and future expansion without swapping panels. Application: Main feeder or sub-feed applications in electrical rooms serving machinery clusters and assembly lines. Feature: Aluminum bus material. Business Impact: Delivers strong mechanical performance with lighter weight, improving installation handling and vibration resistance. Application: Factory floor environments where ruggedness and ease of transport matter. Feature: UL 67 certification. Business Impact: Ensures adherence to recognized panelboard safety standards, reducing compliance risk and inspection time. Application: Facilities subject to strict electrical codes and frequent audits. Feature: 72 in L × 8 in W × 4.25 in H footprint. Business Impact: Combines long-term capacity with a narrow profile for easier routing and reduced enclosure depth. Application: Wall-mounted or rear-access installations in control rooms and electrical closets. Feature: Integrated MCB & SFB. Business Impact: Minimizes field wiring and enclosure space, accelerating commissioning and maintenance. Application: New builds and upgrades where fast, reliable protection and switching are required.
Get a Quick Quote for a Eaton PRL2X3400B42A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3400B42A?
Enquire Now
FAQs
The PRL2X3400B42A is designed for interior power distribution at 480/277V, 3-phase, 4-wire configurations. It supports a 72 inch long enclosure with 42 circuits, incorporating MCBs and SFBs for streamlined commissioning. This panel is UL 67 certified and uses aluminum bus, making it suitable for industrial facilities requiring high circuit density in a compact footprint.
The panelboard provides a 400A amperage rating, suitable for main feeders and sub-feed applications in moderate-to-heavy industrial environments. It uses aluminum bus material, which offers good strength-to-weight characteristics, reduced weight for handling during installation, and reliable electrical performance under vibration and thermal cycling.
Yes. The PRL2X3400B42A carries UL 67 certification, indicating compliance with recognized standards for panelboards. This certification supports safe operation, reduces regulatory risk during audits, and helps ensure code-compliant installation in commercial and industrial facilities.
Pow-R-Xpress PRL2X3400B42A is an interior, pre-engineered panelboard with integrated MCBs and SFBs, designed to minimize field wiring and simplify mounting. The combination of a ready-to-install interior unit, 42 circuits, and a 72 inch length reduces labor and commissioning time, delivering faster project turnover and tighter installation schedules.
Typical applications include industrial facilities with multiple machine clusters, packaging lines, and process equipment requiring high circuit density in a compact enclosure. The 480/277V 3P 4W configuration, 400A rating, and aluminum bus support reliable power distribution for manufacturing plants, data processing areas, and control rooms while enabling scalable expansion as loads grow.
