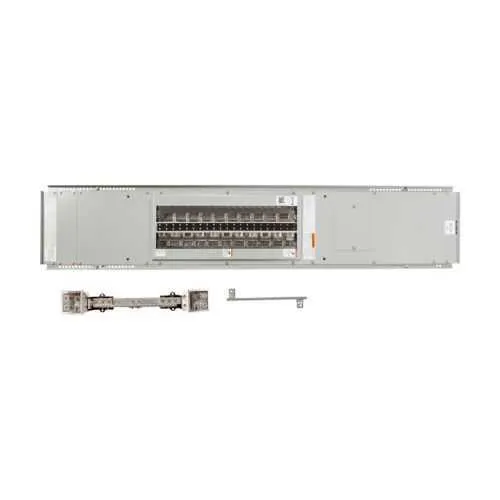

Eaton PRL2X3400B42A1 Panelboard Interior - UL 67
Part Number: PRL2X3400B42A1
Quick Summary
The Eaton PRL2X3400B42A1 panelboard interior distributes power reliably for industrial control panels. Design and installation challenges like wiring density, space constraints, and safety risk are common. UL 67 certification, aluminum bus construction, and a 400 A rating reinforce reliability and code compliance. This interior panelboard is designed for fast, scalable installations in 120/208 V three‑phase four‑wire systems. By combining factory-installed MCBs with Pow-R-Xpress stock support, it delivers time savings and predictable performance. Engineers benefit from clear wiring plans, reduced field labor, and improved maintenance planning. Its aluminum bus and 72-inch length enable scalable layouts for growing facilities while maintaining compact enclosure footprints.
Product Information
Extended Description
PRL2X3400B42A1 Eaton: EATON PRL2X INTERIOR 120/208 3P 4W 400A MCB & SFB 42 CKT AL
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL2X3400B42A1
UPC
786689770815
Product Length/Depth
72 in
Product Height
4.25 in
Product Width
8 in
Product Weight
51 lb
Certifications
UL 67
Bus material
Aluminum
Type
PRL2X INTERIOR
Amperage Rating
400A
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3400B42A1
Feature: 400 A amperage rating and 42 circuits. Business Impact: Supports larger loads and reduces the need for upstream distribution upgrades, improving system resilience. Application: Suitable for 120/208 V three‑phase four‑wire panel installations in manufacturing lines. Feature: Factory-installed MCBs and SFB for 42 circuits. Business Impact: Cuts field wiring time and ensures consistent protection, accelerating commissioning. Application: Ideal for new builds and panel upgrades where installation speed matters. Feature: Aluminum bus material. Business Impact: Lighter weight, easier installation, and robust durability with corrosion resistance. Application: Dense wiring runs and long interior lengths common in control rooms. Feature: Large interior footprint (72 in length, 8 in width, 4.25 in height). Business Impact: Provides ample space for organized wiring and future expansion, lowering rework costs. Application: Suitable for expanding facilities needing scalable layouts while preserving enclosure space. Feature: UL 67 certified and Pow-R-Xpress compatibility. Business Impact: Ensures regulatory compliance and fast procurement, reducing lead times. Application: Industrial facilities prioritizing safety and supply chain efficiency.
Get a Quick Quote for a Eaton PRL2X3400B42A1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3400B42A1?
Enquire Now
FAQs
The PRL2X3400B42A1 interior panelboard is designed for industrial control panels operating at 120/208 V in three‑phase four‑wire systems. Its 400 A rating and 42 circuit capacity make it ideal for manufacturing lines, facility distribution, and automation racks where space is at a premium and reliable protection is required.
The panelboard interior carries UL 67 certification, ensuring compliance with safety standards for panelboards. This listing supports safe integration into commercial and industrial electrical distributions and simplifies inspection and commissioning processes.
The unit offers a 72 inch length, 8 inch width, and 4.25 inch height, with an approximate weight of 51 pounds. These dimensions facilitate ample wiring space while fitting within typical control room enclosures and panel housings.
Aluminum bus bars reduce overall panel weight, ease field handling, and resist corrosion in service environments. This translates to simpler installation, lower labor costs during wiring, and long-term durability in automated facilities with frequent access to the interior.
Factory-installed MCBs and SFB on a 42‑circuit interior minimize on‑site assembly, while Pow-R-Xpress compatibility helps with rapid procurement and lead-time reduction. Together, they shorten commissioning cycles and improve project ROI by delivering a ready-to-wire panelboard straight from stock.
