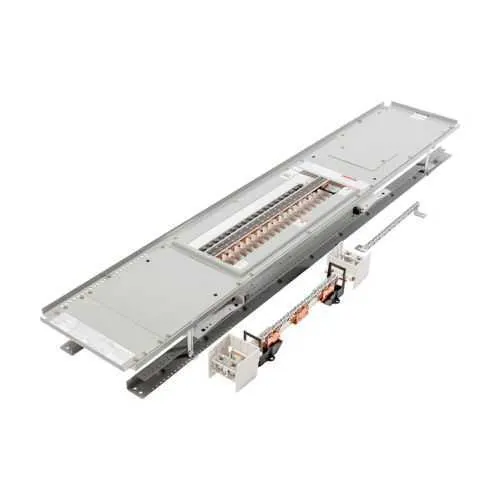

Eaton PRL2X3400B42C Pow-R-Xpress Panelboard - UL 67
Part Number: PRL2X3400B42C
Quick Summary
The Eaton PRL2X3400B42C Pow-R-Xpress panelboard is a 480/277V interior distribution solution for three-phase, four-wire systems used in commercial and light industrial facilities. Upgrading power distribution often introduces space constraints, downtime, and complex wiring challenges that slow project timelines. This panelboard carries UL 67 certification and is designed with a copper bus to ensure low impedance and reliable fault clearing, while delivering up to 400A and 42 circuits in a long interior enclosure. Its compact, high-density footprint translates to faster installations and lower total cost of ownership, making it a practical choice for engineering teams seeking scalable, compliant distribution with proven performance.
Product Information
Extended Description
PRL2X3400B42C Eaton: EATON PRL2X INTERIOR 480/277 3P 4W 400A MCB & SFB 42 CKT CU
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL2X3400B42C
UPC
786689770846
Product Length/Depth
72 in
Product Height
4.25 in
Product Width
8 in
Product Weight
56 lb
Certifications
UL 67
Bus material
Copper
Type
PRL2X INTERIOR
Amperage Rating
400A
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3400B42C
Feature: 400A Amperage Rating → Business Impact: Ensures capacity for peak loads and headroom for future expansion, reducing the need for early panel replacements. Application: 480/277V three-phase systems in mid- to large-volume facilities. The outcome is improved reliability and lower equipment refresh costs in mission-critical environments. Feature: 42 circuits with MCB & SFB protection → Business Impact: Integrated protection minimizes panelboard footprint and speeds wiring, testing, and commissioning. Application: High-density interior distribution where space is at a premium. Result: faster project delivery and reduced field labor. Feature: Copper bus material → Business Impact: Superior conductivity and reduced heat buildup lead to steadier voltage profiles and longer device life. Application: Continuous-duty power distribution in demanding applications. Outcome: improved energy efficiency and lower maintenance costs. Feature: Interior PRL2X design with 72 in length → Business Impact: Enables high circuit counts in a single enclosure, simplifying wiring schemes and inventory. Application: Space-constrained electrical rooms in commercial buildings. Outcome: streamlined installation and easier future modifications. Feature: UL 67 certification → Business Impact: Demonstrates compliance with recognized safety standards, supporting regulatory acceptance and insurer confidence. Application: All interior panelboard installations where safety compliance is required. Outcome: risk mitigation and smoother project approvals. Feature: Pow-R-Xpress stocking program compatibility → Business Impact: Faster procurement and predictable lead times for project scheduling. Application: Projects requiring rapid deployment of reliable panelboards. Outcome: reduced project cycle times and improved supply chain resilience.
Get a Quick Quote for a Eaton PRL2X3400B42C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3400B42C?
Enquire Now
FAQs
The PRL2X3400B42C is designed for interior 480/277V three-phase, four-wire distribution in commercial and light industrial facilities. It accommodates up to 42 circuits within a 72 inch long interior enclosure, using copper bus for reliable current paths. This makes it suitable for retrofit projects and new builds where space and wiring efficiency matter.
A 400A amperage rating provides ample headroom for typical commercial loads and short-term peak demand. It supports high-density distribution while maintaining voltage stability and protection. For project planning, this means fewer mid-project panel upgrades and simpler feeders, reducing both risk and total installed cost.
Yes. The panelboard is an interior 480/277V, three-phase, four-wire solution geared toward commercial and light industrial environments, including manufacturing. Its copper bus and UL 67 certification contribute to safe, efficient operation in demanding settings, with 42 circuit capability to handle multiple feeders and branch circuits.
The PRL2X3400B42C is part of Eaton’s Pow-R-Xpress stocking program, designed to streamline procurement with predictable lead times. This helps project teams reduce downtime during installation and simplifies scheduling, especially for mid- to large-scale electrical builds.
The panelboard carries UL 67 certification, indicating compliance with recognized safety standards for panelboards. This certification supports regulatory acceptance, insurer confidence, and safer operation in electrical rooms. For specific project requirements, consult the accompanying Eaton specification sheet and local codes.
