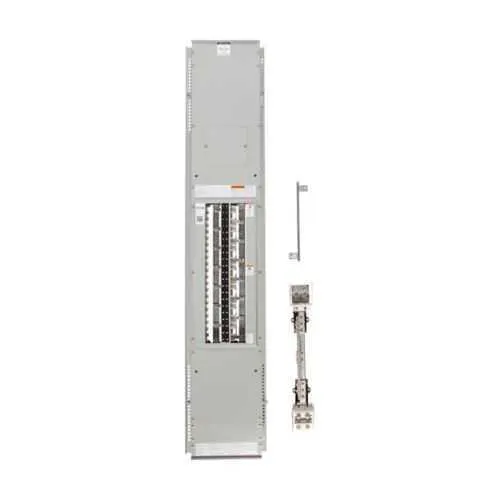

Eaton PRL2X3400X42A Panelboard - UL 67, 400A, 42 Circuits
Part Number: PRL2X3400X42A
Quick Summary
Eaton Pow-R-Xpress PRL2X3400X42A panelboard provides interior 480/277V power distribution for 3-phase, 4-wire systems. For projects with tight spaces and aggressive commissioning schedules, installation can be challenging without a compact, factory-built solution. UL 67 certification and NEMA compliance ensure safety and regulatory alignment across industrial, commercial, and institutional environments. Designed to streamline procurement and service, it helps reduce labor time while delivering reliable, code-compliant power distribution. This panelboard works seamlessly with Eaton Pow-R-Xpress stocking programs, accelerating availability and helping facilities stay online during upgrades. Its interior design and aluminum bus enable easier maintenance and longer service life in demanding environments.
Product Information
Extended Description
PRL2X3400X42A Eaton: Eaton PRL2X INTERIOR 480/277 3P 4W 400A 42 CKT AL BUS
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3400X42A
UPC
786689363369
Product Length/Depth
61 in
Product Height
6 in
Product Width
15 in
Product Weight
43 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Number of circuits
42
Type
PRL2X INTERIOR
Amperage Rating
400A
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3400X42A
Feature: Interior 480/277V distribution in a 3P 4W configuration at 400A with 42 circuits. Business Impact: Enables centralized, scalable power distribution for complex facilities, reducing the need for multiple smaller panels and streamlining electrical room layouts. Application: Ideal for manufacturing lines, commercial spaces, and light industrial applications where footprint and load management matter. The pattern continues with each feature: Benefit: Improved space efficiency translates to faster commissioning and lower installation costs, while maintaining compliance with safety standards. Application: Suitable for new builds and retrofits where reliable power delivery is essential. Feature: Aluminum bus material reduces weight and improves corrosion resistance, lowering handling risk during installation and maintenance. Benefit: Easier field service, reduced shipping costs, and longer lifecycle. Application: Indoor environments with frequent access and routine inspections. Feature: Exact dimensions—61 in length/depth, 6 in height, 15 in width—and a 43 lb weight support precise space planning and easier door/cover removal. Benefit: Predictable fit in restricted electrical rooms; faster ladder diagrams and maintenance checks. Application: Retrofit projects in tight enclosures where upgrade timing is critical. Feature: Compliance—UL 67 certification and NEMA compliance—ensures regulatory alignment and safer deployments. Benefit: Mitigates risk of non-compliance fines and rework; improves customer peace of mind. Application: All regulated facilities, including data centers, manufacturing floors, and healthcare-related electrical environments. Feature: Compatibility with Pow-R-Xpress stocking program; Benefit: Quicker availability, reduced downtime, and streamlined procurement. Application: Projects with aggressive schedules or remote locations needing rapid lead times. Feature: 42 circuits provide ample headroom for future expansion; Benefit: Scalable design supports growing load profiles and spare capacity. Application: Facilities planning for lifecycle resilience and long-term reliability.
Get a Quick Quote for a Eaton PRL2X3400X42A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3400X42A?
Enquire Now
FAQs
For installation, ensure adequate clearance in the electrical room and plan the 61 inch depth, 15 inch width, and 6 inch height to accommodate doors and space for wiring. Use the aluminum bus for lighter handling, verify 480/277V 3P4W connections, and confirm UL 67 and NEMA compliance requirements are met. Pre-assembly and factory wiring can reduce field errors and accelerate commissioning.
Yes. The PRL2X3400X42A is designed to align with Eaton's Pow-R-Xpress stocking program, enabling faster parts availability and simplified procurement. This compatibility helps shorten lead times, reduces project downtime, and supports easier maintenance planning during upgrades or expansions.
The panelboard is rated for 400A, supports 42 circuits, and operates at 480/277V. It carries UL 67 certification and is NEMA compliant, providing essential safety and regulatory alignment for interior power-distribution applications in commercial and light-industrial settings.
This interior panelboard is well-suited for commercial spaces and light-industrial environments that require reliable 3-phase, 4-wire distribution. It supports tight space installations and projects needing scalable capacity for future load growth, making it ideal for manufacturing lines, data centers, and large office facilities.
Maintenance benefits include lighter handling due to aluminum bus, simpler access to 42 circuits, and a compact footprint that reduces routine inspection time. ROI is accelerated by faster procurement through Pow-R-Xpress, reduced field wiring errors, and lower downtime during upgrades, contributing to lower total cost of ownership over the system’s life.
