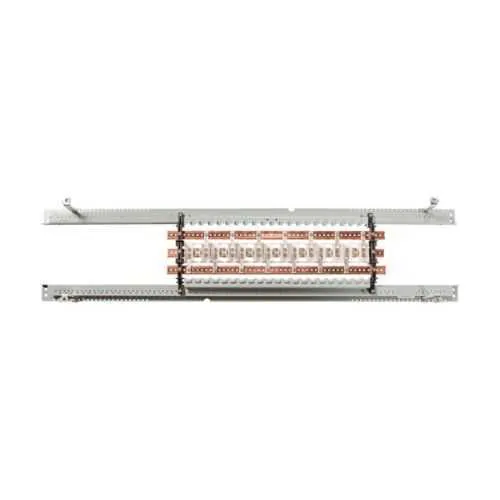

Eaton Pow-R-Xpress PRL2X3400X42CS Panelboard - UL 67
Part Number: PRL2X3400X42CS
Quick Summary
Pow-R-Xpress PRL2X3400X42CS panelboard delivers reliable 480/277V distribution for 3P 4W industrial power networks. For engineers, the challenge is fast, correct installation while meeting critical codes and space constraints. This interior panelboard is UL 67 certified and NEMA compliant, with copper bus for durability and safer connections. It accommodates 42 circuits at 400A, enabling tighter feeder management and reduced field wiring. The interior-friendly design supports straightforward wiring, quick field modifications, and seamless integration with Eaton’s Pow-R-Xpress ecosystem in harsh environments. With Pow-R-Xpress, procurement is streamlined and uptime improves, delivering measurable reductions in install time and total cost of ownership for industrial facilities.
Product Information
Extended Description
PRL2X3400X42CS Eaton: Eaton PRL2X INTERIOR NO TFL 480/277 3P 4W 400A 42 CKT CU BUS
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3400X42CS
UPC
786689363451
Product Length/Depth
46 in
Product Height
6 in
Product Width
15 in
Product Weight
108 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Number of circuits
42
Type
PRL2X INTERIOR
Amperage Rating
400A
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3400X42CS
The PRL2X3400X42CS panelboard ships with a 400A amperage rating, 42 circuits, and copper bus, delivering low electrical resistance and excellent heat dissipation under load. This combination supports robust fault current paths and cleaner conductor terminations, reducing contact resistance over the life of the installation. Field engineers gain flexibility to stagger feeders and reduce panel crowding, while maintenance teams benefit from consistent torque and fewer creeping connections. In practice, this means fewer outages and a more predictable distribution backbone for critical loads. Copper bus also contributes to longevity in demanding industrial environments, reducing routine maintenance and spare parts needs. The interior design helps with straightforward wiring practices, short training times, and easy integration into existing Eaton-powered distribution ecosystems. The result is a reliable, scalable solution that supports plant uptime and reduces lifecycle costs.
Get a Quick Quote for a Eaton PRL2X3400X42CS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3400X42CS?
Enquire Now
FAQs
PRL2X3400X42CS is designed for interior 480/277V, 3-phase, 4-wire configurations. It offers 400A capacity and 42 circuits, with a copper bus for reliable connections and efficient heat management. Its interior design supports straightforward wiring, standardized mounting, and compatibility with Eaton’s Pow-R-Xpress family, enabling faster commissioning and scalable feeder strategies in industrial facilities.
Key specs include a 400A amperage rating, 42 circuits, 480/277V operation, 3P 4W configuration, copper bus material, interior enclosure, and UL 67 certification with NEMA compliance. This combination supports robust fault management, low resistance terminations, and easy coordination with compatible switchgear and downstream feeders in lighting and emergency applications.
Yes. The PRL2X3400X42CS is well-suited for interior lighting and emergency circuits in industrial settings. Its 42-circuit capacity paired with 400A rating accommodates substantial feeder needs, while the copper bus enhances reliability under peak loads. The compact footprint and Eaton compatibility simplify installation in constrained electrical rooms and streamline integration with existing power distribution strategies.
The panelboard carries UL 67 certification and is NEMA compliant, signaling conformance to recognized safety and performance standards. These certifications facilitate regulatory approvals, reduce commissioning risk, and support audit readiness. They also reinforce reliability for critical lighting and emergency systems in commercial and industrial environments.
Pow-R-Xpress panels like PRL2X3400X42CS reduce installation labor and material waste through standardized components and faster stocking. The copper bus and durable hardware lower maintenance cycles and improve uptime, delivering a lower total cost of ownership over the panel’s life. For procurement teams, the streamlined sourcing and compatibility within Eaton’s ecosystem further shorten project timelines and improve predictability.
