Eaton PRL2X3400X60AS Panelboard - UL 67 Certified
Part Number: PRL2X3400X60AS
Quick Summary
Pow-R-Xpress PRL2X3400X60AS panelboard by Eaton is a reliable interior power distribution solution for 480/277V, 3-phase, 4-wire systems in commercial and light industrial facilities. The design prioritizes space efficiency, wiring simplicity, and faster serviceability to minimize downtime during upgrades. With UL 67 certification and NEMA compliance, this panelboard meets stringent safety and performance standards, while the aluminum bus offers strong conductivity with reduced weight. The 400A rating and 60 circuit capacity support scalable distribution across multiple loads, from lighting to controls in automation panels. By aligning with NEC guidelines and modular interior architecture, it helps facilities reduce total cost of ownership and improve maintenance turnaround for electrical distribution tasks.
Product Information
Extended Description

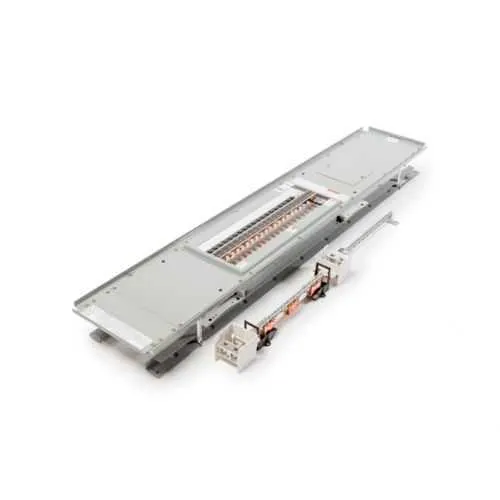

PRL2X3400X60AS Eaton: Eaton Pow-R-Xpress PRL2X INTERIOR, 480/277V, 3PH 4W, 400A, 60 CKT, AL BUS, SHORT INTERIOR
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3400X60AS
UPC
786689671525
Product Length/Depth
61 in
Product Height
6.5 in
Product Width
8.5 in
Product Weight
98 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Type
PRL2X INTERIOR
Amperage Rating
400A
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3400X60AS
Feature: 400A amperage rating → Business Impact: enables substantial load distribution while allowing smaller feeder configurations and fewer disconnects, reducing upfront wiring and space needs. Application: ideal for mid-size commercial facilities and light industrial sites powering lighting, HVAC, and control circuits. Feature: 60 circuit capacity → Business Impact: high-density layout minimizes panel count and maintenance points, lowering total cost of ownership. Application: data centers, retail campuses, and manufacturing lines that consolidate power feeds in a single enclosure. Feature: 480/277V, 3PH 4W → Business Impact: aligns with common building standards and motor loads, reducing transformer requirements and improving efficiency. Application: interior power distribution for lighting, outlets, and small motors in commercial buildings. Feature: Aluminum bus → Business Impact: lighter weight and excellent conductivity simplify installation and handling, especially during retrofit projects. Application: easier field assembly and rapid commissioning in tight spaces. Feature: UL 67 certification and NEMA compliance → Business Impact: ensures safety and regulatory alignment, reducing risk of noncompliance and warranty issues. Application: critical infrastructure in corporate facilities where code compliance is mandatory. Feature: Interior PRL2X design and 61 in depth footprint → Business Impact: modular interior enables quick reconfiguration and future expansion, minimizing downtime. Application: interior cabinets and distribution rooms with space constraints and evolving load profiles.
Get a Quick Quote for a Eaton PRL2X3400X60AS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3400X60AS?
Enquire Now
FAQs
Plan for proper mounting in an interior enclosure, allow clearance for 61 in depth, and ensure support rails accommodate the 98 lb weight. Verify aluminum bus compatibility with your existing feeders, follow NEC guidelines, and confirm UL 67/NEMA compliance. This model supports straightforward field wiring and modular interior configurations for rapid commissioning.
The 400A rating accommodates substantial feeder loads while the 60 circuit capacity enables dense distribution within a single enclosure, reducing interconnecting cabling and panel count. This improves fault isolation by localizing disturbances to a single section and streamlines maintenance, which is especially advantageous for lighting, outlets, and control circuits in mixed-use commercial spaces.
Yes. Designed for interior 480/277V 3PH 4W service, it supports high-density circuit layouts and reliable power delivery for lighting, automation, and small motors. Its aluminum bus reduces weight during installation, while UL 67 and NEMA compliance provide assurance for regulated environments typical of commercial and light manufacturing facilities.
The PRL2X3400X60AS carries UL 67 certification and is NEMA compliant, signaling adherence to safety, electrical performance, and construction quality standards. For buyers, these certifications reduce regulatory risk, simplify code approvals, and help secure warranties and insurance coverage, particularly in facilities with strict permitting or energy-management programs.
Consider routine inspection of connections, verification of bus integrity, and periodic thermal checks to ensure consistent performance. The panel’s modular interior supports quick reconfiguration, reducing downtime during upgrades. Over time, fewer panels and simplified wiring lower installation and service costs, improving total cost of ownership in active distribution environments.
