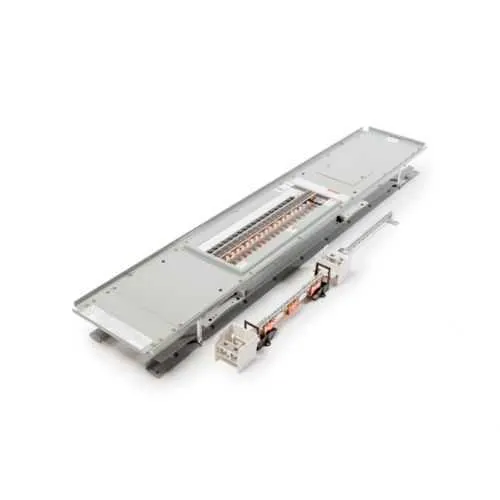

Eaton PRL2X3400X60CS1 Panelboard - UL 67
Part Number: PRL2X3400X60CS1
Quick Summary
Eaton PRL2X3400X60CS1 panelboard is a Pow-R-Xpress interior distribution solution for 120/208V, 3-phase systems. Upgrading legacy panels often means navigating wiring complexity, space constraints, and downtime that disrupts production. UL 67 certification and NEMA compliance help ensure safe operation in regulated environments, while copper bus and a 400A rating support scalable loads. This interior panelboard offers compact dimensions and straightforward installation, enabling faster deployments in electrical rooms. With Eaton’s Pow-R-Xpress stocking program, procurement and maintenance teams can reduce lead times, simplify part replacement, and minimize spare-part inventory, delivering tangible business value in manufacturing, processing, and automation settings.
Product Information
Extended Description
PRL2X3400X60CS1 Eaton: Eaton Pow-R-Xpress PRL2X INTERIOR, 120/208V, 3PH 4W 65K 400A 60 CKT, CU BUS, SHORT INTERIOR
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3400X60CS1
UPC
786689671556
Product Length/Depth
61 in
Product Height
6.5 in
Product Width
8.5 in
Product Weight
108 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Type
PRL2X INTERIOR
Amperage Rating
400A
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3400X60CS1
400A amperage rating and copper bus deliver robust power handling with minimal resistance, supporting critical loads without overstressing feeders. Lower impedance reduces voltage drop across feeders, enabling tighter control of lighting and motor circuits in demanding environments. This combination also improves fault clearing response in protection schemes, contributing to safer, more reliable plant operation. Dimensions of 61 inches in length and a compact 6.5 by 8.5 inch footprint create an efficient fit in restricted electrical rooms, simplifying new installations and retrofit projects. Right-sized interiors reduce cabinet depth conflicts with equipment and service aisles, accelerating commissioning and reducing on-site adaptation time. Manufactures and contractors appreciate consistent enclosure geometry, which speeds procurement and reduces surprises during field mounting. Sixty circuits configured within the PRL2X interior design provide scalable expansion while maintaining organized wiring and labeling. This layout supports phased capacity upgrades as facility loads grow, avoiding full panel replacements and limiting downtime. Interchangeable bus and modular actuator options streamline maintenance, letting technicians swap sections with minimal impact on adjacent circuits. UL 67 certification and NEMA compliance provide regulatory assurance for facilities in regulated industries. This helps procurement avoid retrofit risks and ensures adherence to codes. With copper bus and tight-fitting interior, installers benefit from lower contact resistance, improved longevity, and reduced corrosion risk in harsh environments. Pow-R-Xpress stocking support accelerates part availability, minimizes downtime, and simplifies procurement through a proven supply program. Compatibility with copper-bus PRL2X interiors means faster field replacements and easier retrofits for existing Eaton ecosystems. Customers report lower total cost of ownership due to reduced spare-part inventories, faster service response, and predictable maintenance cycles.
Get a Quick Quote for a Eaton PRL2X3400X60CS1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3400X60CS1?
Enquire Now
FAQs
PRL2X3400X60CS1 is designed as an interior panelboard compatible with 120/208V, 3-phase, 4-wire systems and copper bus frameworks. Its 61 inch length and compact 8.5 by 6.5 inch profile fit standard electrical rooms while preserving clear labeling and service access. The unit uses a 400A rating and supports up to 60 circuits, with UL 67 certification and NEMA compliance to meet typical plant codes.
This panelboard provides a 65 kA short-circuit rating and copper bus construction, which minimizes voltage drop and improves protection coordination in fast-clearing fault conditions. The 60-circuit interior layout supports flexible wiring schemes with robust conductors suitable for industrial applications, while staying within a compact interior footprint that simplifies installation.
PRL2X3400X60CS1 is well-suited for industrial automation, manufacturing lines, packaging, and process control environments where reliable 400A distribution and 60 circuits are required in a compact interior panelboard. It pairs with Pow-R-Xpress stocking to accelerate replacements during line upgrades and supports quick expansion as loads grow in evolving facilities.
The panelboard carries UL 67 certification and is NEMA compliant, reflecting adherence to recognized electrical safety and performance standards. These certifications simplify regulatory approvals, aid audits, and provide confidence for contractors and operators working under NEC and local codes, especially in regulated sectors such as manufacturing and processing plants.
Pow-R-Xpress stocking support reduces lead times by providing readily available components and optimized logistics for the PRL2X interior panelboard. Customers gain faster maintenance, minimized downtime during expansions, and lower total cost of ownership due to improved spare-part availability, predictable service cycles, and streamlined procurement processes in industrial environments.
