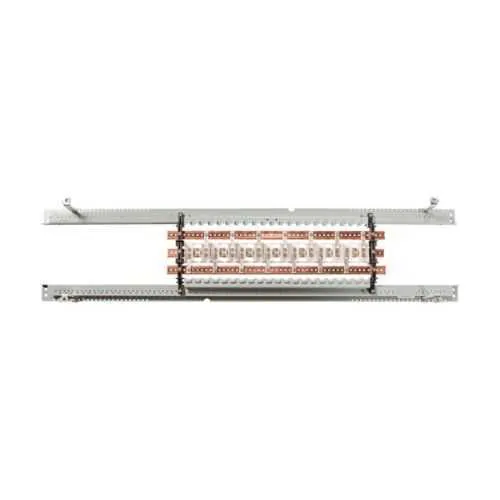

Eaton PRL2X3600X42C Panelboard - UL 67 Certified 480/277V
Part Number: PRL2X3600X42C
Quick Summary
Eaton PRL2X3600X42C panelboard delivers reliable 600A distribution for 480/277V three-phase four-wire systems. Engineers face space constraints, heat, and strict code labeling in interior panelboards, which can slow installation and increase risk. UL 67 listing and NEMA compliance underpin safety, reliability, and service life, while copper bus minimizes voltage drop in dense layouts. Designed for Pow-R-Xpress stocking and scalable 42-circuit capacity, it supports fast commissioning, easier maintenance, and predictable long-term total cost of ownership. For facilities aiming to optimize uptime, this panelboard combines robust construction with installer-friendly access and clear documentation.
Product Information
Extended Description
PRL2X3600X42C Eaton: Eaton PRL2X INTERIOR FOR TFL 480/277 3P 4W 600A 42 CKT CU BUS
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3600X42C
UPC
786689363383
Product Length/Depth
61 in
Product Height
6 in
Product Width
15 in
Product Weight
123 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Number of circuits
42
Type
PRL2X INTERIOR
Amperage Rating
600A
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3600X42C
Feature: 600A amperage rating and 42 circuits. Business Impact: Supports high-demand loads in a single enclosure, reducing feeder splices, simplifying wiring, and enabling closer panel zoning. Application: Large manufacturing lines and commercial equipment rooms that require consolidated power distribution with straightforward future expansion. Feature: Copper bus material. Business Impact: Improves conductivity, lowers contact resistance, and enhances arc-quench performance under heavy load. Application: High-current distribution in automation racks and switchgear feed points where performance margins matter. Feature: Exterior dimensions and interior design (61 in length, 15 in width, 6 in height). Business Impact: Tight footprint without sacrificing capacity, aiding installation in restricted enclosures and conditioned spaces. Application: Office and plant corners with limited space for panel installations. Feature: Compliance and certification (UL 67, NEMA compliant). Business Impact: Accelerates audits, reduces commissioning time, and minimizes regulatory risk. Application: Facilities requiring stringent safety and reliability standards. Feature: 42-circuit interior for 3P 4W 480/277V. Business Impact: Streamlines field wiring, labeling, and protection coordination in one panel, lowering commissioning costs. Application: Control panels, machine centers, and distributed power for automation lines. Feature: Pow-R-Xpress interior compatibility. Business Impact: Faster stocking, easier maintenance, and faster downtime recovery through standardized parts. Application: Distributor and service-center environments that prioritize rapid repairs.
Get a Quick Quote for a Eaton PRL2X3600X42C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3600X42C?
Enquire Now
FAQs
Plan for a dedicated interior mounting location compatible with a 61 inch length, 15 inch width, and 6 inch height footprint. Ensure adequate clearance for copper bus access, labeling, and service wiring. Verify 480/277V 3P4W supply availability and confirm enclosure compatibility with NEMA guidelines to maintain UL 67 compliance.
The panelboard is rated for 600A with 42 circuits, designed for 480V/277V three-phase four-wire systems. It uses copper bus material and carries UL 67 certification with NEMA compliance, ensuring safe operation, robust durability, and reliable protection coordination in industrial environments.
Yes. Its interior design, 42-circuit capacity, and copper bus support dense power distribution essential for automation racks, machine centers, and control panels. The UL 67/NEMA compliance plus space-efficient footprint help minimize downtime and simplify wiring, labeling, and future expansions.
This panelboard carries UL 67 and is NEMA compliant. UL 67 confirms suitability for lighting and power panelboard applications, while NEMA compliance ensures compatibility with standard enclosures and environmental conditions. Together, they reduce regulatory risk and facilitate smoother inspections and commissioning.
Pow-R-Xpress compatibility supports rapid stocking and faster field service, cutting downtime during maintenance or expansion. The 42-circuit interior with copper bus lowers resistance and improves reliability, delivering predictable long-term O&M costs and improved uptime for critical facilities.
