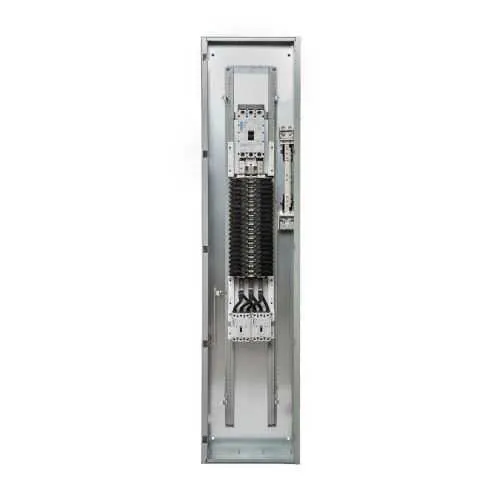

Eaton PRL2X3600X42CD Panelboard - UL 67 Certified
Part Number: PRL2X3600X42CD
Quick Summary
The Eaton Pow-R-Xpress PRL2X3600X42CD panelboard provides high-density power distribution for 480/277 V systems. Design engineers often struggle with limited space, wiring congestion, and lengthy approvals during panel installs. UL 67 certified and NEMA compliant, this interior panelboard features copper density bus and dual SFB provisioning to support future expansion. With a 600 A rating and 42 circuits, it enables faster deployment, reduced enclosure counts, and lower labor costs for facilities managers and electrical contractors. This solution delivers reliable, scalable distribution for industrial facilities while aligning with common procurement and maintenance workflows.
Product Information
Extended Description
PRL2X3600X42CD Eaton: PRL2X 480/277 3P4W 600A 42CKT CU DENSITY RATED BUS WITH DUAL SFB PROVISION
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3600X42CD
UPC
786689885588
Product Length/Depth
79 in
Product Height
3.75 in
Product Width
8.5 in
Product Weight
185.54 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Type
PRL2X INTERIOR
Amperage Rating
600A
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Feature: High-density interior design with 42 circuits and density-rated copper bus. Business Impact: Maximizes space utilization, reduces the number of enclosures, and lowers installation time in new builds and retrofits. Application: Ideal for crowded switchgear rooms in manufacturing facilities and data centers that require compact, compliant power distribution. Feature: Dual SFB provision. Business Impact: Facilitates future expansions or reconfigurations without costly panel swaps or downtime. Application: Electrical upgrades in evolving plant lines or commercial environments with shifting load profiles. Feature: Compliance and certification. Business Impact: Ensures regulatory alignment and faster approvals with UL 67 and NEMA compliance, reducing project risk. Application: Critical power applications in industrial automation and building infrastructure. Feature: 480/277 V, 3P4W amperage readiness. Business Impact: Supports large, three-phase lighting and motor loads with reliable performance and fault tolerance. Application: Main distribution or subpanel installations in warehouses, process lines, and assembly areas. Feature: Copper bus material. Business Impact: Improves conductivity, longevity, and thermal performance under dynamic load changes. Application: Heavy-duty distribution where long-term reliability and lower contact resistance matter. Feature: Physical footprint and configuration. Business Impact: 79 in length, 8.5 in width, 3.75 in height with dense bus density enables easier routing and service access. Application: Interior panels in retrofit projects where space is at a premium and wiring clarity matters.
Get a Quick Quote for a Eaton PRL2X3600X42CD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3600X42CD?
Enquire Now
FAQs
PRL2X3600X42CD is designed as an interior panelboard with a 600A rating and copper density bus, compatible with standard low-voltage distribution enclosures. Its 42-circuit configuration and 480/277V 3P4W operation support straightforward retrofits in space-constrained rooms, while dual SFB provisioning allows future expansion without enclosure replacement.
Key specs include a 600A amperage rating, 42 circuits, 480/277V, 3P4W operation, copper bus material, and dual SFB provisioning. The unit is UL 67 certified and NEMA compliant, with dimensions listed as 79 in length, 8.5 in width, and 3.75 in height, suitable for interior distribution needs.
Yes. It is designed for industrial and commercial power distribution, delivering high-density circuit capacity in a compact footprint. The panelboard supports heavy loads with a copper bus for reliability, while its dual SFB provision enables scalable upgrades as plant load grows or processes change.
The PRL2X3600X42CD carries UL 67 certification and is NEMA compliant, ensuring safety and performance standards for low-voltage panelboard applications in commercial and light-industrial environments.
ROI is driven by reduced enclosure counts, shorter installation times, and lower labor costs due to high-density circuit capacity and dual SFB provisioning. The 600A rating and copper bus provide reliable performance, potentially lowering maintenance needs and future upgrade expenses in evolving automation lines.
