Eaton PRL2X3600X42CL Pow-R-Xpress Panelboard Series - UL 67
Part Number: PRL2X3600X42CL
Quick Summary
The Eaton Pow-R-Xpress PRL2X3600X42CL panelboard is a compact interior distribution solution for 480/277V systems. Engineers often grapple with tight spaces and lengthy retrofit timelines, making field assembly burdensome. UL 67 certification and NEMA compliance ensure regulatory readiness, while copper bus construction supports dependable current transfer. As a Pow-R-Xpress interior panelboard, it reduces wiring complexity and speeds installation, delivering measurable project savings. This combination makes it well suited for industrial automation, data centers, and commercial facilities seeking reliable, scalable power distribution. Overall, it supports faster commissioning, reduced field labor, and improved regulatory alignment across facilities.
Product Information
Extended Description

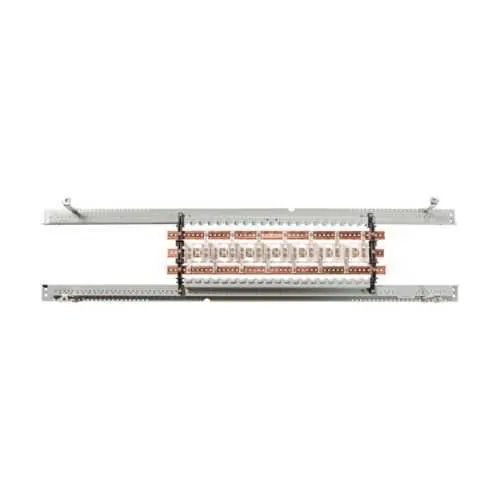

PRL2X3600X42CL Eaton: Eaton PRL2X INTERIOR FOR SFB/TFL 480/277 3P 4W 600A 42 CKT CU BUS
Product Name
Eaton Pow-R-Xpress PRL2X panelboard
Catalog Number
PRL2X3600X42CL
UPC
786689363390
Product Length/Depth
79 in
Product Height
6 in
Product Width
15 in
Product Weight
162 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Number of circuits
42
Type
PRL2X INTERIOR
Amperage Rating
600A
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL2X3600X42CL
The PRL2X3600X42CL panelboard delivers high-capacity interior distribution with a 600A amperage rating and 42 circuits, enabling streamlined power control for complex automation lines. The copper bus provides low resistance and reduced voltage drop, improving overall electrical efficiency and reliability in demanding environments. This translates to lower energy losses and longer service life for critical equipment. Its 3P4W configuration supports diverse industrial loads, from motors to drives, while the interior design simplifies future expansion and maintenance. Installation benefits include factory-built assembly that shortens commissioning times and minimizes field termination errors, helping to reduce labor costs and downtime. The unit's UL 67 certification and NEMA compliance address regulatory requirements, elevating safety and performance across facilities. Compatibility with Pow-R-Xpress accessories enhances modularity and scalability, ensuring a future-ready distribution solution with a proven track record in manufacturing and process industries.
Get a Quick Quote for a Eaton PRL2X3600X42CL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL2X3600X42CL?
Enquire Now
FAQs
Yes. The PRL2X3600X42CL is engineered for 480/277V, three-phase, four-wire (3P4W) interior panelboard installations. Its design supports interior applications requiring robust distribution with a 600A rating and 42 circuits, making it suitable for machine rooms, control panels, and distributed industrial loads.
The panelboard delivers a 600A amperage rating with 42 circuits fed through copper bus. This combination reduces resistance, lowers voltage drop, and improves fault performance. The 3P4W configuration supports multiple motor and control circuits, contributing to reliable startup, smoother operation of automated equipment, and improved overall efficiency in energy-intensive facilities.
Best suited for interior power distribution in manufacturing floors, automated lines, data centers, and commercial service areas requiring compact footprint and scalable capacity. Its interior design and modular 42-circuit layout support retrofit projects and new builds, enabling phased expansion without extensive rework.
The PRL2X3600X42CL is UL 67 listed and NEMA Compliant, aligning with electrical safety and performance standards for low-voltage panelboards. These certifications help ensure regulatory readiness, safer operation, and compatibility with industry guidelines for control panels and power distribution in industrial environments.
Adopting this panelboard can reduce field wiring, shorten commissioning times, and lower downtime due to its factory-built assembly and reliable copper bussing. The combination of UL/NEMA compliance and scalable 42‑circuit interior design supports faster upgrades, improved uptime, and lower total cost of ownership over the device lifecycle.
