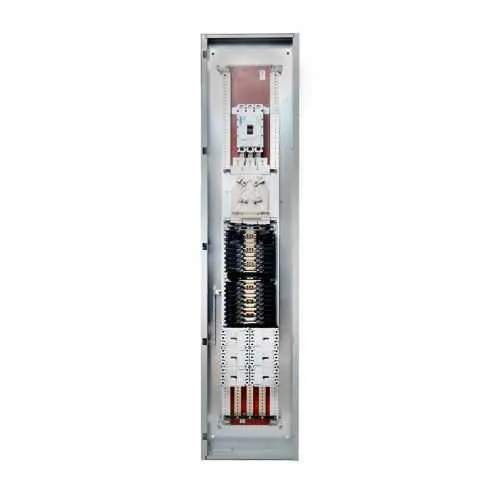

Eaton PRL3X3472B00C1S Pow-R-Xpress Panelboard - UL 67
Part Number: PRL3X3472B00C1S
Quick Summary
Pow-R-Xpress panelboards deliver reliable, modular power distribution for commercial and industrial electrical rooms. Upgrading or expanding a panel can be time-consuming and space-constrained, but this solution streamlines installations and minimizes downtime. UL 67 certification, NEMA compliance, and an indoor-rated NEMA 1 enclosure context signal robust safety and code conformity for critical facilities. This model supports fast wiring and compatible add-ons, reducing spare-part inventories and labor costs, while meeting three-phase 208/120 V requirements. For project teams, leveraging Eaton's Pow-R-Xpress stocking program can improve lead times and overall project predictability.
Product Information
Extended Description
PRL3X3472B00C1S Eaton: EATON POW-R-XPRESS PRL3X INTERIOR ASSY 208/120V 3P 4W 400A CUAG MCB PD3 SE
Product Name
Eaton Pow-R-Xpress PRL3X panelboard
Catalog Number
PRL3X3472B00C1S
UPC
786689867843
Product Length/Depth
61 in
Product Height
3.75 in
Product Width
12 in
Product Weight
100 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Feed type
Top
Material
COPPER
Phase
Three-phase
Type
PRL3X INTERIOR
Amperage Rating
400A
Bus Rating
400 A
Circuit breaker rating
400
Current - max
400
NEMA rating
1
Voltage - max
120/208
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Feature: Three-phase interior panelboard designed for 208/120 V systems. Business Impact: Enables efficient, scalable load distribution for data centers and manufacturing floors. Application: Ideal for commercial spaces and light industrial facilities where compact, reliable three-phase power is required. Feature: 400 A amperage rating with a 400 A bus and circuit-breaker rating. Business Impact: Supports larger electrical loads without panel proliferation, reducing footprint and maintenance costs. Application: Suitable for main distribution in distribution rooms and control centers. Feature: Top feed design. Business Impact: Facilitates straightforward integration with existing switchgear and minimizes conduit runs. Application: Retrofit projects and new installations with limited side access. Feature: Copper bus material. Business Impact: Low resistance, improved thermal performance, and longevity under continuous duty. Application: Critical power paths in industrial process lines and data centers. Feature: Certifications and compliance (UL 67, NEMA Compliant). Business Impact: Ensures code compliance, safer operation, and easier permit approval. Application: Indoor commercial/industrial environments with stringent safety requirements. Feature: Dimensions and weight (61 in L × 12 in W × 3.75 in H, 100 lb). Business Impact: Predictable space planning and mounting clearances, aiding design accuracy. Application: Wall- or rack-mounted installations in constrained rooms. Additional Insight: Compatible with Eaton’s Pow-R-Xpress stocking program for faster replacements and reduced downtime, supporting maintenance strategies and total cost of ownership improvements.
Get a Quick Quote for a Eaton PRL3X3472B00C1S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL3X3472B00C1S?
Enquire Now
FAQs
This panelboard is designed for 208/120-volt three-phase systems and uses a top-feed interior layout, enabling straightforward integration with existing switchgear. Its PRL3X interior design supports 400 A service, with copper bus for low-resistance distribution, and UL 67 safety certification. Verify clearance, busbar alignment, and MCB compatibility during panel upgrades to avoid rework.
Key specifications include a 400 A amperage rating, 400 A bus rating, and a 400 A circuit breaker rating, with a maximum current of 400 A and voltage up to 120/208 V. The unit is three-phase, has a NEMA 1 enclosure, and is UL 67 certified. This combination ensures reliable performance and code compliance for industrial control rooms.
Yes. The PRL3X3472B00C1S is UL 67 listed and NEMA compliant with a NEMA 1 indoor enclosure rating. The design uses copper bus and three-phase interior construction to meet typical commercial and light-industrial code requirements. Always confirm site-specific short-circuit rating and local codes before installation.
Pow-R-Xpress offers faster stocking and availability of standard components, reducing downtime during replacements and upgrades. By aligning with Eaton’s stocking program, projects benefit from shorter lead times, lower emergency orders, and reduced total inventory carrying costs, delivering measurable maintenance efficiency and improved project timelines.
With a top-feed design and an interior PRL3X configuration, installation favors straightforward wiring and clean conduit routing. The unit measures 61 in L × 12 in W × 3.75 in H and weighs about 100 lb, so plan for secure wall mounting and adequate service clearance. Verify mounting hardware, door swing, and feeder alignment during planning.
