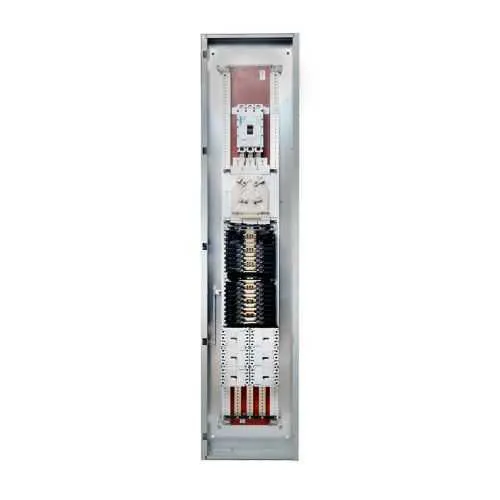

Eaton PRL3X3472B00C2 Panelboard - UL 67 Certification
Part Number: PRL3X3472B00C2
Quick Summary
Eaton Pow-R-Xpress PRL3X panelboard delivers compact, high-capacity power distribution for 480/277V three-phase systems. For engineers facing tight spaces and retrofit timelines, this interior assembly streamlines installation with a robust 400A rating and copper bus. UL 67 certified with a NEMA 1 enclosure and overall commercial-grade build support safe indoor operation in demanding facilities. The solution combines reliability with ease of maintenance, reducing downtime and replacement costs. As a Pow-R-Xpress interior panelboard option, it integrates smoothly with standard MCB configurations and Eaton accessories, enabling faster commissioning and scalable expansion. This translates to lower total cost of ownership while meeting industry standards.
Product Information
Extended Description
PRL3X3472B00C2 Eaton: EATON POW-R-XPRESS PRL3X INTERIOR ASSY 480/277V 3P 4W 400A CUAG MCB PD3
Product Name
Eaton Pow-R-Xpress PRL3X panelboard
Catalog Number
PRL3X3472B00C2
UPC
786689867850
Product Length/Depth
61 in
Product Height
3.75 in
Product Width
12 in
Product Weight
100 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Feed type
Top
Material
COPPER
Phase
Three-phase
Type
PRL3X INTERIOR
Amperage Rating
400A
Bus Rating
400 A
Circuit breaker rating
400
Current - max
400
NEMA rating
1
Voltage - max
480/277
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Feature: High amperage capability and 480/277V three-phase operation → Business Impact: Supports heavy-load distribution and future growth with a single residential or light-industrial feeder, minimizing the need for mid-project upgrades. Application: Ideal for commercial spaces and light manufacturing where reliable 400A capacity is required. The long-term energy management benefits come from consistent current delivery and reduced thermal stress on conductors. Feature: Copper bus material → Business Impact: Improves conductivity, durability, and longevity, reducing voltage drop and maintenance costs over time. Application: Best suited for demanding environments with frequent switching and higher fault-impedance tolerance, ensuring consistent performance across cycles. Feature: Top feed design → Business Impact: Eases installation and field wiring, shortening project timelines and reducing labor costs. Application: Retrofit projects and new builds where accessible wiring from the top is preferred for streamlined conduit routing. Feature: Compliance and protection (UL 67, NEMA 1) → Business Impact: Ensures code compliance and enclosure protection for indoor use, lowering risk and inspection durations. Application: Corporate facilities, data centers, and production floors that require proven safety standards. Feature: Compact footprint (61 in L, 12 in W, 3.75 in H) and weight (100 lb) → Business Impact: Maximizes space efficiency in crowded service areas while maintaining robust electrical capacity. Application: Retrofit and new-build environments with restricted mounting envelope. Feature: Compatibility with Pow-R-Xpress lineup and standard MCB configurations → Business Impact: Facilitates quick integration and future upgrades with familiar components, reducing procurement complexity. Application: Teams upgrading legacy panels or expanding capacity within the Pow-R-Xpress ecosystem.
Get a Quick Quote for a Eaton PRL3X3472B00C2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL3X3472B00C2?
Enquire Now
FAQs
The PRL3X3472B00C2 panelboard is designed for top-feed installation and supports 480/277V three-phase, four-wire systems. For installation, ensure proper mounting, connect feeders to the interior assembly, and fit Eaton MCBs compatible with the Pow-R-Xpress interior. Verify UL 67 and NEMA 1 adherence during commissioning to confirm safe, code-compliant operation.
This panelboard carries a 400A amperage rating with a 400A bus rating, enabling substantial load distribution while maintaining manageable heat and voltage drop. For facilities with peak demand charges, the 400A capacity supports scalable distributions and efficient feeder design without oversized starters, improving overall energy management and reducing wiring complexity.
Yes. With a 61 inch length, 12 inch width, 3.75 inch height footprint and a 100 lb weight, the interior panelboard fits constrained spaces common in dense industrial and commercial settings. Its three-phase 480/277V capability and copper bus support reliable, heavy-duty distribution, making it suitable for data centers, manufacturing lines, and other high-demand environments.
The unit is UL 67 certified and features a NEMA 1 enclosure, with the product listed as NEMA Compliant. These certifications confirm indoor-use suitability, protection against limited dust and vertical surfaces, and alignment with established safety standards, reducing inspection delays and ensuring regulatory compliance for commercial installations.
The Pow-R-Xpress interior panelboard uses copper bus for durable, low-resistance connections, supporting long-term efficiency and reduced thermal stress. Its modular interior design simplifies maintenance and future expansion, which lowers lifecycle costs and improves uptime, delivering a favorable return on investment for facilities planning capacity upgrades.
