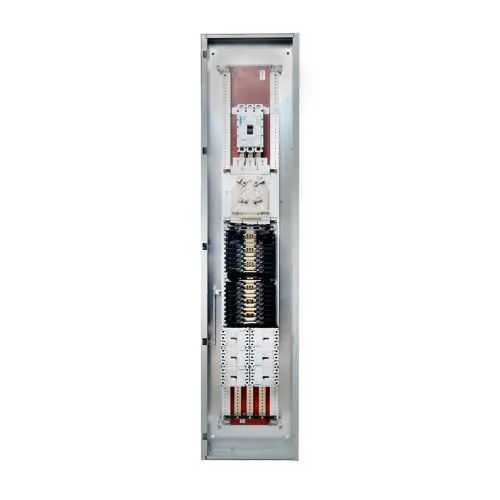

Eaton PRL3X3660L00C1 Panelboard - 120/208V, UL 67
Part Number: PRL3X3660L00C1
Quick Summary
Eaton Pow-R-Xpress PRL3X panelboard provides compact, high-capacity power distribution for industrial control panels. Engineers often wrestle with space constraints, wiring complexity, and meeting electrical codes. UL 67 certification confirms safe interior panel configurations, and NEMA compliance supports rugged, code-compliant operation in harsh environments. For fast commissioning and a compact footprint, the Pow-R-Xpress design reduces installation time and total cost while ensuring compliant, safe power distribution for medium- to large-scale electrical infrastructure in manufacturing, data centers, and facilities. This solution also aligns with maintenance efficiency and future scalability, helping procurement and engineering teams simplify sourcing while preserving performance and reliability.
Product Information
Extended Description
PRL3X3660L00C1 Eaton: EATON POW-R-XPRESS PRL3X INTERIOR ASSY 208/120V 3P 4W 600A CUAG MLO
Product Name
Eaton Pow-R-Xpress PRL3X panelboard
Catalog Number
PRL3X3660L00C1
UPC
786689867898
Product Length/Depth
49 in
Product Height
3.75 in
Product Width
12 in
Product Weight
110 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Feed type
Top
Material
COPPER
Phase
Three-phase
Type
PRL3X INTERIOR
Amperage Rating
600A
Bus Rating
600 A
NEMA rating
1
Voltage - max
120/208
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Feature → Business Impact → Application: 600A Amperage rating and 600 A bus rating enable high-load distribution with minimal voltage drop, improving overall system efficiency and reducing the need for additional upstream protection. This supports larger equipment loads and scalable layouts in industrial facilities. Feature → Application: Copper bus material delivers superior conductivity and durability, reducing heat buildup and enabling longer service life in continuous operation environments. Application: Three-phase, 208/120V operation in a compact interior panelboard supports efficient power distribution for control panels in manufacturing lines and data centers. Feature → Business Impact → Application: Top feed and MLO interior design streamline wiring, simplify retrofits, and speed up installation and future upgrades, reducing commissioning time and on-site labor costs. Feature → Business Impact → Application: NEMA 1 compliance and UL 67 certification provide regulatory alignment and safety assurances, minimizing risk during audits and in maintenance operations. Feature → Application: 49 in length, 12 in width, 3.75 in height, and 110 lb weight offer a compact footprint with robust sturdiness, enabling flexible mounting in constrained spaces while supporting modular expansion within the PRL3X interior family.
Get a Quick Quote for a Eaton PRL3X3660L00C1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL3X3660L00C1?
Enquire Now
FAQs
The PRL3X3660L00C1 is a three-phase interior panelboard rated to 600A, designed for 208/120V systems with top feed. It uses copper bus and an MLO interior configuration, and it measures 49 in L x 12 in W x 3.75 in H, weighing 110 lb. Plan for space in a suitable electrical room and ensure compatibility with Pow-R-Xpress interior components.
Yes. With a 600A capacity, 208/120V three-phase operation, and UL 67/NEMA 1 compliance, this panelboard supports reliable power distribution in data centers. Its compact footprint and top-feed design simplify wiring routes, while copper bus ensures low resistance and stable performance under continuous load.
PRL3X3660L00C1 carries UL 67 certification and is NEMA compliant, signaling adherence to recognized safety and performance standards for interior panelboards. This reduces risk during audits, improves insurance eligibility, and assures engineers that the product meets industry benchmarks for reliability and protection in commercial and industrial environments.
Top feed simplifies wiring runs and cut-out management, speeding up initial installation. The MLO interior arrangement offers flexible distribution layouts and easy upgrade paths to include additional breakers or main-lug configurations later, minimizing downtime and capital spend during system expansions or reconfigurations.
The 600A copper-bus panelboard delivers low resistance and durable performance, reducing voltage drop and energy loss. The robust construction and modular PRL3X interior family enable faster commissioning, easier servicing, and lower maintenance downtime, contributing to a favorable total cost of ownership in medium-to-high-load industrial environments.
