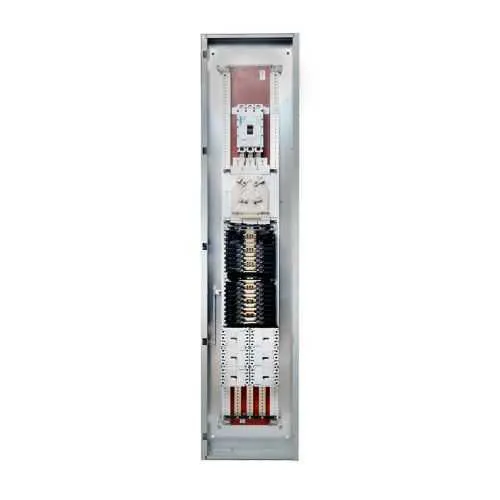

Eaton PRL3X3672B00C1 Panelboard - UL 67 Certified
Part Number: PRL3X3672B00C1
Quick Summary
Eaton Pow-R-Xpress PRL3X panelboard provides compact, reliable power distribution for industrial and commercial electrical rooms. It addresses space constraints and wiring challenges by delivering a top-fed interior design with a copper bus for straightforward, scalable layouts. UL 67 certification and a NEMA 1 enclosure protect personnel and equipment in indoor environments, while the copper bus minimizes losses in high-load applications. With 600A capacity and three-phase operation, this panelboard supports growing loads in data centers, manufacturing lines, and distribution rooms. The solution integrates smoothly with the Pow-R-Xpress ecosystem, enabling faster commissioning and minimizing on-site rework, which translates to lower total installed cost and improved project timelines.
Product Information
Extended Description
PRL3X3672B00C1 Eaton: EATON POW-R-XPRESS PRL3X INTERIOR ASSY 208/120V 3P 4W 600A CUAG MCB PD3
Product Name
Eaton Pow-R-Xpress PRL3X panelboard
Catalog Number
PRL3X3672B00C1
UPC
786689867874
Product Length/Depth
61 in
Product Height
3.75 in
Product Width
12 in
Product Weight
110 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Feed type
Top
Material
COPPER
Number Of Poles
12-pole
Phase
Three-phase
Type
PRL3X INTERIOR
Amperage Rating
600A
Bus Rating
600 A
Circuit breaker rating
600
Current - max
600
NEMA rating
1
Voltage - max
120/208
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Feature: High current interior design with 12 poles in a three-phase configuration. Business Impact: Supports heavy load distribution with minimal voltage drop, enabling reliable operation of critical processes. Application: Manufacturing lines and data centers where stable power is essential. Feature: Top feed for wiring accessibility and safer terminations. Business Impact: Reduces installation time and wiring errors, improving field productivity. Application: New builds and retrofit projects in industrial facilities. Feature: Copper bus construction. Business Impact: Lower resistance and better conductivity, improving overall efficiency and reducing heat. Application: Any system with tight reliability and efficiency requirements. Feature: NEMA 1 enclosure with UL 67 certification. Business Impact: Compliance with indoor protection standards and safety certifications, easing regulatory approvals. Application: Indoor electrical rooms and service corridors. Feature: Large footprint with 61 in length, 12 in width, 3.75 in height and 110 lb weight. Business Impact: Predictable footprint simplifies rack integration and supports stable mechanical mounting. Application: Retrofit installations and new installations in constrained spaces. Feature: 208/120V, 3P4W capability. Business Impact: Seamless integration with common low-voltage distribution schemes, reducing adapter needs. Application: Hospitals, laboratories, light industry and commercial facilities. Feature: Part of the Pow-R-Xpress interior family. Business Impact: Access to stocking programs and quicker delivery, reducing project lead times. Application: Projects requiring fast procurement and standardized panelboard configurations.
Get a Quick Quote for a Eaton PRL3X3672B00C1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL3X3672B00C1?
Enquire Now
FAQs
The PRL3X3672B00C1 is designed as a PRL3X INTERIOR interior panelboard with top feed and 12 poles, 3-phase, 4-wire. It fits standard industrial electrical rooms and aligns with 61 in L x 12 in W x 3.75 in H footprints. Its copper bus and UL 67/NEMA 1 compliance simplify integration with existing low-voltage distributions and reduce retrofit risk.
With a 600A amperage rating and 120/208V operation, the PRL3X3672B00C1 supports sizable industrial loads while minimizing voltage drop and heat. The 12-pole, 3-phase configuration delivers balanced distribution across phases, improving fault tolerance and operational stability for machinery, motors, and essential services in manufacturing and data centers.
Yes. The PRL3X3672B00C1 is an interior PRL3X component designed to work within the Pow-R-Xpress ecosystem. It supports top-feed wiring, copper bus construction, and MCB arrangements like PD3, ensuring seamless integration with Pow-R-Xpress stocking programs and related panelboard accessories for accelerated project timelines.
The panelboard carries UL 67 certification for panelboard safety and a NEMA 1 rating indicating indoor protection against dust and handled moisture under normal conditions. These certifications help streamline compliance during procurement and installation while ensuring safe operation in typical electrical rooms.
The interior PRL3X panelboard delivers predictable maintenance needs due to robust copper bus construction and reliable UL/NEMA compliant design. Its 61 in L footprint fits standard enclosures, reducing retrofit complexity. Paired with Pow-R-Xpress stocking and fast commissioning, it lowers project lead times and total cost of ownership through faster startup and fewer on-site reworks.
