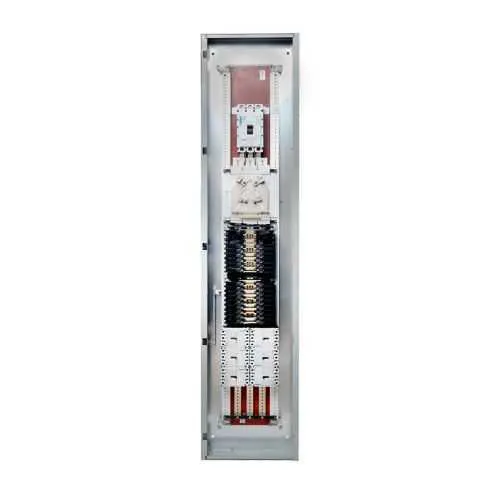

Eaton PRL3X3672B00C2S Panelboard - UL 67, 600A
Part Number: PRL3X3672B00C2S
Quick Summary
The Eaton Pow-R-Xpress PRL3X panelboard is a high-density interior distribution solution for 480/277V three-phase systems used in commercial and industrial electrical rooms. Engineers often battle tight spaces, heat buildup, and lengthy installation times; this panelboard mitigates those issues with a compact footprint and modular interior design that speeds deployment. It carries UL 67 certification and aligns with NEMA-compliant standards to support safety and regulatory compliance in critical facilities. In today’s projects, scalability and reliability matter—this solution delivers robust power distribution with a 600A amperage rating, while enabling easier maintenance and future expansion for growing electrical needs.
Product Information
Extended Description
PRL3X3672B00C2S Eaton: EATON POW-R-XPRESS PRL3X INTERIOR ASSY 480/277V 3P 4W 600A CUAG MCB PD3 SE
Product Name
Eaton Pow-R-Xpress PRL3X panelboard
Catalog Number
PRL3X3672B00C2S
UPC
786689867911
Product Length/Depth
61 in
Product Height
3.75 in
Product Width
12 in
Product Weight
110 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Feed type
Top
Material
COPPER
Number Of Poles
12-pole
Phase
Three-phase
Type
PRL3X INTERIOR
Amperage Rating
600A
Bus Rating
600 A
Circuit breaker rating
600
Current - max
600
NEMA rating
1
Voltage - max
480/277
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Feature → Business Impact → Application: The PRL3X3672B00C2S leverages a 12-pole interior arrangement rated at 600A, enabling high-density distribution that reduces panel count and saves space in equipment rooms—facilitating cleaner layouts and easier fault tracing in manufacturing lines or educational campuses. Feature → Business Impact → Application: Copper bus material and top-feed design lower electrical resistance, improve heat dissipation, and simplify wiring terminations, leading to lower energy loss and faster commissioning in 480/277V three-phase installations such as data centers and large office complexes. Feature → Business Impact → Application: UL 67 certification and NEMA compliance provide documented safety and performance, reducing regulatory risk and smoothing field acceptance for life-safety and industrial environments. Feature → Business Impact → Application: The compact dimensions (61 in length, 12 in width, 3.75 in height) and 110 lb weight support easier installation and serviceability in retrofit projects, minimizing downtime. Feature → Business Impact → Application: Copper construction and high-quality bus connections deliver dependable operation in demanding environments, enabling longer service intervals and lower maintenance costs for electrical distributors and end users. Feature → Business Impact → Application: Top-feed configuration simplifies feed wiring and improves accessibility for quick replacements or upgrades, particularly in retrofit scenarios where space is constrained. Feature → Business Impact → Application: Availability within the Pow-R-Xpress family and partner documentation accelerates procurement and stocking decisions, reducing lead times for critical panelboard replacements in OEMs and industrial plants.
Get a Quick Quote for a Eaton PRL3X3672B00C2S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL3X3672B00C2S?
Enquire Now
FAQs
The PRL3X3672B00C2S supports top-feed wiring and three-phase, four-wire configurations for 480/277V service. Its interior is designed around a copper bus with a 12-pole arrangement, enabling a compact, easy-to-terminate layout. This makes retrofits and new installations straightforward, reducing field labor and minimizing miswiring risks during panel wiring and terminations.
Key specs include a 600A amperage rating, 600A bus rating, and a voltage range of 480/277V. The panel is a 3P 4W interior design, with a 12-pole configuration and copper bus material. These specifications support high-load applications while maintaining safe operating margins and consistent feeder protection in commercial facilities.
Yes. The panelboard is designed for industrial and large commercial environments requiring reliable three-phase distribution at 480/277V. Its UL 67 certification and NEMA compliance help meet industry codes, while the interior assembly and robust copper bus promote longevity, fault tolerance, and ease of service in demanding production lines.
This Eaton panelboard carries UL 67 certification and is NEMA compliant, underscoring its safety and reliability for light to heavy commercial and industrial use. While CE and IP ratings are not listed in the provided data, UL 67 and NEMA compliance are strong indicators of regulatory alignment for interior low-voltage panelboards.
ROI stems from faster deployment, reduced field labor due to modular interior design, and lower maintenance costs thanks to high-quality copper bus and solid build. The 600A capacity supports future expansion without replacing the main panel, while UL/NEMA compliance reduces compliance risk and downtime in critical facilities.
