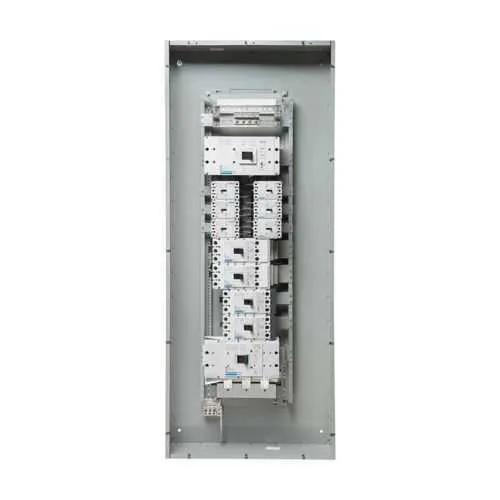

Eaton PRL4X3173LB0C2 Panelboard - UL 67, 1200A
Part Number: PRL4X3173LB0C2
Quick Summary
PRL4X3173LB0C2 Eaton Pow-R-Xpress panelboard is a high-capacity power distribution solution for 480/277V, three-phase systems. Facilities often face space constraints, downtime during upgrades, and compliance hurdles when expanding feeders; this interior panelboard is designed to minimize those challenges with a robust, bottom-feed design and a 1200A rating. UL 67 certification pairing with copper bus construction provides durable fault protection and reliable performance in harsh industrial environments. By simplifying installation and offering clear field upgrade paths, this solution supports faster commissioning, safer maintenance, and longer service life. In addition, the Pow-R-Xpress ecosystem assets and data sheets help engineers optimize stocking and interface with existing switchgear.
Product Information
Extended Description
PRL4X3173LB0C2 Eaton: EATON POW-R-XPRESS PRL4X INTERIOR ASSY; 480/277V 3P 4W 1200A CUAG BUS MLO BOTTOM
Product Name
Eaton Pow-R-Xpress PRL4X panelboard
Catalog Number
PRL4X3173LB0C2
UPC
786689908157
Product Length/Depth
675 in
Product Height
8 in
Product Width
22 in
Product Weight
350 lb
Certifications
UL 67
Bus material
Copper
Feed type
Bottom
Material
COPPER
Phase
Three-phase
Type
PRLX4
Amperage Rating
1200A
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Feature 1200A amperage rating enables handling of heavy feeders and peak loads, reducing panel congestion and bottlenecks. Business Impact Enhanced load management translates to higher uptime and fewer recalibrations during peak demand periods in manufacturing or data-center environments. Application Main distribution for large facilities requiring robust feeders and scalable capacity with room for future expansion. Feature 480/277V three-phase, four-wire configuration supports common industrial power architectures, improving compatibility with motor drives and lighting systems. Business Impact Delivers reliable, balanced power to critical loads with reduced voltage drop and improved overall system efficiency in mixed-use facilities. Application Suitable for commercial and light-industrial installations seeking predictable performance and ease of integration. Feature Copper bus material offers superior conductivity and durability, lowering heat rise and long-term contact resistance. Business Impact Results in lower energy losses and longer service life, reducing maintenance costs and replacement intervals. Application Ideal for environments demanding high reliability and quick maintenance in tight spaces. Feature Bottom feed (MLO) simplifies field wiring and reduces installation time and risk. Business Impact Faster commissioning, safer wiring, and easier retrofits into existing downstream gear. Application Compatible with common Eaton Pow-R-Xpress panelboard ecosystems and field upgrade paths. Feature UL 67 certification provides recognized safety compliance for interior panelboards, supporting building-code adherence and insurer confidence. Business Impact Compliance assurance and risk mitigation for commercial/industrial projects. Application Aligns with regulatory expectations and procurement standards. Feature Stocking program resources available to support rapid sourcing and project timelines. Business Impact Shorter lead times and reduced project delays when upgrading or expanding electrical distribution. Application Facilitates fast, reliable deployment in new builds and retrofit projects.
Get a Quick Quote for a Eaton PRL4X3173LB0C2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL4X3173LB0C2?
Enquire Now
FAQs
Yes. The PRL4X3173LB0C2 is designed for 480/277V, three-phase systems with a bottom-feed configuration (MLO). It is compatible with common Eaton Pow-R-Xpress panelboard ecosystems and supports straightforward field wiring. When planning retrofit projects, verify bus material (copper), amperage rating (1200A), and the MTBF expectations to ensure seamless integration with existing breakers and feeders.
Key specs include a 1200A amperage rating, 480/277V operation, three-phase four-wire configuration, copper bus, and UL 67 certification. This combination minimizes voltage drop, reduces heat rise, and improves long-term reliability. In practice, these attributes support higher load capacity with lower energy losses, enabling more efficient distribution to motors, lighting, and process equipment.
Yes. The 1200A rating, copper bus, and UL 67 certification make it appropriate for critical-load environments where reliability and fault protection are essential. The bottom-feed MLO design simplifies wiring and maintenance, helping minimize downtime during routine changes or expansions common in data centers and manufacturing floors.
This panelboard carries UL 67 certification, which confirms suitability for interior electrical distribution. Compliance with UL standards supports safety, reduces audit risks, and aligns with typical building codes for commercial and light-industrial installations. Always verify local code adoption and ensure compatible accessories and breakers are used with the PRLX4 family.
The Pow-R-Xpress stocking program streamlines procurement with pre-approved configurations and readily available spares, reducing lead times and project delays. ROI benefits come from faster commissioning, lower maintenance overhead thanks to durable copper bus, and reduced downtime during future expansions since the panelboard is designed for straightforward field upgrades and compatibility with common Eaton components.
