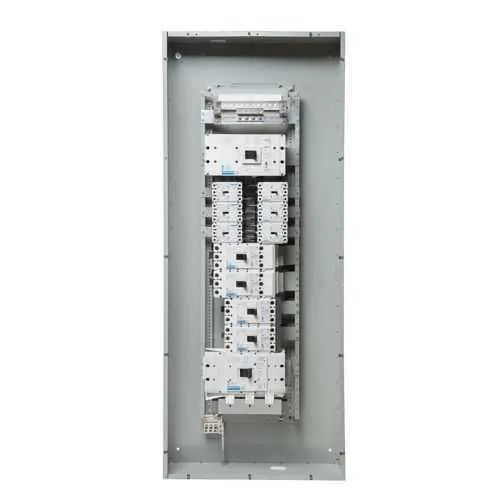

Eaton PRL4X3190B00C1 Panelboard - UL 67 Certified
Part Number: PRL4X3190B00C1
Quick Summary
The Eaton Pow-R-Xpress PRL4X panelboard is designed to manage high-capacity power distribution for industrial facilities. Engineers often grapple with finding panelboards that fit large loads, offer straightforward maintenance, and ship with fast lead times. UL 67 listed construction supports reliable electrical distribution, while its three-phase, 208/120V configuration is a common fit for commercial and manufacturing environments. With a copper bus and top-feed design, this interior assembly delivers robust current handling and ease of integration with existing PDUs. The solution also aligns with modern procurement needs by combining performance with scalable, standardized components for long-term value.
Product Information
Extended Description
PRL4X3190B00C1 Eaton: EATON POW-R-XPRESS PRL4X INTERIOR ASSY; 208/120V 3P 4W 1200A CUAG BUS MCB PD5 PXR20 ALSI
Product Name
Eaton Pow-R-Xpress PRL4X panelboard
Catalog Number
PRL4X3190B00C1
UPC
786689815011
Product Length/Depth
68.75 in
Product Height
8 in
Product Width
22 in
Product Weight
350 lb
Certifications
UL 67
Bus material
Copper
Feed type
Top
Material
COPPER
Phase
Three-phase
Type
PRL4X INTERIOR
Amperage Rating
1200A
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Feature: High amperage capability up to 1200A. Business Impact: Enables handling of large, critical loads without oversizing equipment. Application: Suitable for large manufacturing lines and data-center corridors that require reliable power distribution with room for future load growth. Feature: Copper bus material. Business Impact: Improves conduction efficiency and thermal performance, reducing voltage drop and maintenance needs. Application: Ideal for lengthy feeders and high-current assemblies in heavy industry environments. Feature: Top-feed configuration. Business Impact: Simplifies wiring and reduces installation time, cutting labor costs. Application: Retrofit and new-install projects where overhead wiring pathways are preferred. Feature: 208/120V three-phase capability. Business Impact: Aligns with common commercial/industrial power standards, lowering compatibility issues. Application: Data centers, machine rooms, and distribution panels in manufacturing facilities. Feature: UL 67 certification. Business Impact: Provides verified safety and performance compliance, easing spec and procurement reviews. Application: Facilities requiring recognized safety listings for electrical distribution equipment. Feature: Interior assembly design with PD5 PXR20 ALSI compatibility. Business Impact: Streamlines panel automation integration and future upgrades. Application: Environments using Eaton’s accessory ecosystem for enhanced protection and modularity.
Get a Quick Quote for a Eaton PRL4X3190B00C1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL4X3190B00C1?
Enquire Now
FAQs
For new builds, plan the top-feed configuration to minimize conduit runs and align with existing electrical rooms layout. In retrofits, verify panel location, ensure enough clearances for a 68.75 in length and 22 in width, and assess existing bus alignment to copper interiors. The PRL4X design supports straightforward integration with PD5 and ALSI modules, reducing upgrade complexity.
Key specs include 208/120V operation, three-phase, 4-wire, and a 1200A amperage rating with copper bus. UL 67 certification provides recognized safety compliance for panelboard assemblies. These attributes support reliable distribution for heavy loads while meeting applicable electrical safety regulations in industrial facilities.
Yes. The three-phase, 208/120V configuration and 1200A rating make it appropriate for data centers and large manufacturing lines. Its interior PRL4X interior design, copper bus, and compatibility with standard Eaton accessories facilitate scalable deployment, modular upgrades, and consistent maintenance across mission-critical electrical rooms.
The PRL4X3190B00C1 is UL 67 listed, indicating compliance with recognized safety standards for panelboard assemblies. This certification is a key qualifier for electrical distribution equipment in many industrial and commercial applications, supporting safe installation and ongoing reliability.
The top-feed design and interior assembly streamline wiring, reducing labor time during installation. High-current capability with a durable copper bus lowers heat losses and maintenance needs over time. The standardized Pow-R-Xpress platform also facilitates faster spares replenishment and easier future expansions, contributing to lower total cost of ownership.
