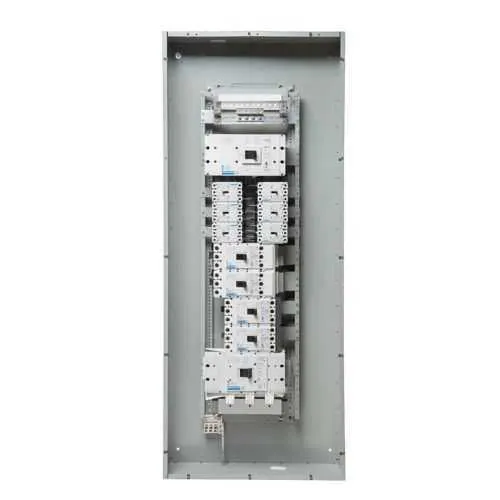

Eaton PRL4X3190B00C2S Panelboard - UL 67 Certified
Part Number: PRL4X3190B00C2S
Quick Summary
PRL4X3190B00C2S panelboard provides high-capacity power distribution for industrial facilities. When time-to-install and space constraints bite, this interior unit streamlines setup and reduces downtime. It is UL 67 certified, with copper bus and a three-phase design that ensure reliable performance in demanding environments. The interior assembly supports modular add-ons and straightforward maintenance, enabling technicians to swap breakers with minimal system disturbance. This panel also handles heavy loads up to 1200A at 480/277V with top-feed for streamlined wiring and heat management. In practice, teams gain faster commissioning and predictable procurement through Eaton’s Pow-R-Xpress stocking program.
Product Information
Extended Description
PRL4X3190B00C2S Eaton: EATON POW-R-XPRESS PRL4X INTERIOR ASSY; 480/277V 3P 4W 1200A CUAG BUS MCB PD5 PXR20 ALSIG SE
Product Name
Eaton Pow-R-Xpress PRL4X panelboard
Catalog Number
PRL4X3190B00C2S
UPC
786689814434
Product Length/Depth
68.75 in
Product Height
8 in
Product Width
22 in
Product Weight
350 lb
Certifications
UL 67
Bus material
Copper
Feed type
Top
Material
COPPER
Phase
Three-phase
Type
PRL4X INTERIOR
Amperage Rating
1200A
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
High amperage capacity → Enables centralized power distribution for large facilities, reducing the need for parallel cabinets and improving reliability; applications include manufacturing lines and data centers. Three-phase 480/277V compatibility → Supports common industrial and commercial power systems, simplifying integration with existing equipment and metering. Copper bus material → Maximizes conductivity and thermal performance, lowering heat rise and extending component life in demanding environments. Top-feed design → Eases installation, enhances wiring accessibility, and improves front-clearance for maintenance. UL 67 certified → Signals compliance with recognized safety standards, reducing regulatory risk and accelerating commissioning. Interior assembly with modular options → Facilitates future expansion and breaker upgrades without full panel replacement, lowering total cost of ownership. Footprint awareness (68.75 in L x 22 in W x 8 in H) and weight (350 lb) → Helps with precise space planning, mounting, and transport logistics on site. These features collectively support efficiency gains, safer operation, and clearer procurement for electrical contractors and reliability-focused facilities teams.
Get a Quick Quote for a Eaton PRL4X3190B00C2S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL4X3190B00C2S?
Enquire Now
FAQs
PRL4X3190B00C2S is designed as an interior three-phase panelboard with top-feed, copper bus, and a 1200A rating. It integrates with standard Eaton Pow-R-Xpress line components and can be coordinated with PD5 PXR20 breakers for seamless retrofits. Confirm existing bus, mounting footprint, and service clearance before swap-out to minimize downtime.
This panelboard supports 1200A amperage, 480/277V, three-phase, four-wire (3P4W). It uses copper bus material and is UL 67 listed. Its interior assembly design allows modular breaker installation, enabling scalable protection and straightforward maintenance in demanding industrial environments.
Yes. The 1200A rating, copper bus for optimal conductivity, three-phase configuration, and UL 67 certification all contribute to robust performance and safety in continuous-operation facilities. The interior assembly supports modular upgrades, enabling predictable reliability improvements and easier fault isolation during maintenance windows.
Eaton provides a Pow-R-Xpress stocking program with dedicated guides and references to accelerate project sourcing. The supplied brochures cover stocking strategies, panelboard references, and quick-install workflows, helping engineers plan procurement, reduce lead times, and streamline commissioning across projects.
Plan for 68.75 inches of length, 22 inches of width, and 8 inches of height with a total weight around 350 lb. Ensure front access for maintenance and adequate space for wiring terminations and top-feed connections. Consider room for future expansion and proximity to feeders to minimize run lengths and voltage drop.
