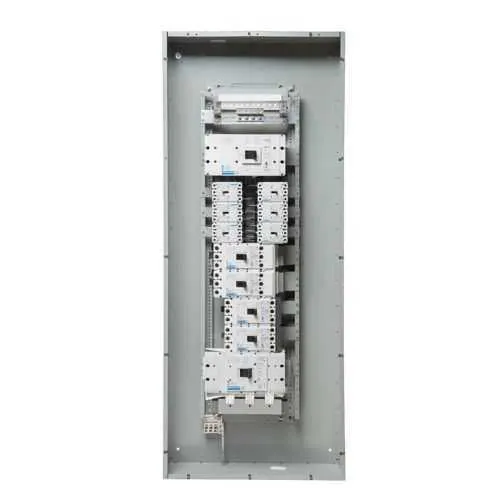

Eaton PRL4X3873B00C1S Panelboard - UL 67, 800A
Part Number: PRL4X3873B00C1S
Quick Summary
Eaton Pow-R-Xpress PRL4X panelboard is a high-capacity power distribution solution designed for industrial facilities. For engineers and maintenance teams, wiring complexity and long lead times are common pain points that slow projects and raise costs; this panel consolidates feeders and simplifies service during upgrades. UL 67 certification and a NEMA 1 enclosure provide safety and indoor protection, while the three-phase copper bus delivers reliability in demanding environments. With 208/120V operation and an 800A rating, PRL4X3873B00C1S scales to growing electrical demands, and its Pow-R-Xpress compatibility supports faster stocking and installation, reducing downtime and total cost of ownership.
Product Information
Extended Description
PRL4X3873B00C1S Eaton: EATON POW-R-XPRESS PRL4X INTERIOR ASSY 208/120V 800A CUAG MCB SE
Product Name
Eaton Pow-R-Xpress PRL4X panelboard
Catalog Number
PRL4X3873B00C1S
UPC
786689867720
Product Length/Depth
50.25 in
Product Height
8 in
Product Width
22 in
Product Weight
350 lb
Certifications
UL 67
Bus material
Copper
Feed type
Top
Material
COPPER
Phase
Three-phase
Type
PRL4X INTERIOR
Wire size
(2) 500-750 kcmil
Amperage Rating
800A
Bus Rating
800 A
Circuit breaker rating
800
Current - max
800
NEMA rating
1
Voltage - max
208/120
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Feature: 800A amperage and bus rating. Business Impact: Supports large industrial loads with minimal panel count, reducing space and wiring complexity. Application: manufacturing lines and facilities upgrading to higher demand power distribution. Feature: Copper bus material and high-conductor capacity (2) 500-750 kcmil. Business Impact: Lower voltage drop, improved thermal performance, and robust terminations for long-term reliability. Application: motor drives and heavy equipment feeds where efficiency matters. Feature: Top-feed design with interior assembly. Business Impact: Faster, safer installation and easier field service in tight electrical rooms. Application: retrofit projects and new builds in compact spaces. Feature: Physical dimensions and weight (50.25 in L, 22 in W, 8 in H, 350 lb). Business Impact: Predictable footprint for panel mounting and structural planning; simpler rigging and leveling during installation. Application: data centers, process plants, and facilities with fixed installation envelopes. Feature: Certifications and enclosure rating UL 67 and NEMA 1. Business Impact: Compliance with stringent safety standards and reliable indoor protection; reduces regulatory risk. Application: regulated industrial environments and commercial facilities requiring durable enclosures. Feature: Compatibility with Pow-R-Xpress stocking program and 208/120V three-phase operation. Business Impact: Accelerates procurement cycles and waste-reducing stock management while ensuring fast deployment. Application: large-scale projects and multi-site rollouts across manufacturing and distribution networks.
Get a Quick Quote for a Eaton PRL4X3873B00C1S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL4X3873B00C1S?
Enquire Now
FAQs
The PRL4X3873B00C1S is a top-feed interior panelboard designed for indoor installations. Plan for a 50.25 inch length, 22 inch width, and 8 inch height footprint, with a 350 lb weight. Ensure adequate clearance for service access, allow for copper conductor terminations up to (2) 500-750 kcmil, and verify 208/120V three-phase compatibility with downstream equipment.
This panelboard accepts (2) 500-750 kcmil conductors, enabling large feeder connections with low resistance. Proper termination requires caliper-compatible lugs and torque procedures per UL 67 guidelines. The copper bus construction improves conductivity and reduces voltage drop, supporting reliable operation of high-current loads up to 800A.
Yes, the PRL4X3873B00C1S carries UL 67 certification, aligning with standard safety requirements for panelboards. It is configured with a NEMA 1 enclosure, suitable for indoor, dry environments where protection against dust and incidental contact is needed.
Ideal for industrial facilities with substantial power needs, including manufacturing lines, data centers, and process plants. Its 800A rating and three-phase design support large motor loads and equipment feeds, while its compact interior assembly enables easier integration in space-constrained rooms.
The interior PRL4X3873B00C1S simplifies field service with accessible terminations and a robust copper bus path, reducing maintenance time. Its UL 67/NEMA 1 compliance lowers regulatory risk, while higher efficiency and reduced wiring complexity contribute to lower total cost of ownership over the system’s life cycle.
