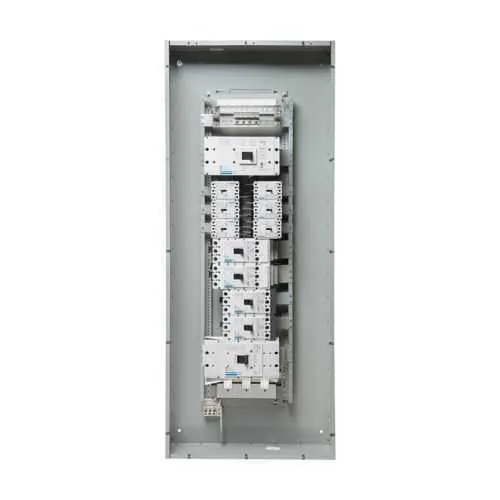

Eaton PRXKPRL4X12 Pow-R-Xpress Panelboard - UL 67
Part Number: PRXKPRL4X12
Quick Summary
Pow-R-Xpress panelboard from Eaton provides compact, field-configurable power distribution for interior electrical installations. Engineers often struggle with space constraints, wiring complexity, and compliance hurdles when upgrading panels. This unit is UL 67 certified and uses copper conductors to support safe, reliable operation in interior environments. Designed to integrate with Eaton's Pow-R-Xpress family, it delivers fast installation, scalable configurations, and predictable lifecycle costs for modern facilities. By focusing on compact size and high-quality connectors, it helps reduce overall cabinet depth while maintaining performance and compliance across industrial applications. This combination supports faster project turnover and clearer procurement paths for electrical teams.
Product Information
Extended Description
PRXKPRL4X12 Eaton: EATON POW-R-XPRESS PRL4X ASSY PD2 A/C PH 1 POLE TWIN BRANCH BREAKER CONNECTORS CU
Product Name
Eaton Pow-R-Xpress PRL4X panelboard
Catalog Number
PRXKPRL4X12
UPC
786689814595
Product Length/Depth
23.7 in
Product Height
2.6 in
Product Width
7.3 in
Product Weight
4.5 lb
Certifications
UL 67
Material
COPPER
Number Of Poles
Single-pole
Type
BRANCH BREAKER CONNECTORS
Used with
INTERIORS
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Feature: Compact footprint with 23.7 in length, 2.6 in height, and 7.3 in width. Business Impact: Fits into tight interior spaces, reduces cabinet depth, and simplifies enclosure design. Application: Ideal for interior panel installations in control rooms and machine zones. Feature: Copper construction and single-pole twin branch breaker connectors. Business Impact: Lower electrical resistance, improved current carrying capacity, and durable long-term operation. Application: Interior panelboards requiring reliable, low-impedance connections. Feature: UL 67 certification. Business Impact: Ensures compliance with safety standards, streamlines audits, and supports regulatory approvals. Application: Industrial facilities needing UL-labeled interior panel solutions. Feature: Interoperability with Pow-R-Xpress family. Business Impact: Simplifies procurement, enables quicker upgrades, and reduces design risk. Application: Retrofit projects and new installs within Eaton ecosystems. Feature: Lightweight design at 4.5 lb. Business Impact: Easier handling, faster site installs, and reduced labor costs. Application: Interior field installations and compact control panels. Feature: Interior-use readiness (interiors). Business Impact: Optimized for cabinet environments, minimizing enclosure modification. Application: Control panels, machine interiors, and interior power distribution.
Get a Quick Quote for a Eaton PRXKPRL4X12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRXKPRL4X12?
Enquire Now
FAQs
PRXKPRL4X12 is engineered for interior panel installations in machine rooms, control panels, and cabinet interiors where space is limited. It leverages compact dimensions and copper branch connectors to simplify wiring and reduce enclosure depth. The design aligns with the Pow-R-Xpress family for consistent engineering practices and dependable performance.
Key metrics include a length of 23.7 inches, height of 2.6 inches, and width of 7.3 inches, with an item weight of 4.5 pounds. The unit uses COPPER, supports single-pole branch connections, and carries catalog number PRXKPRL4X12. These dimensions support tight interior deployments and straightforward mounting in control panels.
Yes. The PRXKPRL4X12 is specified with BRANCH BREAKER CONNECTORS and COPPER construction, designed to deliver reliable continuity and reduced resistance for interior power distribution. Its single-pole configuration remains compatible with interior control panel layouts while offering robust connection integrity for critical circuits.
UL 67 certification validates safety and performance for panelboards used in interior electrical installations. This designation helps ensure compliance with regional electrical codes, supports safer commissioning, and reduces the risk of non-conformance during inspections or audits in industrial facilities.
The panelboard’s compact footprint and copper branch connectors reduce installation time and wiring complexity, cutting labor costs. UL 67 certification adds assurance, potentially lowering inspection-related delays. Its compatibility with the Pow-R-Xpress family enables easier future upgrades, driving lower lifecycle costs and improved system reliability in interior power distribution.
