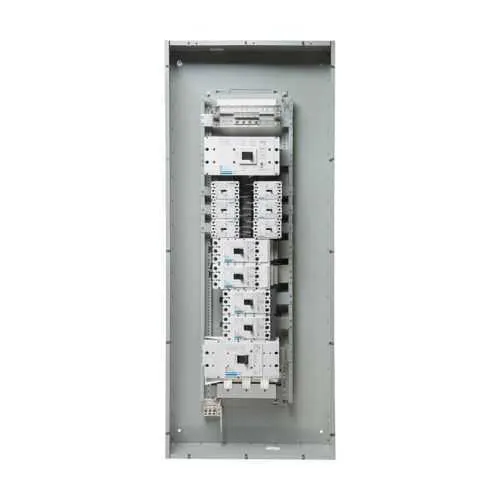

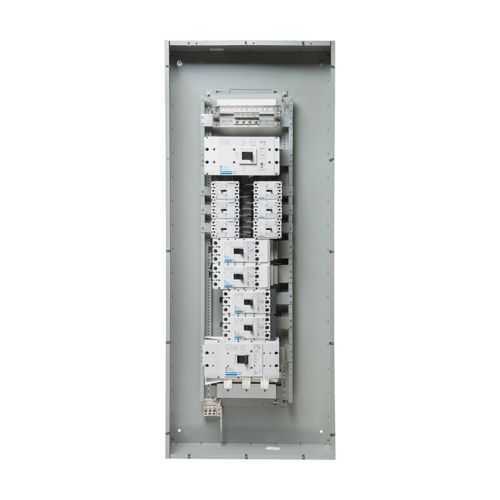

Eaton Pow-R-Xpress PRL4X336 Panelboard - UL 67
Part Number: PRXKPRL4X336
Quick Summary
The Eaton Pow-R-Xpress PRL4X336 panelboard provides compact, reliable power distribution for interior industrial control cabinets and panel assemblies. Engineers struggle with tight spaces, wiring complexity, and downtime during upgrades; this design offers streamlined wiring paths, modular connectors, and faster installation. UL 67 certification underscores safety and compliance for interior applications, while copper conductors deliver low resistance and robust thermal performance. By aligning with the Pow-R-Line Xpert family, it enables scalable expansion, predictable maintenance intervals, and improved overall equipment effectiveness in automation environments. This translates to reduced field labor, fewer outages, and greater uptime for manufacturing lines.
Product Information
Extended Description
PRXKPRL4X336 Eaton: EATON POW-R-XPRESS PRL4X ASSY PD3 600A SINGLE BRANCH BREAKER CONNECTORS CU
Product Name
Eaton Pow-R-Xpress PRL4X panelboard
Catalog Number
PRXKPRL4X336
UPC
786689814649
Product Length/Depth
23.9 in
Product Height
2.5 in
Product Width
7.3 in
Product Weight
10.6 lb
Certifications
UL 67
Material
COPPER
Number Of Poles
Three-pole
Type
BRANCH BREAKER CONNECTORS
Used with
INTERIORS
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Feature: Compact form factor with a length of 23.9 in, height of 2.5 in, and width of 7.3 in; Business Impact: Reduces cabinet footprint and enables easier fitment in constrained control enclosures; Application: Ideal for interior panelboards in mid-size automation cabinets where space is at a premium. Feature: Three-pole copper construction and BRANCH BREAKER CONNECTORS; Business Impact: Low impedance paths, better heat dissipation, and reliable terminations under load; Application: Three-phase distribution in compact interior assemblies. Feature: UL 67 certified panelboard; Business Impact: Compliance with recognized safety standards reduces audit risk and accelerates approvals; Application: Interior power distribution in industrial environments with strict safety requirements. Feature: Interior-use compatibility with INTERIORS; Business Impact: Streamlined integration with existing interior layouts and minimal enclosure modifications; Application: Retrofit or new installations within machine rooms and control panels. Feature: Broad compatibility with Pow-R-Xpress stocking program materials; Business Impact: Shorter lead times, improved procurement planning, and cost control; Application: Maintenance planning and large-scale rollouts in manufacturing facilities.
Get a Quick Quote for a Eaton PRXKPRL4X336
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRXKPRL4X336?
Enquire Now
FAQs
Installers should plan for the panelboard’s 23.9 in depth and 7.3 in width within a suitably sized interior cabinet. Use the three-pole copper connectors for all phase terminations, ensuring solid, low-impedance connections. Follow UL 67 guidelines, secure the unit to the internal rack or backplane, and route wiring via the provided pathways to minimize heat buildup and maintenance access issues.
The PRXKPRL4X336 carries UL 67 certification, confirming safety for interior panelboard assemblies. This helps simplify regulatory approvals for many North American projects and supports ongoing compliance during audits. For regions outside the US, verify regional standards such as CE or IP ratings as applicable to your site requirements.
Yes. The PRXKPRL4X336 is designed to integrate with Eaton’s Pow-R-Xpress stocking program, which supports faster procurement and project readiness. This compatibility helps reduce lead times, streamline component sourcing for interior panelboards, and simplify project costing for OEMs and facilities teams.
This panelboard is best suited for interior power distribution in control cabinets and machine rooms. Its three-pole copper connectors and compact form factor make it ideal for space-constrained enclosures, modular automation architectures, and retrofit projects where reliable, UL 67‑listed interior panel distribution is required for low-voltage systems.
Expect improved maintenance predictability from a robust copper terminations design and easy access for routine checks. The compact size reduces cabinet footprint and wiring complexity, lowering labor costs during installs and upgrades. Over the product lifecycle, this translates to shorter downtime, fewer corrective actions, and a lower total cost of ownership for interior distribution in automation environments.
