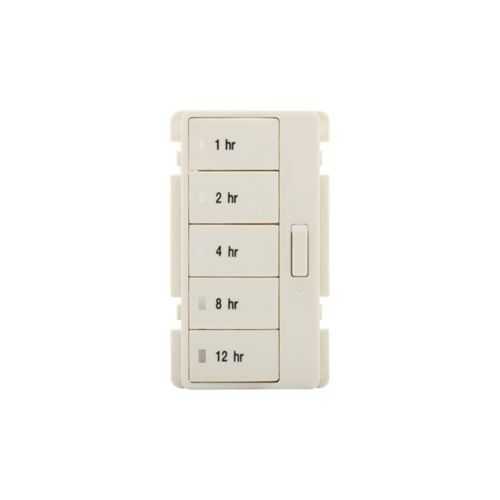

Eaton PT1HK-LA-P Hour Timer Color Change Kit - Aspire 1,2,4
Part Number: PT1HK-LA-P
Quick Summary
Eaton PT1HK-LA-P hour timer color change kit is a modular accessory that enables quick faceplate customization for Aspire hour timers. Engineers often face downtime trying to match equipment branding or hazard indicators, and this kit helps eliminate that delay. Certification considerations in regulated settings include CE, IP ratings, and SIL readiness; verify with Eaton’s datasheets as certifications are listed as “Contact Manufacturer” for this kit. By enabling branding consistency and easy maintenance, the kit delivers practical value for panel builders, service teams, and manufacturing operations, while supporting efficient procurement and lifecycle management for automation projects.
Product Information
Extended Description
PT1HK-LA-P Eaton: Eaton hour timer color change kit 1, Aspire hour timer (1, 2, 4, 8, 12), Light almond
Product Name
Eaton hour timer color change kit 1
Catalog Number
PT1HK-LA-P
UPC
032664721106
Product Length/Depth
2.25 in
Product Height
4.38 in
Product Width
2.88 in
Product Weight
1 lb
Certifications
Contact Manufacturer
Special features
Aspire hour timer (1, 2, 4, 8, 12)
Type
Color change kit 1
Color
Light almond
How to change the faceplate color on your Eaton timer
Eaton Specification Sheet - PT1HK-LA-P
Eaton Specification Sheet - PT1HK-LA-P
Feature → Business Impact → Application: Color-change capability lets you swap faceplates without replacing the timer body, reducing downtime and maintenance costs while preserving the original wiring and mounting footprint in control panels. This supports faster field changes during rebranding or hazard-area labeling, improving operator clarity and regulatory compliance in process lines. Feature → Business Impact → Application: Compatible with Aspire hour timer modes (1, 2, 4, 8, 12) provides flexible timing configurations for different applications; enables standardization across machines while accommodating evolving process requirements. Application: Ideal for batch and continuous processes that require quick timer visibility adjustments in packaging, motion control, and line startup sequences. Feature → Business Impact → Application: Compact dimensions (2.25 in depth, 4.38 in height, 2.88 in width) and 1 lb weight simplify panel planning and mounting; reduces enclosure crowding and supports retrofit projects with minimal enclosure modification. Application: Suitable for retrofit upgrades in legacy panels or new installations with tight panel space. Feature → Business Impact → Application: Manufacturer-provided documentation and installation resources, including how-to videos and datasheets, shorten training time and improve QA outcomes; supports procurement teams with validated specifications. Application: Scales from engineering design through field deployment with lower risk. Feature → Business Impact → Application: Light almond color option enables aesthetic alignment with cabin panels and branding colors; enhances operator recognition and reduces human error in critical processes. Application: Useful in industrial environments where color-coding supports safety and efficiency.
Get a Quick Quote for a Eaton PT1HK-LA-P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PT1HK-LA-P?
Enquire Now
FAQs
To install, power down the panel, remove the existing timer faceplate, align the PT1HK-LA-P kit with the timer body, and attach the color-changing faceplate as directed by the included Eaton installation guide. Reattach wiring if needed and test the timer to ensure proper visibility. For a visual walkthrough, consult the how-to video linked in the downloads section.
This kit is designed for the Aspire hour timer family operating in configurations of 1, 2, 4, 8, and 12 hours. It may not be compatible with non-Aspire timer variants. Always verify compatibility with Eaton’s official specification sheets (PT1HK-LA-P) before procurement or retrofit.
The color change kit adheres to a compact footprint with a depth of 2.25 inches, height of 4.38 inches, and a width of 2.88 inches, and it weighs 1 pound. These specs help engineers plan enclosure space, mounting hardware, and cable routing during panel design or retrofits.
Certification details for this kit are listed by the manufacturer as 'Contact Manufacturer.' In regulated environments, verify CE marking, IP ratings, and SIL considerations through Eaton’s official datasheets and the PT1HK-LA-P product page to ensure compliance before deployment.
Using the PT1HK-LA-P kit reduces downtime by enabling rapid cosmetic changes without replacing the timer body, supports branding consistency across lines, and improves operator clarity—leading to lower error rates and faster changeovers. It also simplifies maintenance inventory by keeping the existing timer while only updating the faceplate.
