Eaton PV-315A-2XL Photovoltaic Fuse - UL 2579
Part Number: PV-315A-2XL
Quick Summary
Eaton Bussmann photovoltaic fuses provide fast-acting protection for photovoltaic arrays and solar DC circuits used in utility-scale and commercial installations. Engineers often contend with nuisance trips, slow fault isolation, and the challenge of selecting fuses that tolerate DC transients without compromising safety. This PV-315A-2XL fuse meets stringent PV-specific requirements with a 315 A amperage rating, 1000 Vdc voltage rating, and a robust gPV class construction, while offering a top fuse status indicator for quick visual checks. It carries UL 2579 and IEC ratings, along with CSA certification, supporting compliant PV protection across global projects. By combining reliable performance with straightforward installation and a known SD2XL-S-PV base compatibility, this device translates into reduced downtime and lower operational risk.
Product Information
Extended Description

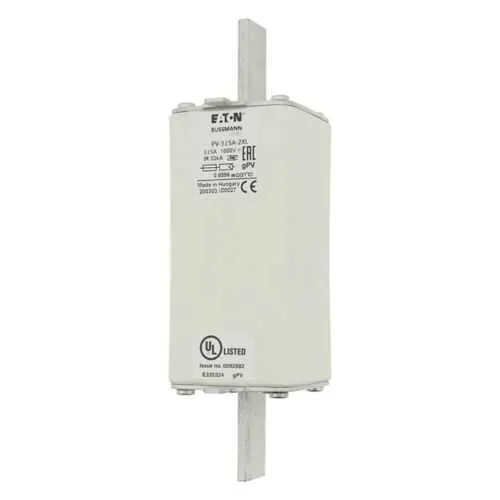

PV-315A-2XL Eaton: Eaton Bussmann series Fuse-link, high speed, 315 A, DC 1000 V, 2XL, 60 x 205 mm, gPV, UL, IEC, with indicator, blade connections
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-315A-2XL
UPC
051712372138
EAN
5996516000434
Product Length/Depth
60 mm
Product Height
205 mm
Product Width
71 mm
Product Weight
1362.137 g
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
UL 2579 CSA Certified IEC Rated CCC pending
Amperage Rating
315 A
Voltage rating
1000 Vdc
Interrupt rating
33 kAIC
Class
Class gPV
Pre arc (I2T)
17600
Watt losses
75 W
Application
Photovoltaic array combiners and disconnects
Fuse type
PV-2XL
Fuse indicator
Top fuse status indicator
Fuse size
2XL
Fitted with:
Blade without bolt holes
Suitable for
SD2XL-S-PV XL Fuse base
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
CE Square-bodied PV fuse-links
CE Square-bodied PV fuse-links
Eaton Bussmann - Products for sustainable energy
10201 XL PV fuses
