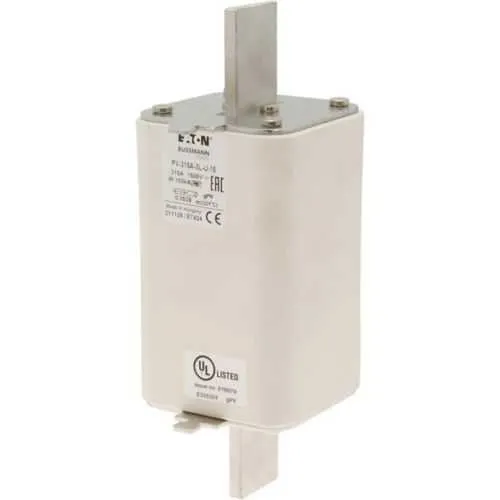

Eaton PV-315A-3L-U-15 PV Fuse - 100 kAIC
Part Number: PV-315A-3L-U-15
Quick Summary
The Eaton PV-315A-3L-U-15 PV fuse provides fast overcurrent protection for photovoltaic systems and inverters. Engineers often struggle with selecting fuses that withstand DC PV voltages while avoiding nuisance tripping. This model carries IEC 60269, UL Listed and CSA Certified ratings, plus CE RoHS compliance, ensuring reliability across global solar deployments. Designed for integration with SD3L-S-PV XL fuse bases, it supports streamlined maintenance and scalable PV protection strategies.
Product Information
Extended Description
PV-315A-3L-U-15 Eaton: Eaton Bussmann series Fuse-link, high speed, 315 A, DC 1500 V, 3L, 75 x 91 x 205 mm, gPV, IEC, UL, no indicator, blade connections
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-315A-3L-U-15
EAN
5996516002629
Product Length/Depth
217 mm
Product Height
82 mm
Product Width
94 mm
Product Weight
1921 g
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed CSA Certified
Amperage Rating
315 A
Voltage rating
1500 Vdc
Interrupt rating
100 kAIC
Class
Class gPV
Pre arc (I2T)
150000
Watt losses
52 W
Application
Photovoltiac systems, inverters ,Photovoltaic array combiners and disconnects
Fuse type
PV-3L-U-15
Fuse indicator
Top fuse status indicator
Fuse size
3L
Fitted with:
Blade without bolt holes
Suitable for
SD3L-S-PV XL Fuse base
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
CE Square-bodied PV fuse-links
CE Square-bodied PV fuse-links
Eaton Bussmann - Products for sustainable energy
10201 XL PV fuses
High-speed PV fuse with 315 A rating delivers rapid interruption at 1500 Vdc, reducing arc energy and protecting both modules and inverters, which translates to lower repair costs and less downtime. The device’s Class gPV designation supports safe DC protection in solar installations, while its 100 kAIC interrupt rating provides a robust safety margin for fault events in utility-scale strings. A top fuse status indicator enables quick verification during routine checks, minimizing on-site time and labor costs. The 217 mm length and blade-only connections simplify mounting and retrofit into existing SD3L-S-PV XL fuse bases, improving installation efficiency. With 52 W watt losses, thermal performance stays predictable, preserving overall system efficiency. CE RoHS, IEC 60269, UL Listed, and CSA Certified certifications reinforce compliance across markets.
Get a Quick Quote for a Eaton PV-315A-3L-U-15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV-315A-3L-U-15?
Enquire Now
FAQs
PV-315A-3L-U-15 is compatible with the SD3L-S-PV XL Fuse base and uses blade connections (no bolt holes). This combination simplifies retrofit projects, reduces installation time, and provides secure, vibration-resistant mounting for outdoor DC protection in PV arrays and inverter inputs.
The fuse is rated for 315 A with a 1500 Vdc voltage rating and 100 kAIC interrupt capacity. It features a 3L size, Class gPV designation for PV-specific DC protection, and a Pre-arc I2T value of 150000. These ratings ensure fast fault interruption while maintaining system reliability in high-current, high-voltage PV configurations.
Yes. The 315 A / 1500 Vdc rating, together with 100 kAIC interrupt capability and gPV class, makes it suitable for large-scale PV inverters and PV array disconnects. Its compatibility with SD3L-S-PV XL bases and low heat dissipation support durable operation in dense DC strings without excessive voltage drop or nuisance trips.
This fuse is IEC 60269 compliant and UL Listed, with CSA Certification and CE RoHS compliance. These certifications help satisfy regulatory and safety requirements across North American and European markets, facilitating site approvals and supplier audits for solar projects.
The top fuse status indicator enables quick status checks, reducing maintenance time. With 52 W watt losses and reliable DC protection, you gain improved energy efficiency and longer component life, lowering lifecycle costs. Quick installation, robust fault isolation, and compatibility with existing fuse bases also contribute to faster project deployment and stronger ROI.
