Eaton PV-32A14F PV Fuse - UL Listed 1000V DC
Part Number: PV-32A14F
Quick Summary
Eaton Bussmann series photovoltaic fuses protect solar arrays by interrupting faults in PV strings. Engineers often struggle to select fuses that tolerate high DC voltages, fit compact enclosures, and minimize arc energy during faults. This device is UL Listed and IEC rated, with CCC pending, offering regulatory alignment for both North American and global installations. Designed for photovoltaic strings, it helps reduce downtime and maintain system performance, while leveraging CHPV14 compatibility and modular installation to streamline panel-level protection.
Product Information
Extended Description

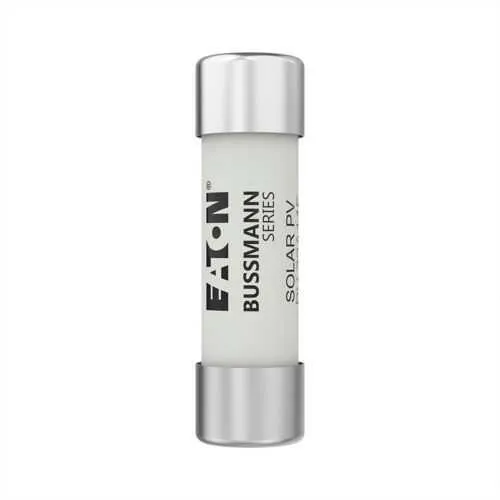

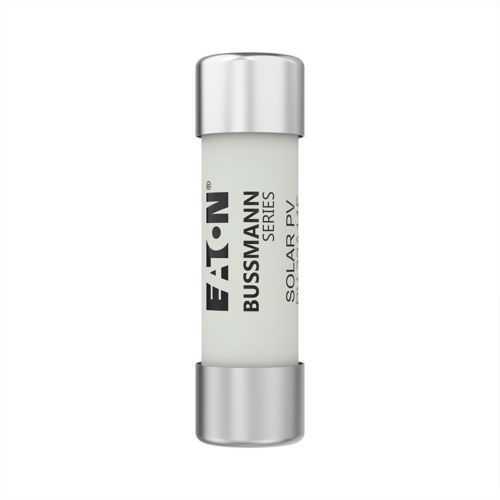

PV-32A14F Eaton: Eaton Bussmann series photovoltaic fuses, 32A, 30 kAIC, Non Indicating, Fuse
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-32A14F
Model Code
32A 1000V DC SOLAR FERRULE FUSE
UPC
051712377225
EAN
5027590506052
Product Length/Depth
51 mm
Product Height
15 mm
Product Width
15 mm
Product Weight
21.5 g
Warranty
Not Applicable
Certifications
UL Listed IEC Rated CCC pending
Amperage Rating
32 A
Voltage rating
1000 Vdc
Interrupt rating
10 kAIC 30 kAIC
Class
Class gPV
Pre arc (I2T)
120
Watt losses
6.2 W
Application
Photovoltaic strings
Fuse type
PV-A14F
Fuse indicator
Other
Fuse size
14 x 51 mm
Suitable for
CHPV14 Modular fuse holder
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
DA-DC-00005064.pdf
DA-DC-00005064.pdf
Eaton Bussmann - Products for sustainable energy
720132 14x51 mm PV fuselinks
Feature: 32 A, 1000 Vdc rating with a 10 kAIC / 30 kAIC interrupt capability. Business Impact: Provides robust fault interruption for high-energy PV circuits, improving safety and protecting inverters and wiring. Application: Ideal for solar string protection in rooftop and small utility-scale installations. Feature: Non Indicating design. Business Impact: Reduces visual clutter on PV field layouts while maintaining reliable protection. Application: Suitable where status indication is handled by separate monitoring hardware. Feature: Compact 14 x 51 mm form factor (51 mm length, 15 mm width and height). Business Impact: Easier fit in tight junction boxes and dense string enclosures, lowering installation time and cabinet costs. Application: Common in modular PV fuse setups. Feature: Compatible with CHPV14 Modular fuse holder. Business Impact: Streamlines field replacement and maintenance with standardized mounting. Application: Facilitates plug-in protection for PV strings in modular arrays. Feature: Watt losses of 6.2 W. Business Impact: Predictable heat dissipation improves thermal management and reduces cooling needs in compact arrays. Application: Useful in design calculations for enclosure thermal performance. Feature: Certifications include UL Listed and IEC Rated (CCC pending). Business Impact: Ensures regulatory compliance across markets, supporting safe procurement and faster approvals. Application: Critical for global solar projects with strict supply chain standards.
Get a Quick Quote for a Eaton PV-32A14F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV-32A14F?
Enquire Now
FAQs
PV-32A14F is designed for direct compatibility with the CHPV14 modular fuse holder, enabling quick plug-in protection for PV strings. This reduces on-site wiring complexity and service time, while maintaining secure electrical connections and consistent protection across string sections.
The PV-32A14F is rated for 32 A at 1000 V DC, with an interrupt rating of 10 kAIC (and 30 kAIC in higher fault scenarios). It features a PV-class fuse type (PV-A14F) and a Pre-arc I2T of 120, delivering reliable response in PV string fault events.
Yes. It is specifically designed for photovoltaic strings and provides UL Listed, IEC rated protection for DC solar circuits. Its 1000 Vdc rating and modular compatibility make it suitable for both rooftop arrays and small to mid-size utility-scale projects, with CCC pending in some markets.
The fuse measures 14 x 51 mm (length 51 mm, width 15 mm, height 15 mm) and weighs about 21.5 g. It is non-indicating, which suits dense installations where visual indicators are managed by other equipment, and it aligns with CHPV14 holders for straightforward mounting.
PV-32A14F ships with UL Listed and IEC rated certifications, with CCC pending where applicable. Technical datasheets and catalogs are available, including the 14x51 mm PV fuselinks data sheet and related declarations of conformity to support compliance and procurement processes.
